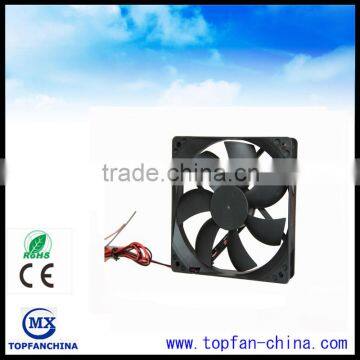

12V 24V DC brushless fan 120x120x25 with high temperature

FOB Price

US$ 2 - 5 / Piece

1000 Pieces(Min. Order)

Port shenzhen

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Electric Current Type	DC	Mounting	Other, Cooling fan
Blade Material	Plastic	Place of Origin	Guangdong, China
Brand Name	topfan	Model Number	YM4812PTB1
Voltage	48V	Power	4.32W
Air Volume	74.06CFM	Speed	2200RPM
Certification	CE, ROHS, UL, CE, UL, ROHS

Product Description

12V 24V DC brushless fan 120x120x25

General Specification:

Frame	Plastic
Impeller	Plastic
Bearing Type	Sleeve Bearing & Dual Ball Bearing
Leadwire	UL1007AWG#24 or Equivalent (+): Red (-): Black
Motor	Impedance Protected and Reverse Polarity Protected

Major Characteristic Parameters:

Model	Rated voltag(V)	Operating Voltage Range (V)	Current amp(A)	Rated Input Power(W)	Speed (rpm)	Max air Flow(CFM)	Max Static Pressure(Inch-H2o)	Noise Level(dB-A)	Weight(g)
YM1212PTS(B)1	12	7.0 to 13.8	0.22	2.64	2200	74.06	0.2	40	140
YM1212PTS(B)2	12	7.0 to 13.8	0.18	2.16	2000	67.33	0.16	36	140
YM1212PTS(B)3	12	7.0 to 13.8	0.14	1.68	1800	60.6	0.14	32	140
YM2412PTS(B)1	24	14.0 to 27.6	0.1	2.4	2200	74.06	0.2	40	140
YM2412PTS(B)2	24	14.0 to 27.6	0.08	1.92	2000	67.33	0.16	36	140
YM2412PTS(B)3	24	14.0 to 27.6	0.06	1.44	1800	60.6	0.14	32	140
YM4812PTB1	48	28.0 to 56.0	0.09	4.32	2200	74.06	0.2	40	140
YM4812PTB2	48	28.0 to 56.0	0.07	3.36	2000	67.33	0.16	36	140
YM4812PTB3	48	28.0 to 56.0	0.05	2.4	1800	60.6	0.14	32	140

Expected life:

Ball Bearing 50,000 hours(40°C)

Sleeve Bearing 30,000 hours(40°C)

Allowable Ambient Temperature Range:

-10°C~+70°C (Operating)

-40°C~+70°C (Storage)

(non-condensing environment)

Certifications:

Web:

Alibaba: http://topfan-china.en.china.cn

Shenzhen Topfan Technology Development Co., Ltd. is a high-tech enterprise, professionally engaged in the R&D and production of brushless DC fans. Our company covers 8000 square meters, with an annual output of 5 million sets of fans.
After 10 years of development, we have developed a full range of axial fans with sizes from 20mm to 250mm. Our products are widely used in communication, industrial control, medical, home appliances, consumer electronics, custom power supplies, automobiles and other industries. Furthermore, our products have passed ISO9001, CE, UL, TUV and RoHS certifications.
