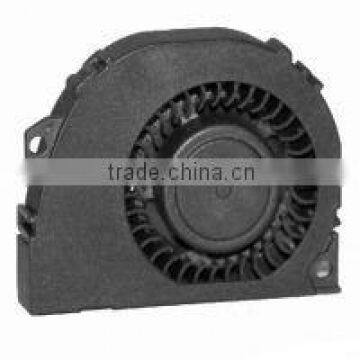

40*52*10mm turbo exhaust fan made in china
USD $2 - $6
/ Piece
500 Pieces(Min.Order)
- 20000 Piece / Pieces per Month
- shenzhen
- T/T
You May Like
Product Details
| Electric Current Type | DC | Blade Material | Plastic | |
| Mounting | Other, cooling fan | Place of Origin | Guangdong, China | |
| Brand Name | YM/OEM/ODM | Model Number | YM1204PFGB1 | |
| Power | 0.96W | Voltage | 12V | |
| Air Volume | 1.76CFM | Speed | 4500RPM | |
| Certification | CE, CCC, UL, ROHS, Other, UL, CE, CE, CCC, UL, ROHS, ISO9000, UL ,CE, RoHS, TUV |
Product Description
Specifications
1.we supply cooling fan,2.motor protection,
3.low noise and long life expectancy,
4.ISO9000, UL ,CE, RoHS, TUV approved.
DC Centrifugal Blower fan 40*52*10mm
Product Description
General Specifications:
Frame | plastic(UL94v-0) |
Impeller | plastic(UL94v-0) |
Bearing type | Sleeve Bearing and Dual Ball Bearing |
Leadwire | UL1571AWG#28 or Equivalent (+):Red(-):Black |
Motor | Impedance Protected and Reverse Polarity Protected |
Expected life:
1.ball bearing 50,000 hours(40 °c)
2.sleeve bearing 30,000 hours(40 °c)
Allowable ambient temperature range:
1.-10°c~+70°c (Operating)
2.-40°c~+70°c (Storage)
3.(non-condensing environment)
Specifications:
| Model | Rated voltage (v) | Operating Voltage Range(v) | Current amp (Amp) | Rated Input Power Watt | Speed (rpm) | Max air Flow(CFM) | Max Static Pressure (Inch-H2o) | Noise Leve (dB-A) | Weight (g) |
| YM0504PFGS(B)1 | 5 | 3.5 to 5.5 | 0.18 | 0.9 | 4500 | 1.76 | 0.19 | 25 | 21 |
| YM0504PFGS(B)2 | 5 | 3.5 to 5.5 | 0.15 | 0.75 | 4000 | 1.59 | 0.17 | 23 | 21 |
| YM1204PFGS(B)1 | 12 | 7.0 to 13.8 | 0.12 | 1.44 | 5500 | 1.98 | 0.21 | 28 | 21 |
| YM1204PFGS(B)2 | 12 | 7.0 to 13.8 | 0.08 | 0.96 | 4500 | 1.76 | 0.19 | 25 | 21 |
| YM2404PFGS(B)1 | 24 | 14.0 to 27.6 | 0.08 | 1.92 | 5500 | 1.98 | 0.21 | 28 | 21 |
| YM2404PFGS(B)2 | 24 | 14.0 to 27.6 | 0.06 | 1.44 | 4500 | 1.76 | 0.19 | 25 | 21 |
