Reversible Fan 12V Axial Cooling Fan 8015
- shenzhen
- T/T
You May Like
Product Details
| Application | Computer Case | Type | Fan | |
| Heatsink Material | Other, plastic | Brand Name | topfan | |
| Model Number | YM1208PHS(B)2 | Place of Origin | Guangdong, China |
Product Description

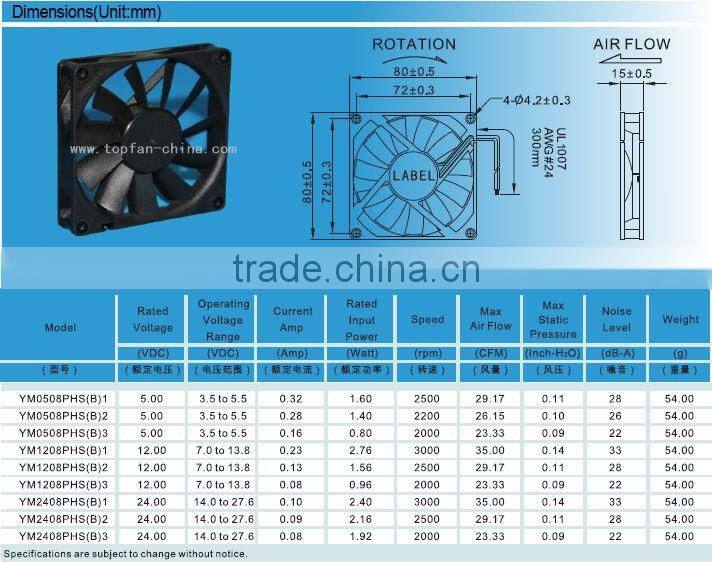

DC Axial Fan 80*80*15mm
General Specifications:
Frame: plastic(UL94v-0)
Impeller: plastic(UL94v-0)
Bearing type: Sleeve Bearing and Dual Ball Bearing
Leadwire: UL007AWG#24 or Equivalent (+):Red(-):Black
Motor: Impedance Protected and Reverse Polarity Protected
Expected Life:
1.Ball Bearing 50,000 hours(40centigrade)
2.Sleeve Bearing 30,000 hours(40centigrade)
Allowable Ambient Temperature Range
1.-10c~+70c (Operating)
2.-40c~+70c (Storage)
3.(non-condensing environment)
Specifications:
1.Size(mm): 80*80*15
2.Model: YM1208PHS(B)1
3.Rated voltage (v) : 5
4.Operating Voltage Range(v) : 7.0 to 13.8
5.Current amp (Amp): 0.23
6.Rated Input Power (Watt): 2.76
7.Speed (rpm) : 3000
8.Max air Flow: 35.00
9.Max Static Pressure (Inch-H2o):0.14
10.Noise Leve (dB-A):33
11.Weight (g): 54.00
