Home > Products > Blower fan > 97*94*33mm 24v dc centrifugal blower fan
97*94*33mm 24v dc centrifugal blower fan
USD $2 - $4
/ Piece
500 Pieces(Min.Order)
- 20000 Piece / Pieces per Month
- shenzhen
You May Like
Product Details
| Electric Current Type | DC | Blade Material | Plastic | |
| Mounting | Other, BLOWER FAN | Place of Origin | Guangdong, China | |
| Brand Name | YM/OEM/ODM | Model Number | YM1209PJB1 | |
| Power | 8.40W | Voltage | 12V | |
| Air Volume | 27.51CFM | Speed | 3700RPM | |
| Certification | CCC, CE, ROHS, UL, Other, UL, CE, CCC, CE, ROHS, UL, ISO9000, UL ,CE, RoHS, TUV |
Product Description
Specifications
we supply cooling fan1. motor protection
2. Ball or sleeve bearing
3. CE,RoHS,UL,TUV passed
4. low noise and long life
97*94*33mm (3.5'')dc centrifugal blower fan
General Specifications:
Frame | plastic(UL94v-0) |
Impeller | plastic(UL94v-0) |
Bearing type | Dual Ball Bearing |
Leadwire | UL1007AWG#24 or Equivalent (+):Red(-):Black |
Motor | Impedance Protected and Reverse Polarity Protected |
Expected life:
1.ball bearing 50,000 hours(40 °c)
2.sleeve bearing 30,000 hours(40 °c)
Specifications:
| Model | Rated voltage (v) | Operating Voltage Range(v) | Current amp (Amp) | Rated Input Power Watt | Speed (rpm) | Max air Flow(CFM) | Max Static Pressure (Inch-H2o) | Noise Leve (dB-A) | Weight (g) |
| YM1209PJB1 | 12 | 7.0 to 13.8 | 0.7 | 8.4 | 3700 | 27.51 | 1.24 | 51 | 164 |
| YM1209PJB2 | 12 | 7.0 to 13.8 | 0.43 | 5.16 | 3200 | 23.6 | 0.88 | 47 | 164 |
| YM2409PJB1 | 24 | 14.0 to 27.6 | 0.32 | 7.68 | 3700 | 27.51 | 1.24 | 51 | 164 |
| YM2409PJB2 | 24 | 14.0 to 27.6 | 0.22 | 5.28 | 3200 | 23.6 | 0.88 | 47 | 164 |

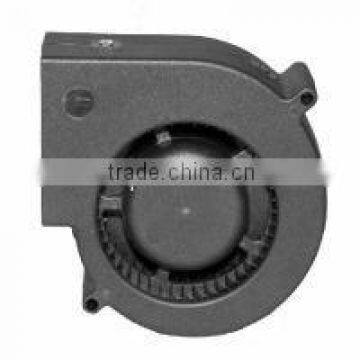

Picture:
