Home > Products > Motherboard > 4 ethernet ports motherboard J1900 fanless J1900 2.5' HDD inboard with BYPASS supported/ High performance Router Motherboard
4 ethernet ports motherboard J1900 fanless J1900 2.5' HDD inboard with BYPASS supported/ High performance Router Motherboard
- 3000 Piece / Pieces per Month
- FOB ShenZhen
- T/T Credit Card PayPal
You May Like
-
Server Motherboard fanless Bay Trial Platform Quad Core J1900 and USB3.0 Fanless Mini ITX 4 LAN Ports Motherboard
-
Intel B75 LGA1155 Firewall mainboard mini itx Motherboard with 6 LAN H67SL
-
Firewall industrial motherboard B75 LGA 1155 Socket Motherboard B75SL with with 6 lan,2*bypass,4*SATA,1*MSATA
-
Intel G41 Firewall Motherboard with 6 gigabit Lan 1U Firewall motherboard
-
Firewall Motherboard G41XE VER:1.1 with bypass function G41 6*rj45 Ethernet Soft Router Mainboard
-
N70SL 6 Intel 82583V Gigia NM70 Chipset Intel1037U 2 COM 6 LAN Firewall Motherboard
Product Details
| Products Status | Stock | Application | Desktop | |
| Chipset Manufacturer | Intel | Form Factor | Mini-ITX | |
| Memory Type | DDR3 | Graphics Card Type | Integrated | |
| Brand Name | INCTEL | Model Number | M9F_B | |
| Place of Origin | Guangdong, China |
Product Description

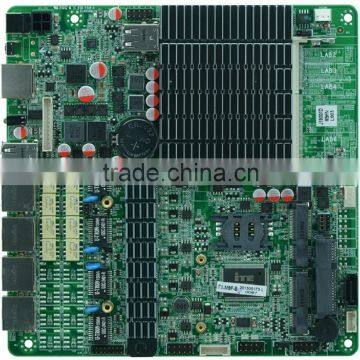

1. M9F_B VER: 1.1 front view
Integrated Intel® J1900 Quad-Core 2.0GHz processor based Intel® Bay trail SOC platform, CPU integrated support DDR3 notebook memory
2. M9F_B VER: 1.1 IO front view
Integrated Intel® HD Graphics graphics core supports VGA display output
3. M9F_B VER: 1.1 IO front view
Integrated four Intel® 82574L Gigabit LAN chip supports a set BYPASS function supports Wake on LAN / PXE function support WIFI / 3G / SSD / 4 USB / 2 x COM
1 * 2.5-inch notebook hard drives can be directly installed hard disk 1 * SATA hard disk interface (2.5-inch hard drive with a second election) board DC power supply
Model No. | ITX-M9F_B VER:1.1 |
Processor | Integrates Intel® Celeron Quad Core J190022nm processor 2.0GHz, compatible with Intel® Bay Trail -I/M/D series CPU |
Chipset | Intel® Bay trail SOC platform, CPU integrates chipset |
Memory | 1* DDR3 SODIMM,supports 1333/1066 MHz , Max. 8GB |
Graphics | Intel® HD Graphics |
Expansion Slot | 1* mSATA slot |
| 1* Mini-PCIE slot (supports WIFI / 3G module) |
Ethernet | 4*Intel 82574L 10/100/1000 Mbps RJ45 interface, supports Wake-On-LAN |
| Supports 1 pair of BYPASS |
Storage | 1* 2.5’ HDD Space,supports HDD inboard 1* SATA (alternative to 2.5’ hard disk ) |
| 1* mSATA slot (supports SSD /USB WIFI) |
Rear I /O | 1* 12V~19V DC JACK input |
| 1* Power switch |
| 1* COM CISCO standard interface |
| 1* LED1(POWER LED/HDD LED) |
| 2* USB(1*USB2.0 ,1*USB3.0) |
| 4* RJ-45 connector |
Internal I/O Connector | 1* VGA (1*12pin) |
| 1* LAN LED(2*8pin) |
| 1* COM |
| 4* USB 2.0 PIN header |
| 1* FP1 header(2*5pin Front panel buttons and indicator connector) |
| 1* ATX 4PIN power connector (for 12V~19V input/output) 1* aviation connector 2PIN(for 12V~19V input/output) |
| 1* PS/2 KB & MS Connector |
| 1* SATA PWR Connector |
| 1* SIM slot |
Fan Connector | 1* CPU Fan , 1* system Fan connector |
GPIO | 4-bit input/output |
BIOS | AMI 32Mb Flash ROM |
Watchdog Timer | System reset ,Programmable L256 , 0 ~ 255 sec/min |
Power Type | Single voltage 12V~19V DC Input |
Operating Temp. | -10°C~ 60°C |
No-Operating Temp. | -20°C~ 70°C |
Humidity | 5-95% (relative humidity; non-condensing) |
Dimension | 170mm x 170mm |
