ITX -N29 Baytrail Motherboard with Lan Quad Core Mainboard J1900,J1900 nano itx motherboard OEM

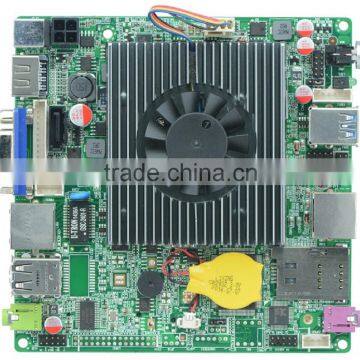

1. ITX-N29 front view
          The latest Bay Trail platform integrated Intel® Celeron J1900 4-core 4 thread CPU frequency up to 2Ghz maximum pulse frequency of up to 2.4Ghz

2. ITX-N29 motherboard side view
       Dual ball bearing cooling fan, high-grade ball bearings running the ball along the rotation since they are low-friction ball so small fan noise, double ball bearing ball bearing live longer than single features, "research domain IPC" The launch of this motherboard with intelligent temperature control function in the motherboard BIOS set the fan to run free inside temperature and speed, the factory default is 50 degrees corresponding to the speed of 900 rev / min, up to 70 degrees when the fan runs at full speed 3500 rpm / min.

3.   ITX-N29 motherboard side view

4. ITX-N29 motherboard side

        3G card slot appears to solve the difficulties of using the network in a particular field environment issues to facilitate simple and practical. USB 3.0 interface greatly improves the speed of data exchange between two devices compared to USB 2.0 interface bandwidth up to 5Gbps full duplex mode and USB 2.0 is 480Mbps half duplex mode to 1GB of data, for example using USB3.0 transfer requires only 13 seconds, USB 2.0 transfer 1GB of data to 43 seconds. In actual use, there is often a USB device and often can not recognize the phenomenon of instability, this happens more often is because of insufficient power supply capacity USB 2.0 interface and cause, in the USB 3.0 interface, power supply capacity of 1A while USB 2.0 only 0.5 a, in addition to considerable upgrade USB 3.0 also backward compatible with USB 2.0 devices in terms of performance.

5. ITX-N29 rear view
        The above components in the selection "research domain IPC" chosen often in military-grade tantalum capacitor products, since no electrolyte tantalum capacitors inside this material is very suitable for work in a high temperature environment, wide operating temperature range and form diversity is good and has a long life and reliability of the volumetric efficiency, so it is suitable for small motherboards and other products used.

6. ITX-N29 side view
         Now we see the board on the back of the picture there are two MINIPCIE design interface, which complies with the Intel agreement to install a full height of the SSD, another full-height of WIFI module or 3G module (choose between a half high module can Gato sheet used). With the motherboard watchdog, calls on, wake on LAN, and other three functions make this product in the practical application of effective conservation of human and material resources significantly reduce the cost of all walks of life.
