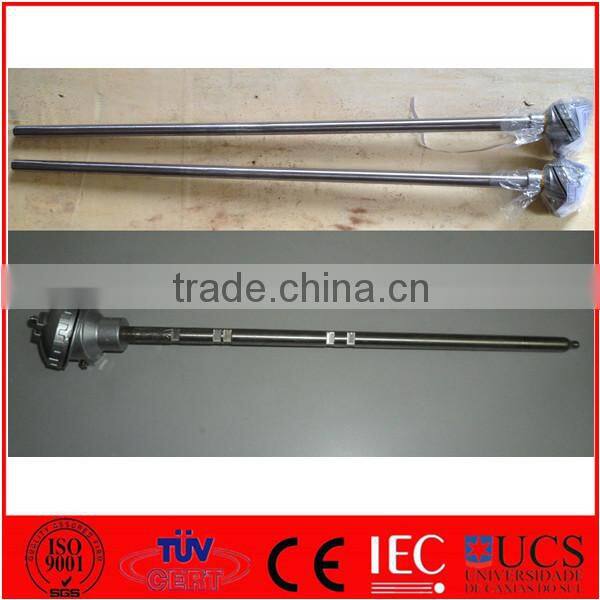

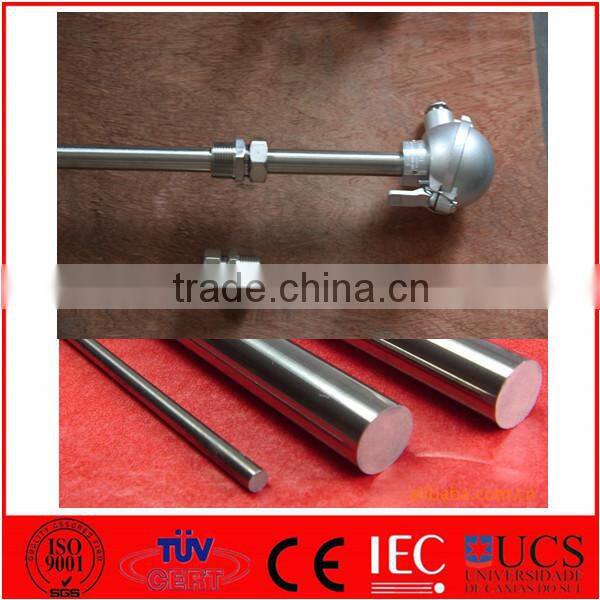

High Temperature Thermocouple
- Shanghai
- Credit Card
You May Like
Product Details
| Place of Origin | Chongqing, China | Brand Name | thermocouple | |
| Model Number | WRNKT | Usage | Industrial | |
| Theory | Temperature Sensor | Accuracy | class I | |
| Temperature Range | o to 1300 |
Product Description
wearable thermocouple for cement plant
1. cement thermocouple and rtd sensor:
It is specially designed for power station to measure temperature for 30KW,60KW power-generating set and concerned equipments .It is used to directly measure the temperature of liquid .vapor,gas and solid surface ranging from-200 degree celsius to 800 degree celsius during production process.
2. Thermocouple Mearsuring Range & Tolerance
Type |
Graduation | Tolerance Class | |||
l | ll | ||||
Tolerance Value | Measuring range°C | Tolerance Value | Measuring range°C | ||
WRN | K | ±1.5°C | -40~+375 | ±2.5°C | -40~+333 |
±0.004ltl | 375~1000 | ±0.0075ltl | 333~1300 | ||
WRE | E | ±1.5°C | -40~+375 | ±1.5°C | -40~+333 |
±0.004ltl | 375~800 | ±0.0075ltl | 333~900 | ||
3.RTD Thermal resistance
Type | Graduation | Measuring range°C | Accuracy Class | Tolerance |
WZP | Pt100 | -200~+500 | Class A Class B | ±(0.15+0.002ltl) ±(0.30+0.005ltl) |
WZC | Cu50 Cu100 | -50~+100 | ________ | ±(0.30+0.005ltl) |
4.Type of wear-resisting protection tube
Type | Number | Feature | Temperature range°C | OD (mm) | Application |
Stainless steel spray | NP | Wear-resistance | 0~800 | 16,22 |
Cement, pulverized coal, fluidized bed,fluidized bed furnace, cement kiln |
Stainless steel reinforced | Q | Long serive life | 0~800 | 22~30 | |
Hard alloys | NH10 | Wear-resistance, High temperature resistant | 0~1100 | 16~34 | |
High temperature alloys | NH12 | Wear-resistance, Corrosion resistance, High temperature resistant, Good strength | 0~1200 | 20~25 | |
High temperature alloys | NH13 | Wear-resistance, Corrosion resistance, High temperature resistant | 0~1300 | 22 | |
High chromium cast iron | G | Wear-resistance, High temperature resistant, Large outer diameter | 0~1050 | 32~ |
