Thermocouple Type k Temperature Transmitter
- Shanghai
- T/T Credit Card
You May Like
-
Type T M8 Thermocouple Sensor
-
C Type High Temperature Tungsten Molybdenum Thermocouple
-
Type K Thermocouple Kiln Temperature Probe
-
WR Series Thermocouple With Knit for Refinery,High Presssure Polyethylene and Chemical Industry
-
Thermocouple Welding and Temperature Sensor K
-
WRE5/26 Tungsten Rhenium Thermocouple for Pressure Furnace
Product Details
| Place of Origin | Chongqing, China | Brand Name | thermocouple | |
| Model Number | type s thermocouple | Usage | Industrial | |
| Theory | Temperature Sensor | Accuracy | class I | |
| Temperature Range | 0 to 1300C |
Product Description

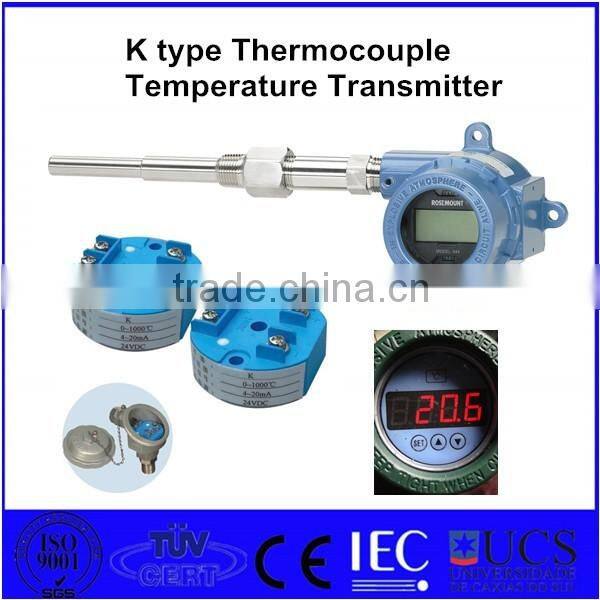

Thermocouple Transmitter

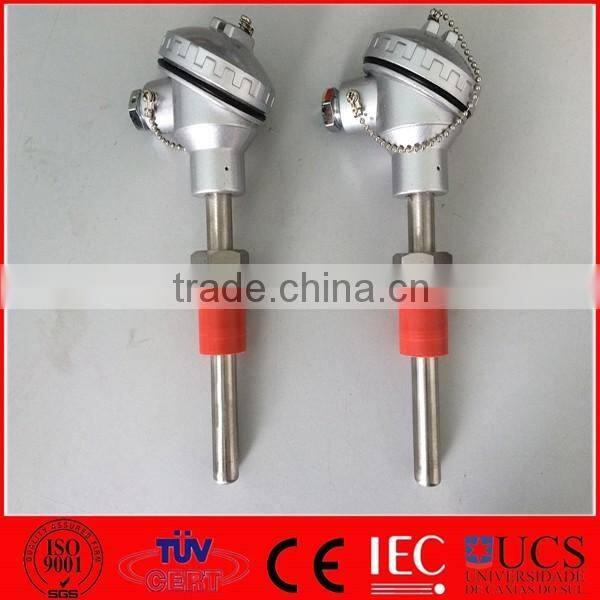

Thermocouple Details:
1.Accuracy: Class I.
2.SS304/SS316 Sheath
3.Probe diameter 10 to 30mm
4.Probe length, 50 to 1500mm
5.Maximum temperature, 0-1300C
6.input:thermocouple or pt100 rtd
7.output:4 to 20mA
Models and specifications for thermocouple
| Graduation | Tolerance class | |||
I | II | ||||
Tolerance value | Measuring range°C | Tolerance value | Measuring range°C | ||
WRNK | K | ±1.5°C | -40~+375 | ±2.5°C | -40~+333 |
±0.004|t| | 375~1000 | ±0.0075|t| | 333~1200 | ||
WRMK | N | ±1.5°C | -40~+375 | ±2.5°C | -40~+333 |
±0.004|t| | 375~1000 | ±0.0075|t| | 333~1200 | ||
WREK | E | ±1.5°C | -40~+375 | ±1.5°C | -40~+333 |
±0.004|t| | 375~800 | ±0.004|t| | 333~900 | ||
WRFK | J | ±1.5°C | -40~+375 | ±1.5°C | -40~+333 |
±0.004|t| | 375~750 | ±0.004|t| | 333~750 | ||
WRCK | T | ±1.5°C | -40~+125 | ±1°C | -40~+133 |
±0.004|t| | 125~350 | ±0.0075|t| | 133~1000 | ||
WRPK | S | ±1°C | 0~+1100 | ±2.5°C | 0~600 |
±[0.003(t-1100)] | 1100~1600 | ±0.0025|t| | 600~1600 | ||
If you need more information about our products please feel free to contact me
