Home > Products > Thermocouples > Type K Thermocouple Anticorrosion Thermocouple Sensor
Type K Thermocouple Anticorrosion Thermocouple Sensor
- 20000 Piece / Pieces per Month
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Chongqing, China | Brand Name | thermocouple | |
| Model Number | thermocouple sensor | Usage | Industrial | |
| Theory | Temperature Sensor |
Product Description

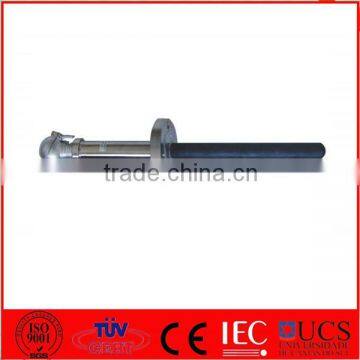

K Type Thermocouple Assembly Anticorrosion Thermocouple
1.Accuracy: Class I.
2.SS304/SS316 Sheath
3.Probe diameter 8 to 25 mm.
4.Probe length, 500 mm
5.Maximum temperature, 0-1300C
6.Fixed flange thermocouple
Models and specifications
| Graduation | Tolerance class | |||
I | II | ||||
Tolerance value | Measuring range°C | Tolerance value | Measuring range°C | ||
WRNK | K | ±1.5°C | -40~+375 | ±2.5°C | -40~+333 |
±0.004|t| | 375~1000 | ±0.0075|t| | 333~1200 | ||
WRMK | N | ±1.5°C | -40~+375 | ±2.5°C | -40~+333 |
±0.004|t| | 375~1000 | ±0.0075|t| | 333~1200 | ||
WREK | E | ±1.5°C | -40~+375 | ±1.5°C | -40~+333 |
±0.004|t| | 375~800 | ±0.004|t| | 333~900 | ||
WRFK | J | ±1.5°C | -40~+375 | ±1.5°C | -40~+333 |
±0.004|t| | 375~750 | ±0.004|t| | 333~750 | ||
WRCK | T | ±1.5°C | -40~+125 | ±1°C | -40~+133 |
±0.004|t| | 125~350 | ±0.0075|t| | 133~1000 | ||
WRPK | S | ±1°C | 0~+1100 | ±2.5°C | 0~600 |
±[0.003(t-1100)] | 1100~1600 | ±0.0025|t| | 600~1600 | ||
