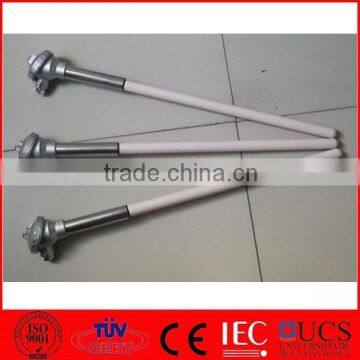

C Type High Temperature Tungsten Molybdenum Thermocouple

FOB Price

USD $5 - $100 / Piece

1 Piece(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port Chongqing
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Chongqing, China	Brand Name	Haichen
Model Number	wre3/25	Usage	Industrial
Theory	Temperature Sensor	Accuracy	A,B class
Temperature Range	0-2300D

Product Description

C Type High Temperature Tungsten Molybdenum Thermocouple

Product Description

WRE Tungsten Rhenium C Type Thermocouple .

This specification covers the requirements for bare, solid conductor, tungsten and rhenium alloy thermoelements having diameters of 0.13 mm (0.005 in.) to 0.5 mm (0.020 in.)supplied in matched pairs. These thermo elements is suitable for use either in bead-insulated, bare-wire thermocouples, or in compacted metal-sheathed, ceramic insulated thermocouple material or assemblies.

This specification covers the thermocouple combinations of tungsten-3 % rhenium versus tungsten-25% rhenium (W3RE/W25RE) and tungsten-5 % rhenium versus tungsten-26 % rhenium (W5RE/W26RE). All information applies to both combinations unless otherwise noted.

Specifications:
1) Compositions:
a) Positive (+): 97% tungsten, 3% rhenium
b) Negative (-): 75% tungsten, 25% rhenium

2) Diameter: 0.5mm, as per customers' requests
3) Working temperature: 0 - 2,300oC

4) Tolerances:
a) 0 to 400oC: ± 4oC
b) 400 to 2,300oC: ±0.5%

Choose types from following table

Alloy Combination		Tolerance Class	Temp Range (°C)	Diameter (mm)	Environment Bare wire
+Lead	-lead	Grade
Tungsten-5%Rhenium (W-5%Re)	Tungsten-26%Rhenium (W-26%Re)	I	0-2300	0.08-0.5	Vacuum, Inert, Hydrogen
		II	0-2300
Tungsten-3%Rhenium (W-3%Re)	Tungsten-25%Rhenium (W-25%Re)	I	0-2300	0.08-0.5	Vacuum, Inert, Hydrogen
		II	0-2300

Ordering Information
A purchase order for thermocouple material conforming to this specification should specify the following:
1: Thermocouple Wire Composition_ May be doped TungstenRhenium3/TungstenRhenium25 or doped TungstenRhenium5/TungstenRhenium26.
1.2: Wire Size_Specify size with each order.
1.3: Wire Length_Specify total amount of each wire and minimum continuous length.
1.4: Thermocouple Calibration_Paired wires is furnished to the initial calibration tolerances
1.5: Required Mechanical Properties
1.6 Instructions for Spooling, Packaging, and Labeling_Wires is supplied on spools of a nominal 100 mm (4-in.)diameter core and boxed individually, unless otherwise requested.
Each spool is marked to identify the wire composition, diameter, quantity, processor's name, spool designation and customers purchase order number in a manner to identify the pair of wires to be used to form a thermocouple meeting the calibration requirement.
1.7 Tests and Certifications Required from the Processor_Unless otherwise requested, the processor supply a certificate with each order stating the wire composition, size and calibration information.

Special sizes are available, please contact sales for inquiries.
