Home > Products > security camera > Dual-Spectrum CCTV Thermal and Visible Light FC1 Series Camera With Perimeter Protection, IP66 Rated and POE Support

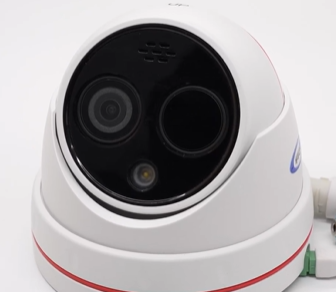

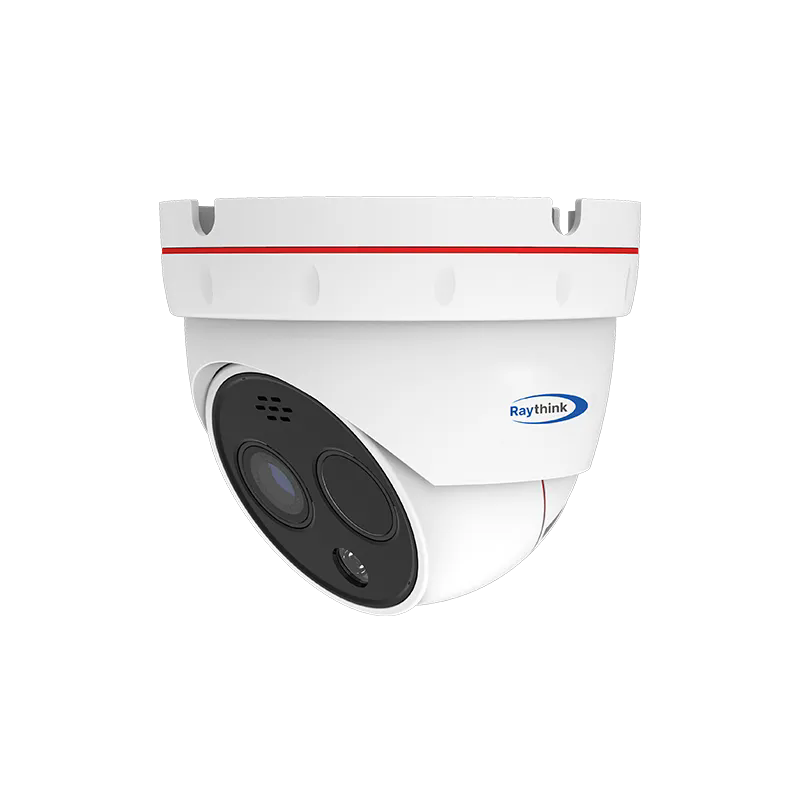

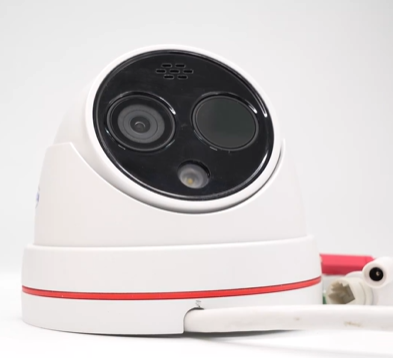

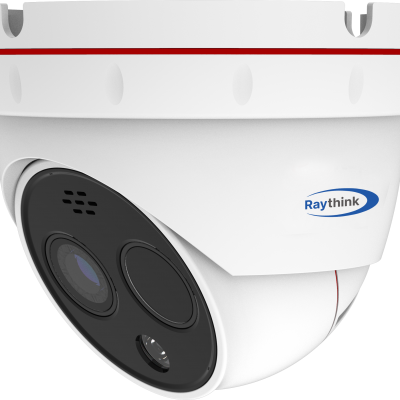

Dual-Spectrum CCTV Thermal and Visible Light FC1 Series Camera With Perimeter Protection, IP66 Rated and POE Support
- T/T L/C PayPal Other
- 7 days
You May Like
Product Details
| Warranty | 1 year | Usage | Industrial | |
| Specification | Φ129×96 | Trademark | Raythink | |
| Origin | Yantai |
Product Description
Feature
|   |   |   |   |
Specification
| Thermal Module | |
|---|---|
| Detector TypeVOx, uncooled FPA detectorsSpectral Range8~14μmNETD≤40mK(@25°C,F#1.0,25Hz)Resolution256×192Pixel Pitch12μmFocal Length3.2mm/7mm | |
| Optical Module | |
| Sensor5MP 1/2.7" Progressive Scan CMOSResolution2560×1920Focal Length4mm/8mmIR distance30m | |
| Image Function | |
| Bi-Spectrum Image FusionSupport | |
| Temperature Measurement | |
| Temperature Range-20℃~+550℃Temperature Accuracy±2℃ or ±2%Temperature MeasurementSuport 4 temperature measure ment rules(fullframe, point, line, area) | |
| Smart Function | |
| Fire DetectionSupportVCASupport Line Crossing&Intrusion detection with AI human/Vehicle recognition2-Way AudioSupportLinkage ActionVideo/ Snapshot/Email/Alarm output/sound and light alarm | |
| System Interface | |
| PowerDC 12V±25%/POE(802.3af)Network1 RJ45 10M / 100M self-adaptive Ethernet portAudio1 in/1 outAlarm2 in/1 outStorageMicro SD memory(maximum 256G)ResetSupportSerial Port1 channel RS485, can support Pelco protocol | |
| General | |
| Work Environment-40℃~+70℃;<95%RHProtectionIP66Power Consumption≤5WDimenstion(mm)Φ129×96Weight≤0.8kg | |
Application Scenarios
|  Charging Pile |  Electric Temperature Measurement |  Perimeter Protection |  Warehouse |
Company Profile

                    Raythink Technology Co., Ltd. is specialized in innovation and development, manufacturing and marketing of intelligent photoelectric sensing technology. We are deeply engaged in the fields of infrared night vision imaging, thermography, gas imaging and laser sensing, providing professional infrared and laser sensing components, devices, software and smart industry solutions to our global customers. We have also successfully achieved self-development and large-scale production of intelligent multi-dimensional sensing photoelectric products in diverse forms applicable to various fields.Being a solution provider to public sectors, industries, and commercial markets, we provide a rich portfolio of intelligent photoelectric sensing products, which are widely used in the smart industry, smart robots, gas detection imaging, fire fighting and safety, green energy, carbon neutrality, environmental protection, healthcare, etc. Bearing the mission of boosting intelligent photoelectric sensing technology progress, RayThink Technology integrates photoelectricity and smart technology to continuously create incremental value for customers and contribute to building a safe, energy-saving and environmentally friendly society.
