Home > Products > Handheld Thermography Camera > RS600 Flagship Thermal Camera

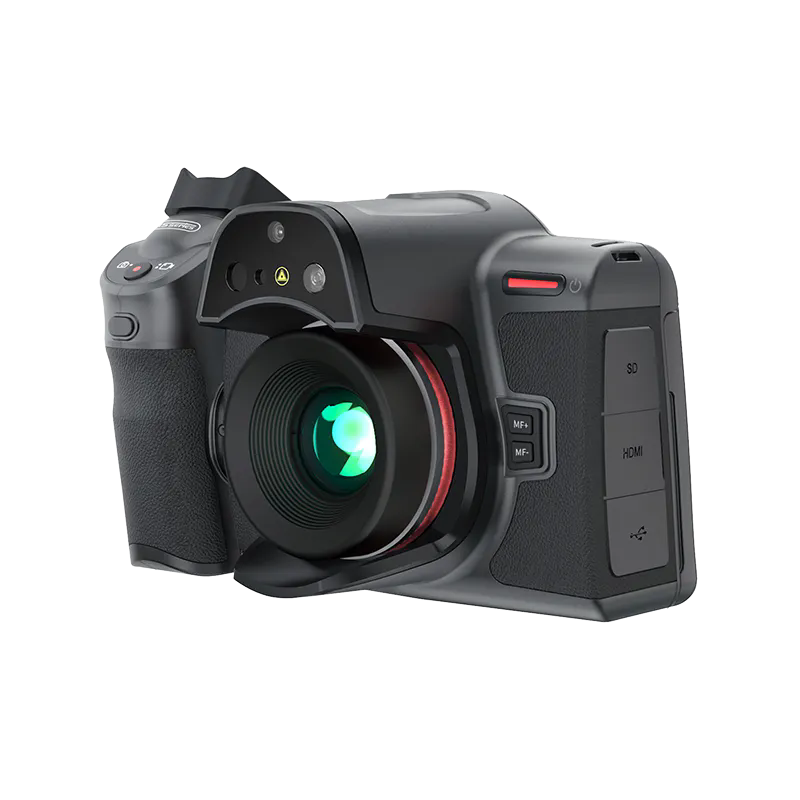

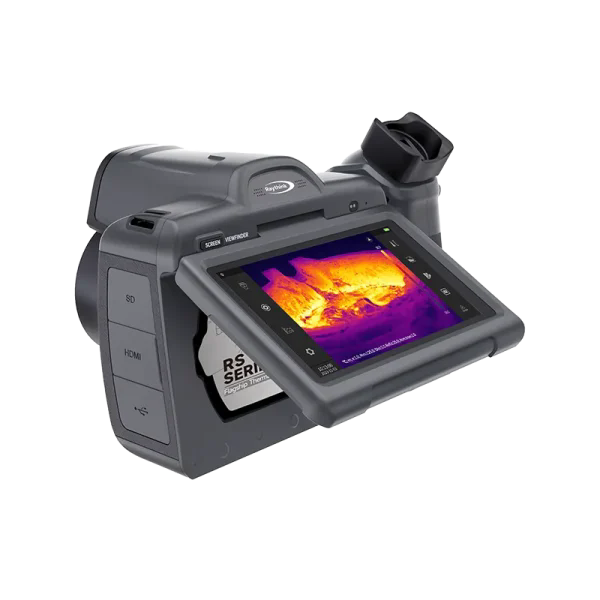

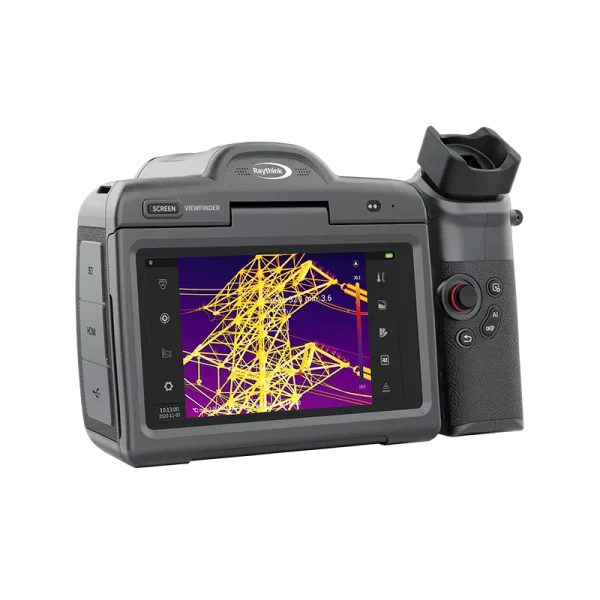

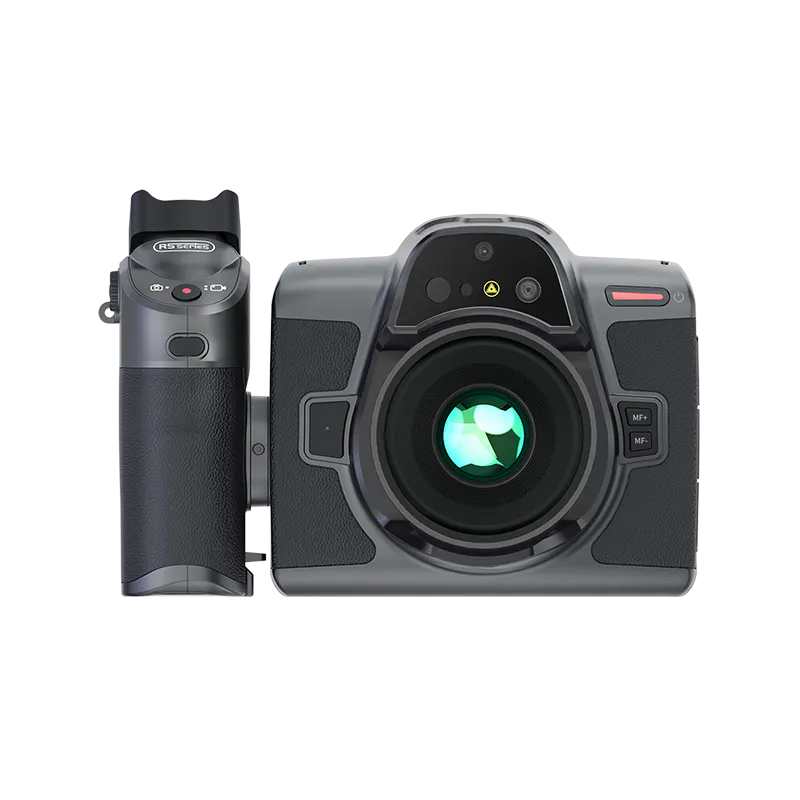

RS600 Flagship Thermal Camera
- 10000 Piece / Pieces per Month
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 7 days
You May Like
Product Details
| Place of Origin | China | Theory | Infrared Thermometer |
Product Description
Equipped with a new-generation 12μm detector with a thermal sensitivity as low as 25mK, RS600 can present more delicate and clearer thermal images.
Based on Android OS and integrated intelligent hardware, the device enables various professional and intelligent functions such as trend analysis, variable diaphragm lens, 25 points, lines, and areas, image freezing, intelligent electrical image stabilization (EIS), 5.5-inch touch screen.
Equipped with a 12μm VOx detector, resolution of 640×512, supporting super-resolution up to 1280×1024.
Capable of distinguishing the temperature difference of 0.025°C, with high temperature measurement accuracy and more-detailed thermal images.
Standard 25° lens, with optional wide-angle, telephoto, and super telephoto lenses.
Support macro lenses, flexible for diverse scenarios.
Android operating system, more convenient to operate
Support intelligent image stabilization, making temperature measurement images more stable
Support laser rangefinding and area measurement
Support up to 25 points/lines/areas to analyze more temperature details in the screen
| Thermal Imaging | |
|---|---|
| Detector TypeUncooled infrared detectorInfrared Resolution640×512Pixel Size12μmSpectral Band7.5-14μmThermal Sensitivity (NETD)＜25mK (25°C,F1.0)Frame Rate25HzLens Focal LengthStandard lens: 17.7mm; super telephoto lens: 60.9mm; telephoto lens: 31.5mm; wide-angle lens: 9.5mm; macro lens (0.2×): 13mm; super macro lens (0.4×): 14.8mm.FOVStandard lens: 25°×20°; super telephoto lens: 7°×5.6°; telephoto lens: 14°×11.2°; wide-angle lens: 45°×36°.Spatial Resolution (IFOV)Standard lens: 0.68mrad; super telephoto lens: 0.2mrad; telephoto lens: 0.38mrad; wide-angle lens: 1.26mrad; Macro lens: One pixel corresponds to 60μm; super macro lens: One pixel corresponds to 30μm.Focusing ModeElectric micro focus, manual focusing, one-button center focus, automatic center focus, single-touch automatic focusing, laser-assisted focusMeasurement Range-20°C~+150°C, 100°C~650°C; optional: 400°C~+1500°CMeasurement Accuracy±2°C or ±2% of readings, whichever is greater | |
| Imaging Display | |
| Display5.5-inch LCD touch screen, resolution 1920×1080Visible Light Camera13 megapixelsDigital Zoom1× ~ 10×Palettes19 optionsImage ModeInfrared, visible light, PIP, dual-spectrum fusionTemperature Width StretchSupport | |
| Measurement and Analysis | |
| Analysis Functions on the DeviceSupport up to 25 movable points, lines, frames, circles and polygons, and up to 5 preset modesLaser RangefindingSupportArea MeasurementSupportHygrothermographSupportPositionSupportTemperature Difference AnalysisSupportTrend AnalysisSupports temperature trend recording and analysis.Image FreezingSupportAnalysis ReportPDF format. Support editing and template importing on the PC client.Supporting SoftwarePC (Infrared Analysis Software) & Mobile Device (iOS/Android APP) | |
| Image Storage | |
| Storage MediumStandard 64GB MicroSD. Support SD, SDHC, and SDXC, up to 2TB.Text NotesSupportVoice AnnotationSupport | |
| Video Functions | |
| Radiation Infrared Video RecordingSupport compressed full radiation video recording (.irv), up to 15Hz video recordingNon-radiation Infrared or Visible Light Video RecordingStandard MP4 video recording | |
| System Functions | |
| Intelligent Routine InspectionSupport. General task package import and editing, standard and automatic naming of imagesCommunication ProtocolWi-Fi, Bluetooth, USB | |
| Others | |
| Battery9000mAh lithium-ion battery, field-replaceable, fast chargingCharging ModeUSB Type-C or desktop chargerBattery LifeContinuous operating time ≥ 3 hours (depending on the actual environment and service conditions)InterfaceUSB3.0 Type-C, SD card, SIM card, Mini HDMITripod SocketUNC 1/4-20 interface for tripodOperating Temperature-15°C~+50°COperating Humidity10%~95% (non-condensing)Storage Temperature-40°C~+70°CIngress Protection RatingIP54Shock and VibrationShock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6)Weight and DimensionsAbout 1.3kg (with battery), 278×116×113mmAuthenticationCE/RoHS/CMA, etc.Packing ListThermal camera, manual, calibration certificate, quick operation guide, data download card, certificate of qualification, multi-country adapter,, USB data cable, lithium-ion battery×3, portable bag, charging cradle, HDMI cable, hand strap, backpack strap, SD card, charging stand, standard lens. | |
| Electric Routine Inspection | High Temperature Material Monitoring | High-End Scientific Research | Chemical Routine Inspection |
