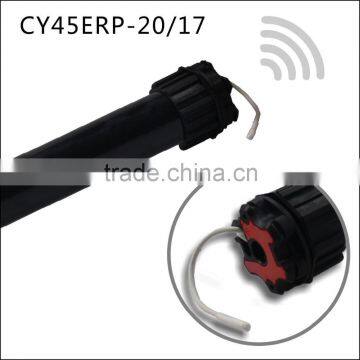

CY45ERP-20/17 Tubular Motor

CY45ERP-20/17

Product Description:
CYERP - Series Due to a diameter of 35 mm and 45 mm, the motors are suitable for 40’s, 60’s and 70’s octagonal shafts. The improved clippable motor head ensures a simple and speedy assembly. The obstacle detection function stops the downward movement if an obstacle had been recognized and the motor does bounce back by 10-15cm. The anti-freezing protection function reacts, if during the upwards movement, the rollers encounter a strong opposing force e.g. if they freeze on the window sill. This in turn prevents damage to the roller shutters and the motor. The limits can be adjusted automatically, manually and even wireless. This motor is an optimal solution for all who prefer an even faster assembly with a long maintenance free life span.

Note:
Shaft connector or anti-lift locks are needed for the blockage recognition function. These hinder the upwards movement when an obstacle is identified. Stopper or angled rails are needed for the automatically adjustable limits. The obstacle detection function is not advisable for small windows or when multiple shutters are being utilised.

Short introduction:
• Electronic or automatic or wireless limit setting (no tools or cable needed)
• Permanent preservation of the limits in case of power failure
• Anti-freezing protection (blockage resistance): The engine automatically switches off, if the upwards movement is blocked
• Obstacle detection: The tubular motor automatically switches off, if an obstacle is identified during the downwards

  movement
• Built-in receiver
• Easy control through CY’s diverse emitters  such as CY15026A, CY15030A, CY15032WA, CY15028A, CY15038A
• 5 year warranty on faultless performance
• A 70’s adapter with transitional item (CY15012) for faultless operating of the hindrance recognition function (optional)

Scope of supply:
• Tubular motor
• Pre-assembled adapter-kit for octagonal shaft
• Adapter-kit for round-shaft 54 mm (only*FP/*FS models)
• English manual
