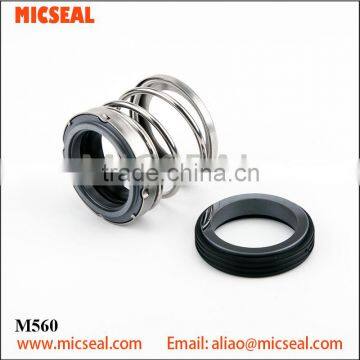

MECHANICAL SEAL M560
- 2000 Piece / Pieces per Month
- Shanghai or Ningbo
- T/T Credit Card PayPal
You May Like
Product Details
| Standard or Nonstandard | Standard | Style | Mechanical Seal | |
| Material | Other, Carbon/Ceramic/Nitrile, Sic/Sic/Viton or EPDM | Place of Origin | Zhejiang, China | |
| Brand Name | MIC SEAL | Model Number | M560 |
Product Description
| D(mm) | D1 | D2 | L1 | L2 | L |
| 10 | 23.5 | 24 | 16 | 7 | 23 |
| 11 | 23.5 | 24 | 16 | 7 | 23 |
| 12 | 26.0 | 26 | 17 | 7 | 24 |
| 14 | 28.0 | 28 | 18 | 7 | 25 |
| 15 | 28.0 | 28 | 18 | 7 | 25 |
| 16 | 30.0 | 32 | 19 | 8 | 25 |
| 18 | 32.5 | 35 | 18 | 8 | 26 |
| 19 | 32.5 | 35 | 18 | 8 | 26 |
| 20 | 34.0 | 38 | 20 | 8 | 28 |
| 22 | 34.0 | 40 | 20 | 8 | 28 |
| 25 | 40.0 | 44 | 20 | 9 | 29 |
| 28 | 44.5 | 46 | 21 | 9 | 30 |
| 30 | 46.5 | 50 | 22 | 9 | 31 |
| 32 | 46.5 | 54 | 24 | 9 | 33 |
| 35 | 51.5 | 58 | 26 | 10 | 36 |
| 38 | 54.0 | 60 | 27 | 10 | 37 |
| 40 | 58.0 | 64 | 28 | 10 | 38 |
| 45 | 61.5 | 66 | 30 | 10 | 40 |
| 50 | 70.5 | 72 | 32 | 10 | 42 |
| Equivalent to: |
| Burgmann EA560 |
| Materials available |
| Seal face: carbon, ceramic, TC, SIC |
| Elastomer: nitrile, viton. |
| Standard seat |
| Cup mounted seat |
| Operating Conditions |
| Temperature: -30°C to +200°C |
| Pressure: Up to 7 bar , 102 psi |
| Speed: Up to 13m/s, 2500fpm |
| Depending on medium, size and material |
| INTRODUCTION OF THIS MECHANICAL SEAL |
| M560 is self-adjusting to shaft misalignment and deflections due to the loosely inserted seal face as well as the ability of the bellows to stretch and tighten. |
| M560 is common used in Japanese pumps, and widely used waste water treatment and chemical industry and submersible pumps |
| Payment Terms: | L/C, T/T, WesternUnion, MoneyGram, O/A |
|---|
Process Of An Order
1. Please check product detailed information above.
A. Model/Size B. Face Material C. Order Quantity.
2. Our Export Service Team will contact you with a quotation file within 3 hours after our team get your enquiry.
3. When you place an order, our team will confirm with you about color, package,method of payment and delivery,
then a sales contract will be sent to you to confirm.
4. Packing: Cardboard box with shock (absorbing wrapper inside).
5. How to delivery:
By air - Buyer offer collect express account, or our sales team find suitable express for buyers. (Mostly for sample)
By sea - Buyer appoint forwarder, or our sales team find suitable forwarder for buyers.
Others - We arrange to delivery goods to some place in China appoint by buyers.
