Home > Products > Standard Mechanical Seals > MECHANICAL SEAL M6

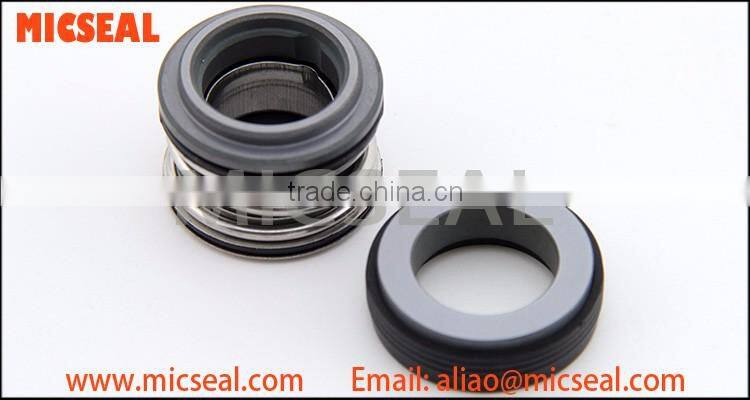

MECHANICAL SEAL M6
- Shanghai or Ningbo
- T/T Credit Card PayPal
You May Like
Product Details
| Standard or Nonstandard | Standard | Style | Mechanical Seal | |
| Material | Other, Carbon/Ceramic/Nitrile, Sic/Sic/Viton or EPDM | Place of Origin | Zhejiang, China | |
| Brand Name | MIC SEAL | Model Number | M6 |
Product Description

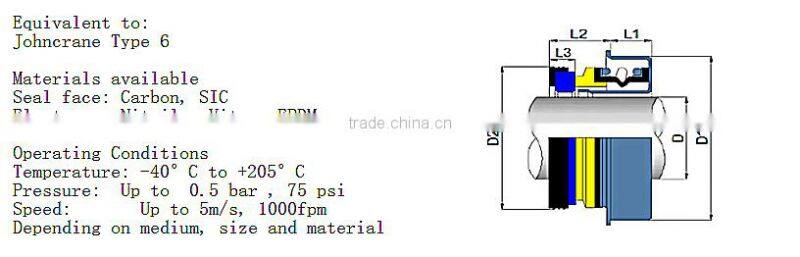

| D(IN) | D1 | D2 | L1 | L2 | L |
| 0.375 | 24.0 | 22.2 | 16.7 | 6.3 | 23.0 |
| 0.500 | 27.0 | 25.4 | 16.7 | 8.0 | 24.7 |
| 0.625 | 31.0 | 31.8 | 18.3 | 10.3 | 28.6 |
| 0.750 | 35.0 | 35.0 | 18.3 | 10.3 | 28.6 |
| 0.875 | 36.3 | 38.1 | 20.7 | 11.1 | 31.7 |
| 1.000 | 43.5 | 41.3 | 20.7 | 11.0 | 31.7 |
| Equivalent to: |
| Johncrane Type 6 |
| Materials available |
| Seal face: Carbon, SIC |
| Elastomer: Nitrile, Viton, EPDM |
| Operating Conditions |
| Temperature: -40°C to +205°C |
| Pressure: Up to 0.5 bar , 75 psi |
| Speed: Up to 5m/s, 1000fpm |
| Depending on medium, size and material |
| Payment Terms: | L/C, T/T, WesternUnion, MoneyGram, O/A |
|---|
Process Of An Order
1. Please check product detailed information above.
A. Model/Size B. Face Material C. Order Quantity.
2. Our Export Service Team will contact you with a quotation file within 3 hours after our team get your enquiry.
3. When you place an order, our team will confirm with you about color, package,method of payment and delivery,
then a sales contract will be sent to you to confirm.
4. Packing: Cardboard box with shock (absorbing wrapper inside).
5. How to delivery:
By air - Buyer offer collect express account, or our sales team find suitable express for buyers. (Mostly for sample)
By sea - Buyer appoint forwarder, or our sales team find suitable forwarder for buyers.
Others - We arrange to delivery goods to some place in China appoint by buyers.
