Germany Design Shaft Mounted Speed Reducers for Nema23 Motor
- Shanghai or Ningbo
- T/T Credit Card PayPal
You May Like
Product Details
| Gearing Arrangement | Worm | Output Torque | 13-1550N.m | |
| Rated Power | 0.1-25.8KW | Input Speed | 1400rpm | |
| Output Speed | 14-186.7r/min | Place of Origin | Zhejiang, China | |
| Model Number | NRV | Brand Name | MIC REDUCER |
Product Description
Specification
Type: | Worm Gear Speed Reducer |
Model: | NRV030-150 |
Ratio: | 1:5,7.5,10,15,20,25,30,40,50,60,80,100 |
Input Power: | 0.1-25.8KW |
Color: | Blue/Silver Or On Customer Request |

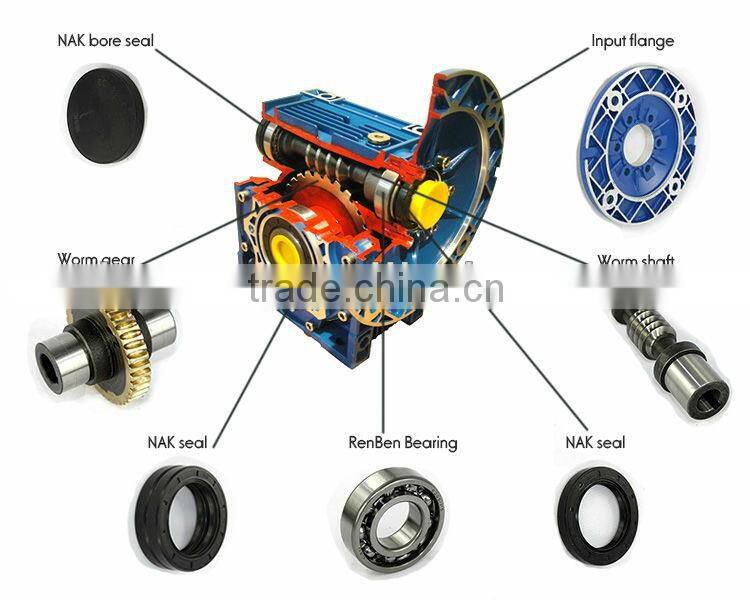

Bearing: | C&U Bearing |
Seal: | NAK & SKF |
Material of Housing | Aluminum Alloy / Casting Iron |
Warranty: | 1 Year |
Usages: | Industrial Machine: Food Stuff, Ceramics, Chemical, Packing, Dyeing, Woodworking, Glass |
Quality Control System: | ISO9001:2008 |
Packing: | Carton and Wooden Case |
Lubricant: | Synthetic & Mineral |

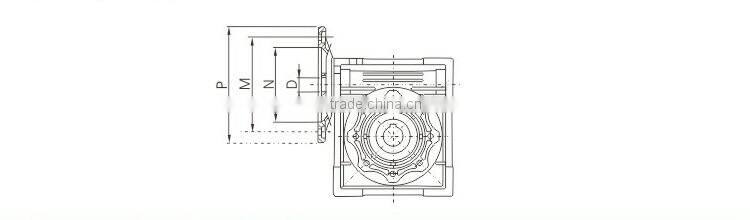

| NMRV | PAM IEC | N | M | P | D | |||||||||||
| 5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 100 | |||||
| 25 | 56B14 | 50 | 65 | 80 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | |||
| 30 | 63B5 | 95 | 115 | 140 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | |||
| 63B14 | 60 | 75 | 90 | |||||||||||||
| 56B5 | 80 | 100 | 120 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | ||
| 56B14 | 50 | 65 | 80 | |||||||||||||
| 40 | 71B5 | 110 | 130 | 160 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | ||||
| 71B14 | 70 | 85 | 105 | |||||||||||||
| 63B5 | 95 | 115 | 140 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | |
| 63B14 | 60 | 75 | 90 | |||||||||||||
| 56B5 | 80 | 100 | 120 | 9 | 9 | 9 | 9 | |||||||||
| 50 | 80B5 | 130 | 165 | 200 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | |||||
| 80B14 | 80 | 100 | 120 | |||||||||||||
| 71B5 | 110 | 130 | 160 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | ||
| 71B14 | 70 | 85 | 105 | |||||||||||||
| 63B5 | 95 | 115 | 140 | 11 | 11 | 11 | 11 | 11 | ||||||||
| 63 | 90B5 | 130 | 165 | 200 | 24 | 24 | 24 | 24 | 24 | 24 | ||||||
| 90B14 | 95 | 115 | 140 | |||||||||||||
| 80B5 | 130 | 165 | 200 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | ||||
| 80B14 | 80 | 100 | 120 | |||||||||||||
| 71B5 | 110 | 130 | 160 | 14 | 14 | 14 | 14 | 14 | ||||||||
| 71B14 | 70 | 85 | 105 | |||||||||||||
| 75 | 100/112B5 | 180 | 215 | 250 | 28 | 28 | 28 | |||||||||
| 100/112B14 | 110 | 130 | 150 | |||||||||||||
| 90B5 | 130 | 165 | 200 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | ||||||
| 90B14 | 95 | 115 | 140 | |||||||||||||
| 80B5 | 130 | 165 | 200 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | |||||
| 80B14 | 80 | 100 | 120 | |||||||||||||
| 71B5 | 110 | 130 | 160 | 14 | 14 | 14 | 14 | |||||||||
| 90 | 100/112B5 | 190 | 215 | 250 | 28 | 28 | 28 | 28 | 28 | 28 | ||||||
| 100/112B14 | 110 | 130 | 160 | |||||||||||||
| 90B5 | 130 | 165 | 200 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | ||||
| 90B14 | 95 | 115 | 140 | |||||||||||||
| 80B5 | 130 | 165 | 200 | 19 | 19 | 19 | 19 | 19 | ||||||||
| 80B14 | 80 | 100 | 120 | |||||||||||||
| 110 | 132B5 | 230 | 265 | 300 | 38 | 38 | 38 | 38 | ||||||||
| 100/112B5 | 180 | 215 | 250 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | ||||
| 90B5 | 130 | 165 | 200 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | ||||||
| 80B5 | 130 | 165 | 200 | 19 | 19 | |||||||||||
| 130 | 132B5 | 230 | 265 | 300 | 38 | 38 | 38 | 38 | 38 | 38 | 38 | |||||
| 100/112B5 | 180 | 215 | 250 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | ||||||
| 90B5 | 130 | 165 | 200 | 24 | 24 | |||||||||||
| 150 | 160B5 | 250 | 300 | 350 | 42 | 42 | 42 | 42 | 42 | |||||||
| 132B5 | 230 | 265 | 250 | 38 | 38 | 38 | 38 | 38 | 38 | |||||||
| 100/112B5 | 180 | 215 | 200 | 28 | 28 | 28 | 28 | |||||||||

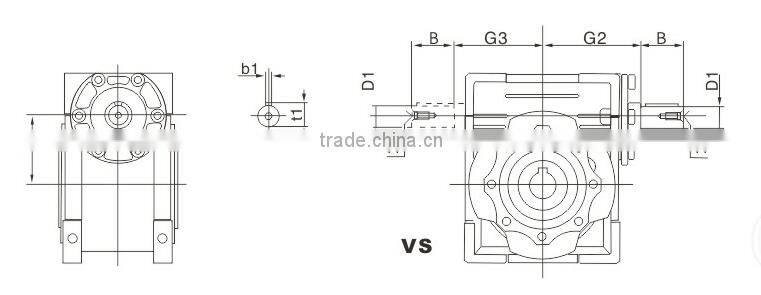

NRV Dimensions
NRV | 030 | 040 | 050 | 063 | 075 | 090 | 110 | 130 | 150 |
B | 20 | 23 | 30 | 40 | 50 | 50 | 60 | 80 | 80 |
D1 | 9j6 | 11j6 | 14j6 | 19j6 | 24j6 | 24j6 | 28j6 | 30j6 | 35j6 |
G2 | 51 | 60 | 74 | 90 | 105 | 125 | 142 | 162 | 195 |
G3 | 45 | 53 | 64 | 75 | 90 | 108 | 135 | 155 | 175 |
I | 30 | 40 | 50 | 63 | 75 | 90 | 110 | 130 | 150 |
b1 | 3 | 4 | 5 | 6 | 8 | 8 | 8 | 8 | 10 |
f1 | - | - | M6 | M6 | M8 | M8 | M10 | M10 | M12 |
t1 | 10.2 | 12.5 | 16 | 21.5 | 27 | 27 | 31 | 33 | 38 |
Low Speed Shafts
| NMRV | d | B | B1 | G1 | L | L1 | f | b1 | t1 |
| 025 | 11g6 (9) | 23 (25) | 25.5 (30) | 50 | 81 (85.5) | 101 | - | 4 (3) | 12.5 (10.2) |
| 30 | 14h6 | 30 | 32.5 | 63 | 102 | 128 | M6 | 5 | 16 |
| 40 | 18h6 | 40 | 43 | 78 | 128 | 164 | M6 | 6 | 20.5 |
| 50 | 25h6 | 50 | 53.5 | 92 | 153 | 199 | M10 | 8 | 28 |
| 63 | 25h6 | 50 | 53.5 | 112 | 173 | 219 | M10 | 8 | 28 |
| 75 | 28h6 | 60 | 63.5 | 120 | 192 | 247 | M10 | 8 | 31 |
| 90 | 35h6 | 80 | 84.5 | 140 | 234 | 309 | M12 | 10 | 38 |
| 110 | 42h6 | 80 | 84.5 | 155 | 249 | 324 | M16 | 12 | 45 |
| 130 | 45h6 | 80 | 85 | 170 | 265 | 340 | M16 | 14 | 48.5 |
| 150 | 50h6 | 82 | 87 | 200 | 297 | 374 | M16 | 14 | 53.5 |
#House shape on request is available
Packing: Carton and Wooden Case.
Payment Terms: L/C, T/T, WesternUnion, MoneyGram, O/A

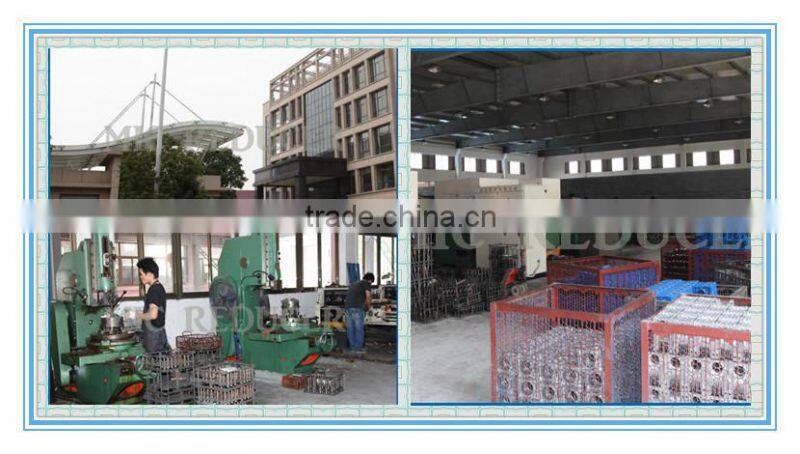

Our company is a professional manufacturer of gearbox in Hangzhou, and our strengths are as follows:
1. Quality assurance : Every production process will be tested before shipping.
2. Production capacity : There are at least 30,000 sets gearbox in stock every month.
3. Product customization is OK.
4. Any question will be replied within 24 hours and our export service team will provide professinal advice for you.
2. Our Export Service Team will contact you with a quotation file within 24 hours after getting your enquiry.
3. Color: Blue/Silver or on customer request.
4. Packing: Carton and Wooden Case.
By sea - Buyer appoint forwarder, or our sales team find suitable forwarder for buyers.
By air - Buyer offer collect express account, or our sales team find suitable express for buyers. (Mostly for sample)
Others - We arrange to delivery goods to some place in China appointed by buyers.
7. When you place an order, our team will confirm with you about color, package,method of payment and delivery, then a sales contract will be sent to you to confirm.
............................................................................................................................................................................................
