Home > Products > Standard Mechanical Seals > MECHANICAL SEAL M80

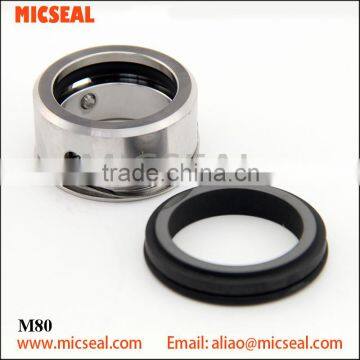

MECHANICAL SEAL M80
- Shanghai or Ningbo
- T/T Credit Card PayPal
You May Like
Product Details
| Standard or Nonstandard | Standard | Style | Mechanical Seal | |
| Material | Other, Carbon/Ceramic/Nitrile, Sic/Sic/Viton or EPDM | Place of Origin | Zhejiang, China | |
| Brand Name | MICSEAL | Model Number | M80 |
Product Description
| D(mm&IN) | D1 | D2 | L1 | L2 | Total W.L |
| 0.625 | 27.0 | 28.5 | 19.1 | 6.3 | 25.4 |
| 16mm | 27.0 | 28.5 | 19.1 | 6.3 | 25.4 |
| 0.750 | 30.0 | 31.7 | 19.1 | 6.3 | 25.4 |
| 24mm | 34.1 | 35.4 | 19.1 | 7.6 | 26.7 |
| 28mm | 40.0 | 42.0 | 19.1 | 7.6 | 26.7 |
| 1.125 | 39.5 | 41.2 | 19.1 | 7.6 | 26.7 |
| 30mm | 41.0 | 42.7 | 19.1 | 7.6 | 26.7 |
| 1.250 | 42.4 | 44.2 | 19.1 | 7.6 | 26.7 |
| 32mm | 42.4 | 44.4 | 19.1 | 7.6 | 26.7 |
| 1.375 | 45.5 | 47.6 | 19.1 | 7.6 | 26.7 |
| 1.500 | 51.8 | 53.9 | 21.1 | 8.1 | 29.2 |
| 1.750 | 58.2 | 60.3 | 21.1 | 8.1 | 29.2 |
| 1.875 | 61.4 | 63.5 | 21.1 | 8.1 | 29.2 |
| 50mm | 61.9 | 63.9 | 21.1 | 8.1 | 29.2 |
| 2.000 | 64.6 | 66.6 | 22.1 | 9.6 | 31.7 |
| 2.125 | 71.0 | 73.0 | 22.1 | 9.6 | 31.7 |
| 2.125 | 71.0 | 73.9 | 22.1 | 9.6 | 31.7 |
| 2.150 | 72.0 | 75.0 | 22.1 | 9.6 | 31.7 |
| 55mm | 72.0 | 75.0 | 22.1 | 9.6 | 31.7 |
| 63mm | 79.3 | 83.0 | 25.8 | 9.1 | 34.9 |
| 2.500 | 79.3 | 88.9 | 25.8 | 9.1 | 34.9 |
| 2.750 | 88.9 | 95.2 | 25.8 | 9.1 | 34.9 |
| 2.875 | 94.0 | 98.4 | 25.8 | 9.1 | 34.9 |
| 75mm | 96.0 | 100.4 | 25.8 | 9.1 | 34.9 |
| Equivalent to: |
| Johncrane Type 80, 87; AES W01 |
| Materials available |
| Seal face: stainless/carbon, TC/TC |
| Elastomer: nitrile, viton, EPDM |
| Operating Conditions |
| Temperature: -30°C to +200°C |
| Pressure: Up to 10 bar , 145 psi |
| Speed: Up to 5.5m/s, 1100fpm |
| Depending on medium, size and material |
INTRODUCTION OF THIS MECHANICAL SEAL
M80 is Most commonly used on lobe, gear pumps
| Payment Terms: | L/C, T/T, WesternUnion, MoneyGram, O/A |
|---|
Process Of An Order
1. Please check product detailed information above.
A. Model/Size B. Face Material C. Order Quantity.
2. Our Export Service Team will contact you with a quotation file within 3 hours after our team get your enquiry.
3. When you place an order, our team will confirm with you about color, package,method of payment and delivery,
then a sales contract will be sent to you to confirm.
4. Packing: Cardboard box with shock (absorbing wrapper inside).
5. How to delivery:
By air - Buyer offer collect express account, or our sales team find suitable express for buyers. (Mostly for sample)
By sea - Buyer appoint forwarder, or our sales team find suitable forwarder for buyers.
Others - We arrange to delivery goods to some place in China appoint by buyers.
Contact Us
- Hangzhou Mechanic Machinery Co., Ltd.
- Contact nameAllen Liao Chat Now
- Phone0086-571-82202309
- AddressJinquan Village, Yipeng St, Xiaoshan District, Hangzhou, Zhejiang
