Home > Products > Standard Mechanical Seals > MECHANICAL SEAL M3N

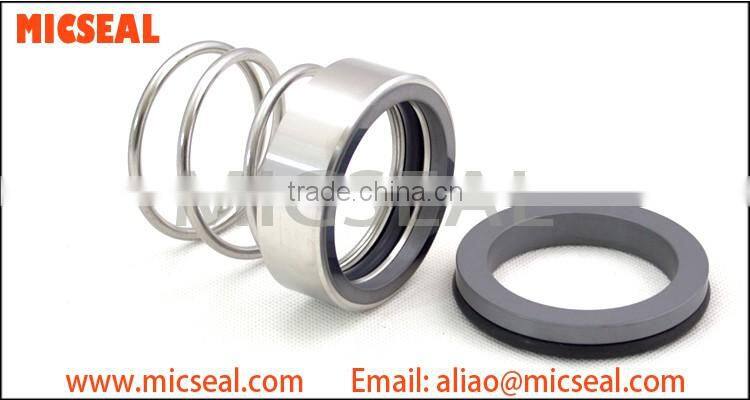

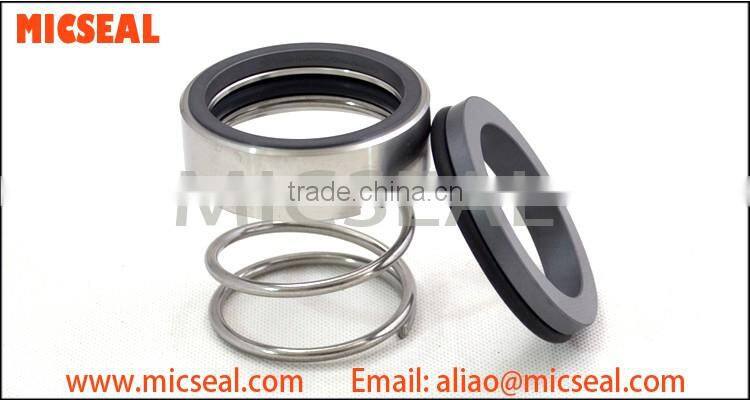

MECHANICAL SEAL M3N
- Shanghai or Ningbo
- T/T Credit Card PayPal
You May Like
Product Details
| Standard or Nonstandard | Standard | Style | Mechanical Seal | |
| Material | Other, Carbon/Ceramic/Nitrile, Sic/Sic/Viton or EPDM | Place of Origin | Zhejiang, China | |
| Brand Name | MIC SEAL | Model Number | M3N |
Product Description
| D(mm) | D1 | D2 | L1 (37) | L1 (32) | L2 |
| 10 | 20.0 | 19.2 | 16.9 | 16.9 | 6.6 |
| 12 | 22.0 | 21.6 | 17.4 | 17.4 | 5.6 |
| 14 | 24.0 | 24.6 | 16.5 | 17.4 | 5.6 |
| 16 | 26.0 | 28.0 | 16.5 | 17.4 | 7.5 |
| 18 | 31.0 | 30.0 | 18.0 | 20.5 | 8.0 |
| 20 | 34.0 | 36.0 | 19.0 | 22.0 | 8.0 |
| 22 | 36.0 | 35.0 | 20.5 | 23.5 | 7.5 |
| 24 | 38.0 | 38.0 | 22.0 | 25.0 | 7.5 |
| 25 | 39.0 | 38.0 | 23.5 | 26.5 | 7.5 |
| 28 | 42.0 | 42.0 | 23.5 | 26.5 | 9.0 |
| 30 | 44.0 | 45.0 | 24.5 | 26.5 | 10.5 |
| 32 | 46.0 | 48.0 | 28.0 | 28.5 | 10.5 |
| 35 | 49.0 | 52.0 | 28.0 | 28.5 | 11.0 |
| 38 | 54.0 | 55.0 | 31.0 | 32.2 | 10.3 |
| 40 | 56.0 | 58.0 | 34.0 | 34.7 | 10.8 |
| 45 | 61.0 | 64.0 | 36.5 | 39.2 | 11.6 |
| 48 | 61.0 | 68.4 | 42.0 | 44.7 | 11.6 |
| 50 | 66.0 | 69.3 | 43.0 | 45.7 | 11.6 |
| 55 | 71.0 | 75.4 | 47.0 | 49.0 | 13.3 |
| 58 | 78.0 | 78.4 | 51.0 | 55.0 | 13.3 |
| 60 | 79.0 | 80.4 | 51.0 | 55.0 | 13.3 |
| 65 | 85.0 | 85.4 | 52.0 | 54.3 | 13.0 |
| 68 | 88.0 | 91.5 | 54.0 | 56.3 | 13.7 |
| 70 | 90.0 | 92.0 | 54.0 | 56.3 | 13.0 |
| 75 | 98.0 | 99.0 | 54.0 | 56.3 | 14.0 |
| 80 | 103.0 | 104.0 | 58.0 | 59.3 | 15.0 |
| Equivalent to: |
| Burgmann M3N/M32/M37 |
| Materials available |
| Seal face: Carbon/SIC, SIC/SIC |
| Elastomer: Nitrile, Viton, Neoprene, EPDM |
| Standard seat G4, G9, G6 G13 |
| Operating Conditions |
| Temperature: -30°C to +260°C |
| Pressure: Up to 10 bar , 145 psi |
| Speed: Up to 10m/s, 2000fpm |
| Depending on medium, size and material |
| Payment Terms: | L/C, T/T, WesternUnion, MoneyGram, O/A |
|---|
