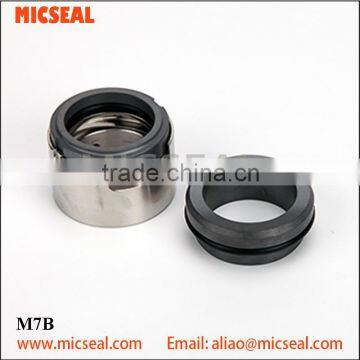

MECHANICAL SEAL M7B
- Shanghai or Ningbo
- T/T Credit Card PayPal
You May Like
Product Details
Standard or Nonstandard | Standard | Style | Mechanical Seal | |
Material | Other, Carbon/Ceramic/Nitrile, Sic/Sic/Viton or EPDM | Place of Origin | Zhejiang, China | |
Brand Name | MCI SEAL | Model Number | M7B |
Product Description
d/D(mm) | D1 | D2 | L1 | L2 | Total W.L |
18/22 | 37 | 33 | 33.5 | 11.5 | 45.0 |
20/24 | 39 | 35 | 33.5 | 11.5 | 45.0 |
22/26 | 40 | 37 | 33.5 | 11.5 | 45.0 |
24/28 | 43 | 39 | 36.0 | 11.5 | 47.5 |
25/30 | 45 | 40 | 36.0 | 11.5 | 47.5 |
28/33 | 47 | 43 | 38.5 | 11.5 | 50.0 |
30/35 | 48 | 45 | 38.5 | 11.5 | 50.0 |
32/38 | 50 | 48 | 38.5 | 11.5 | 50.0 |
33/38 | 55 | 48 | 38.5 | 11.5 | 50.0 |
35/40 | 57 | 50 | 38.5 | 11.5 | 50.0 |
38/43 | 60 | 56 | 38.5 | 14.0 | 52.5 |
40/45 | 62 | 58 | 38.5 | 14.0 | 52.5 |
43/48 | 65 | 61 | 38.5 | 14.0 | 52.5 |
45/50 | 67 | 63 | 38.5 | 14.0 | 52.5 |
48/53 | 70 | 66 | 38.5 | 14.0 | 52.5 |
50/55 | 72 | 70 | 42.5 | 15.0 | 57.5 |
53/58 | 79 | 73 | 42.5 | 15.0 | 57.5 |
55/60 | 81 | 75 | 42.5 | 15.0 | 57.5 |
58/63 | 84 | 78 | 47.5 | 15.0 | 62.5 |
60/65 | 86 | 80 | 47.5 | 15.0 | 62.5 |
63/68 | 89 | 83 | 47.5 | 15.0 | 62.5 |
65/70 | 91 | 85 | 47.5 | 15.0 | 62.5 |
70/75 | 99 | 90 | 52.0 | 18.0 | 70.0 |
75/80 | 104 | 92 | 52.0 | 18.0 | 70.0 |
80/85 | 109 | 97 | 51.8 | 18.2 | 70.0 |
85/90 | 114 | 105 | 56.8 | 18.2 | 75.0 |
90/95 | 119 | 110 | 56.8 | 18.2 | 75.0 |
95/100 | 124 | 115 | 57.8 | 17.2 | 75.0 |
Equivalent to: |
Burgmann H7N |
Operating Conditions |
Temperature: -30°C to +260°C |
Pressure: Up to 40 bar , 580 psi |
Speed: Up to 20m/s, 4000fpm |
Materials available |
Seal face: Carbon/SIC, SIC/SIC |
Elastomer: Nitrile, Viton, Neoprene, EPDM |
Standard seat G9 |
Alternative seat G4, G13, G6 |
Depending on medium, size and material |
INTRODUCTION OF THIS MECHANICAL SEAL
M7B is universal application opportunities with easily interchangeable faces
M7B is flexibility in torque transmissions with self cleaning effect and short installation length possible
M7B is widely used in industries including chemical processing, food processing, oil refinery, power station
Process Of An Order
1. Please check product detailed information above.
A. Model/Size B. Face Material C. Order Quantity.
2. Our Export Service Team will contact you with a quotation file within 3 hours after our team get your enquiry.
3. When you place an order, our team will confirm with you about color, package,method of payment and delivery,
then a sales contract will be sent to you to confirm.
4. Packing: Cardboard box with shock (absorbing wrapper inside).
5. How to delivery:
By air - Buyer offer collect express account, or our sales team find suitable express for buyers. (Mostly for sample)
By sea - Buyer appoint forwarder, or our sales team find suitable forwarder for buyers.
Others - We arrange to delivery goods to some place in China appoint by buyers.
