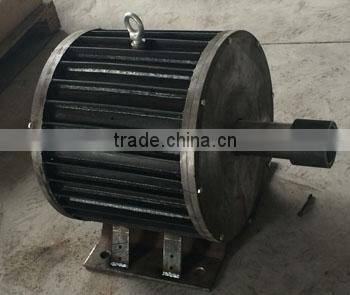

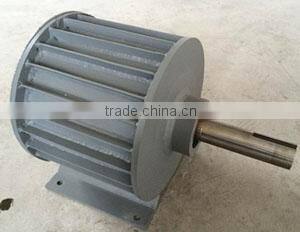

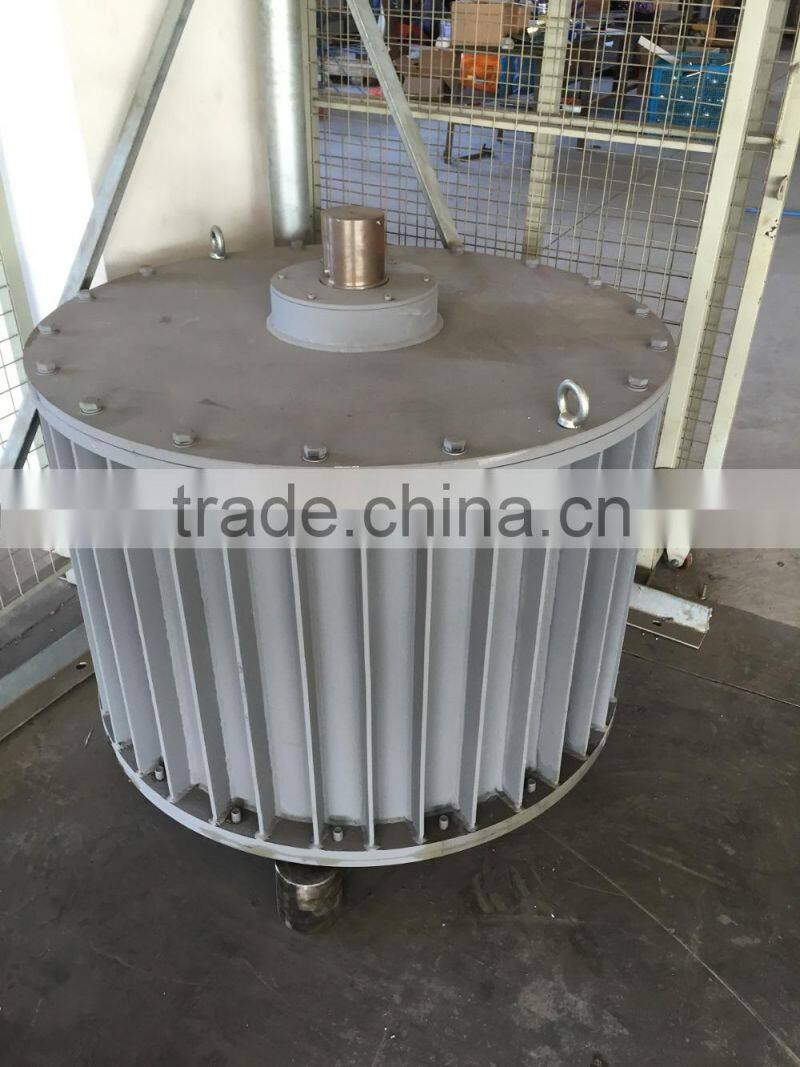

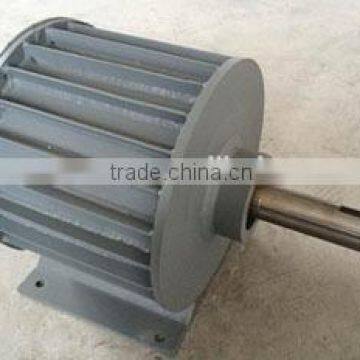

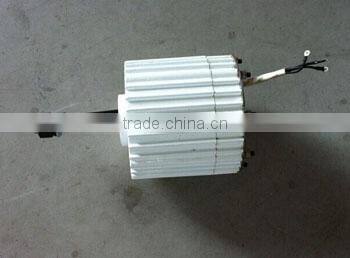

10KW/20KW/30KW/50KW/100KW Low RPM AC Three Phase Permanent Magnet Generator
US$ 2,000 - 30,000
/ Piece
5 Pieces(Min. Order)
- SHANGHAI/NINGBO CHINA
- T/T
You May Like
-
400V/50HZ Copied STF Stamford Generator
-
400V/50HZ Copied STF Stamford Alaternator
-
230V~400V/50HZ ST/STC/STF AC Alternator
-
Brushless Copied Stamford Three Phase AC STF Alternator Dynamo
-
3KW-50KW STC Three Phase 100% Full Power Copper Wire AC Alternator Generator
-
OEM 2KW~700KW STF/ST/STC Brush/Brushless Alternator / Generator /Dynamo Generator
Product Details
| Place of Origin | Fujian, China | Brand Name | OEM | |
| Model Number | NE20~100 | Type | Wind Power Generator |
Product Description
10KW/20KW/30KW/50KW/100KW Low RPM AC Three Phase Permanent Magnet Generator
Features:
1.Gearless, direct drive, low RPM generator
2.Excellent heat dissipation due to the carbon steel outer frame and special internal structure.
3.permanent magnet generator rotor using patented alternator, together with the special stator design
| Model | NE-20k | NE-30k | NE-50k | NE-100k | NE-100k | NE-100k |
| Rated power | 20kw | 30kw | 50kw | 100kw | 100kw | 100kw |
| Maximum power | 23kw | 35kw | 56kw | 110kw | 110kw | 110kw |
| Rated voltage | 220v | 220v | 220v | 220v | 380v | 220v |
| Rated revolution | 200r/m | 200r/m | 200r/m | 200r/m | 200r/m | 100r/m |
| rated current | 91A | 136A | 227A | 455A | 264A | 455A |
| start up torque | 20.3N*M | 28.8N*M | 46.5N*M | 89.6N*M | 89.6N*M | 160.3N*M |
| NW | 350KG | 440KG | 670KG | 1160KG | 1160KG | 1320KG |
| Efficiency | 93.20% | 93.20% | 93.20% | 93.20% | 93.20% | 93.20% |
