Electric clean water pump 1.5KW-3KW with high head
USD $50 - $70
/ Piece
100 Pieces(Min.Order)
- 5000 Piece / Pieces per Month
- FUZHOU
- T/T
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | OEM | |
| Model Number | PX | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, Clean water | Pressure | Low Pressure | |
| Application | Other, Clean water |
Product Description

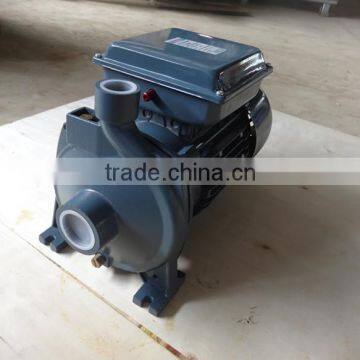

Electric clean water pump 1.5KW-3KW with high head
1. Working conditions:
Max temperature of fluid up to: 80℃
Max ambient temperature up to: 40℃
Max Pressure: 10bar
2. Structural characteristics:
Pump casing: Cast iron
Impeller: Brass
Motor housing: Cast iron
Mechanical seal: Stainless steel(graphite to ceramic)
Shaft: 45# steel or stainless iron
Bearing: SKF/NTN/NSK/China
Insulation class: B and F
Protection class: IP44 and IP54
3.INSTALLATION AND APPLICATIONS
These pumps are suitable for pumping clean water and fluids which are not chemically aggressive to the pump components.
They are extremely reliable, simple to use, quiet and virtually maintenance-free, finding many uses in domestic and civil applications, and in particular the automatic distribution of water from small and medium-size surge tanks, transferring water,Watering gardens, etc.
These pumps should be installed in a covered area. protected against the weather.
These pumps should be installed in a covered area. protected against the weather.
| PX Series Centrifugal Pump | |||||||||
| Model | Power | Q.MAX | H.MAX | S.Head | Speed | Pipe Dia | N.W | Packing size | |
| KW | HP | (L/min) | (m) | (m) | (r.p.m) | (Inch) | (kg) | (mm) | |
| DC-150 | 1.5 | 2 | 120 | 40 | 9 | 2850 | 1"*1" | 18 | 380*240*280 |
| DC-200 | 2.2 | 3 | 130 | 45 | 1"*1" | 21 | 380*240*280 | ||
| DC-300 | 3 | 4 | 140 | 45 | 1.5"*1" | 28 | 450*250*320 | ||
