Home > Products > Water Pumps > JDP85 1HP Manual Selfing-priming Farming Water Pump

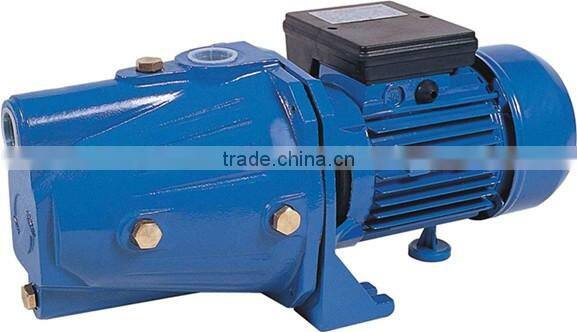

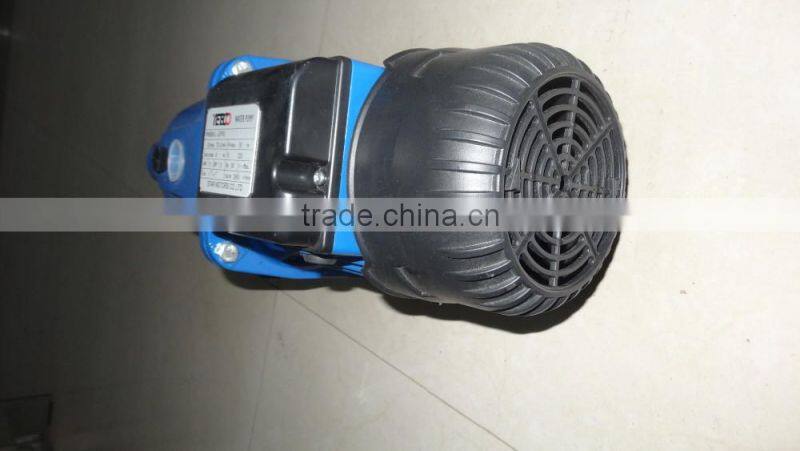

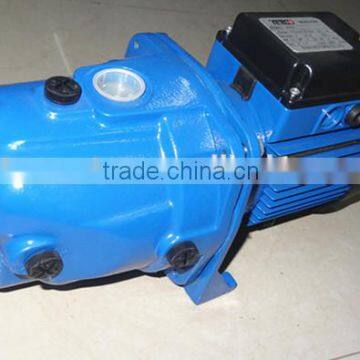

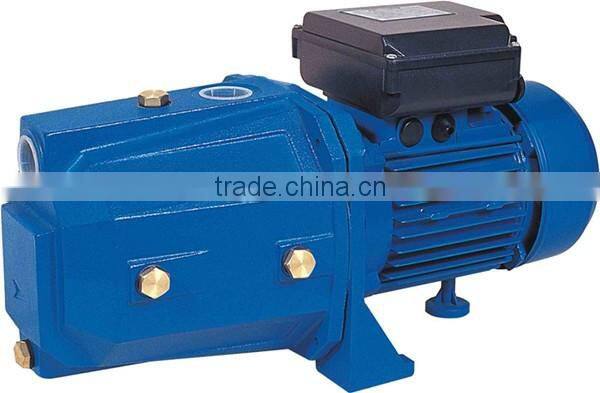

JDP85 1HP Manual Selfing-priming Farming Water Pump
US$ 38 - 58
/ Piece
100 Pieces(Min. Order)
- FUZHOU
- T/T
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | OEM | |
| Model Number | JEP | Theory | Jet Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, CLEAN WATER | Pressure | High Pressure | |
| Application | Other, CLEAN WATER |
Product Description
JET100 Manual Self-Priming Farming Water Pump
1. Working conditions:
Max temperature of fluid up to: 80℃
Max ambient temperature up to: 40℃
Max Pressure: 10bar
2. Structural characteristics:
Pump casing: Cast iron
Impeller: Brass / PPO
Motor housing: Aluminum
Mechanical seal: Stainless steel(graphite to ceramic)
Shaft: 45# steel or stainless steel
Bearing: SKF/NTN/NSK/China
Insulation class: B and F
Protection class: IP44 and IP54
INSTALLATION AND APPLICATIONS
These pumps are suitable for handing clean water not containing abrasive particles and fluids which are not chemically aggressive to the pump components.

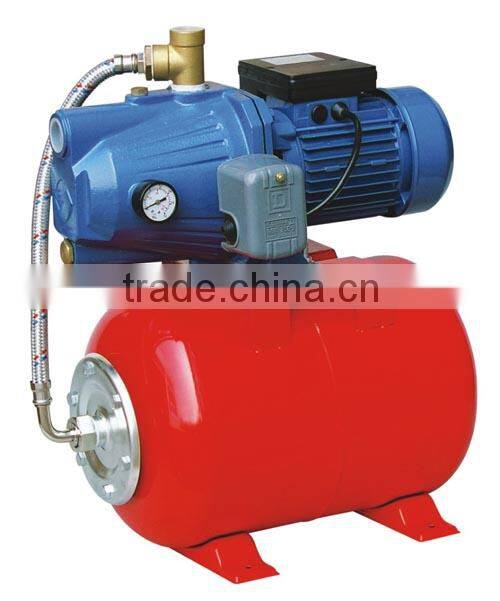

These pumps consist forJET series pump,pressure tank,pressure switch,pressure guages and brass connector.
They are extremely reliable, light, economic and simple to use, finding many uses in domestic applications, in particular the automatic distribution of water from surge tanks, watering gardens and for boosting insufficient mains water pressure.
These pumps should be installed in a covered area, protected against the weather.
They are extremely reliable, light, economic and simple to use, finding many uses in domestic applications, in particular the automatic distribution of water from surge tanks, watering gardens and for boosting insufficient mains water pressure.
These pumps should be installed in a covered area, protected against the weather.
PERFORMANCE
The wide range of pumps in the JET series satisfies the most various operating requirements with features such as:
high heads with respect to power requirements.
Stable operating curves, with small variations in delivery rates with respect to large variations in the pressure demand.
high tolerance of the presence of entrained air in the fluid to the pumped.
Suction capacity up to 9 meters.
Stable operating curves, with small variations in delivery rates with respect to large variations in the pressure demand.
high tolerance of the presence of entrained air in the fluid to the pumped.
Suction capacity up to 9 meters.
| AUTOJETL Series Self-Priming JET Pump | |||||||||
| Model | Power | Q.MAX | H.MAX | S.Head | Speed | Pipe Dia | N.W | Packing size | |
| W | HP | (L/min) | (m) | (m) | (r.p.m) | (Inch) | (kg) | (mm) | |
| JET-60L | 460 | 0.6 | 55 | 35 | 9 | 2850 | 1"*1" | 17.3 | 435*188*230 |
| JET-80L | 600 | 0.8 | 60 | 40 | 1"*1" | 18 | 435*188*230 | ||
| JET-100L | 750 | 1 | 60 | 45 | 1"*1" | 18.7 | 435*188*230 | ||
| AUTOJETP Series Self-Priming JET Pump | |||||||||
| Model | Power | Q.MAX | H.MAX | S.Head | Speed | Pipe Dia | N.W | Packing size | |
| W | HP | (L/min) | (m) | (m) | (r.p.m) | (Inch) | (kg) | (mm) | |
| JET-60P | 460 | 0.6 | 55 | 35 | 9 | 2850 | 1"*1" | 17.6 | 435*182*260 |
| JET-80P | 600 | 0.8 | 60 | 40 | 1"*1" | 18.3 | 435*182*260 | ||
| JET-100P | 750 | 1 | 60 | 45 | 1"*1" | 19 | 435*182*260 | ||
| JET-120P | 1100 | 1.5 | 60 | 65 | 1"*1" | 35 | 556*235*290 | ||
| JET-140P | 1500 | 2 | 65 | 70 | 1"*1" | 38 | 556*235*290 | ||
