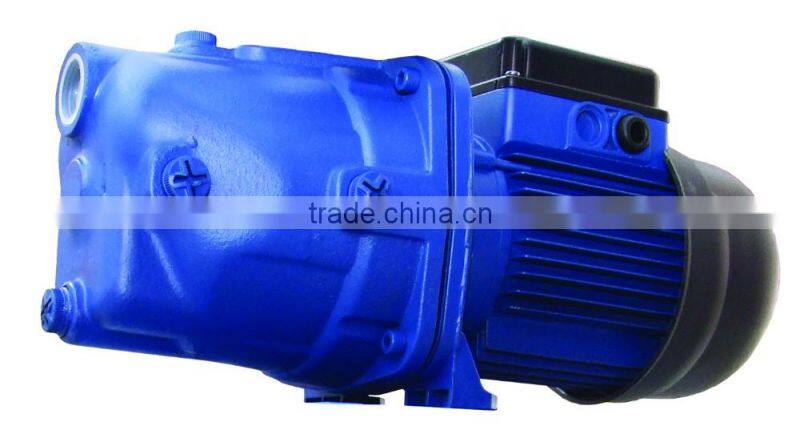

1HP JET102M Cast Iron Self Priming JET Water PUMP
US$ 25 - 50
/ Piece
100 Pieces(Min. Order)
- FUZHOU
- T/T
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | OEM | |
| Model Number | JET102M | Theory | Jet Pump | |
| Structure | Gear Pump | Usage | Water | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, Clean Water | Pressure | Low Pressure | |
| Application | Other, Clean Water |
Product Description
1HP JET102M Cast Iron Self Priming JET Water PUMP
Pump body: Cast Iron
Impeller: Brass
Motor: Closed,extremely ventilated
E-Jector Unit: Techno Polymer (approved For Drinking Water)
Insulation class: B
Protection class: IP44
Mechanical seal: Stainless steel/Carbon-ceramic
Shaft: 45# Steel/Stainless steel
Thermal protector(if required)
INSTALLATION AND APPLICATIONS:
These pumps are suitable for pumping clean water and fluids which are not chemically aggressive to pump components.
They are extremely reliable,economical and simple to use, being particularly suitable for domestic applications such as the automatic distribution of water from small and medium-size tanks, watering gardens,etc.
These pumps should be installed in a covered area. protected against the weather.
They are extremely reliable,economical and simple to use, being particularly suitable for domestic applications such as the automatic distribution of water from small and medium-size tanks, watering gardens,etc.
These pumps should be installed in a covered area. protected against the weather.
PERPORMANCE:
The wide range of pump in the JET-M series satisfied the most varied requirements with features such as:
- high heads with respect to power required.
-flat operating and power absorption curves, giving moderate curve variations with respect to large variations in delivery demand.
-high tolerance of the presence of entrained air in the fluid to be pumped.
-suction capacity up to 9 meters
- high heads with respect to power required.
-flat operating and power absorption curves, giving moderate curve variations with respect to large variations in delivery demand.
-high tolerance of the presence of entrained air in the fluid to be pumped.
-suction capacity up to 9 meters
| Model | Power | Q.MAX | H.MAX | S.Head | Speed | Pipe Dia | N.W | Packing size | |
| W | HP | (L/min) | (m) | (m) | (r.p.m) | (Inch) | (kg) | (mm) | |
| JET102M | 750 | 1 | 70 | 50 | 9 | 2850 | 1"*1" | 18.5 | 440*190*195 |
