Home > Products > Electric Motors > YDK Portable Cooler Fan Motor
YDK Portable Cooler Fan Motor
US$ 18 - 35
/ Piece
500 Pieces(Min. Order)
- NINGBO CHINA
- T/T
You May Like
Product Details
| Brand Name | OEM | Model Number | YDK | |
| Type | Asynchronous Motor | Frequency | 50HZ | |
| Output Power | 120W | Protect Feature | Totally Enclosed | |
| Phase | Single-phase | Certification | CCC, CE, ROHS, UL | |
| AC Voltage | 208-230 / 240 V | Place of Origin | Fujian, China | |
| Efficiency | IE 1 |
Product Description

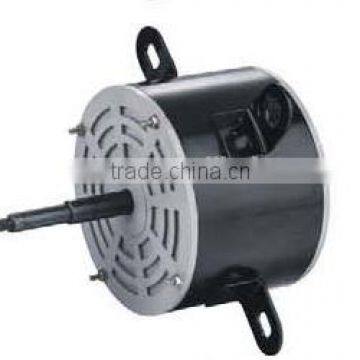

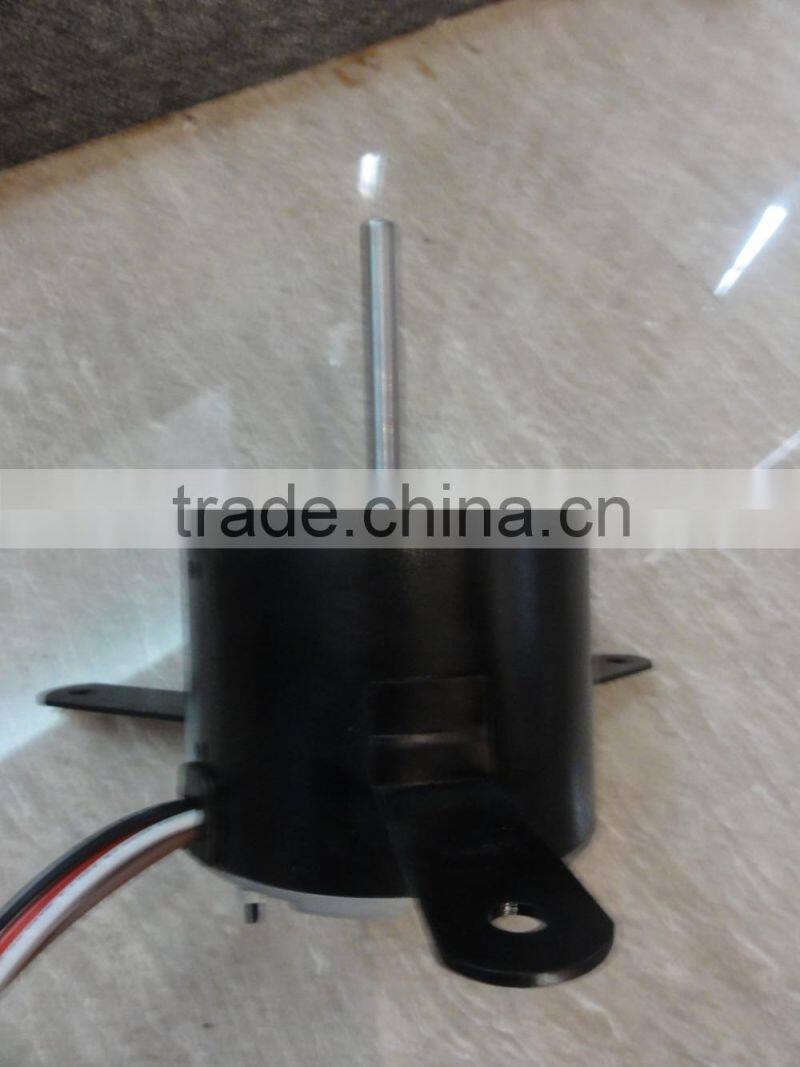

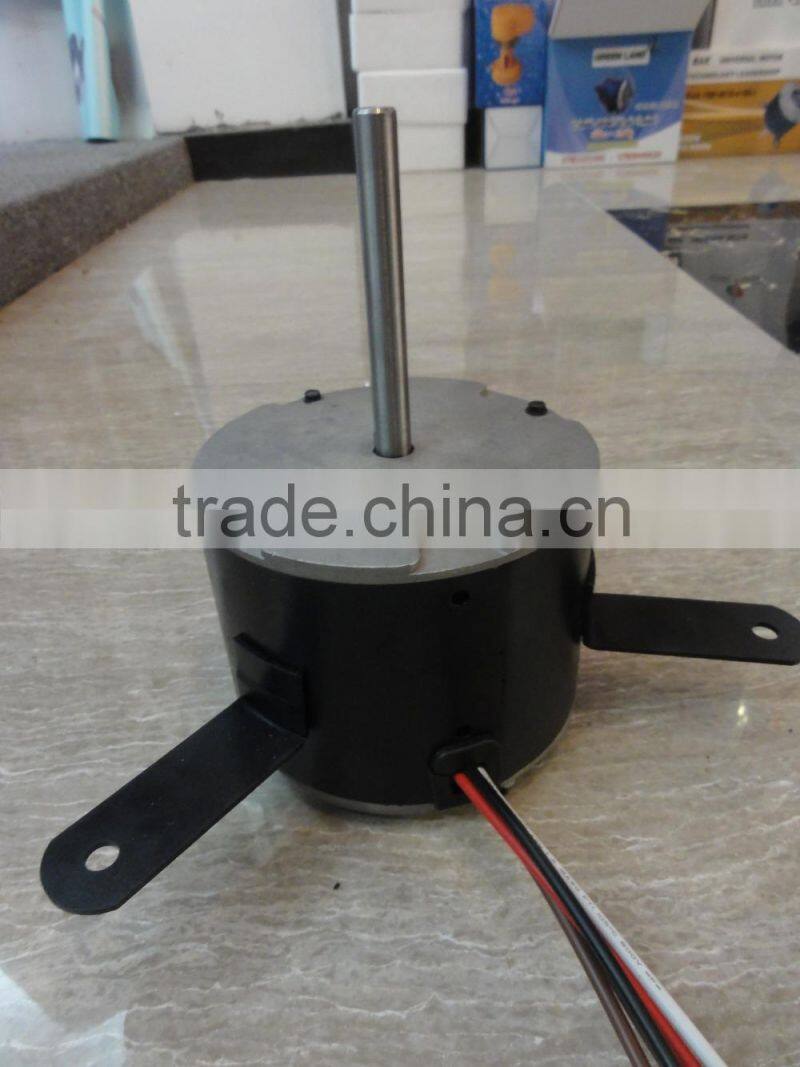

YDK Portable Cooler Fan Motor
MOTOR FEATURES:
IP22 enclosure
Class F insulation
Corrosion resistant
High quality lamination steel giving very low iron losses
High quality magnet wire
Vacuum varnish impregnation for superior tropic proof insulation
Industrial type service factors
Rolled steel motor body
Aluminum drive and non-drive ends
Thermal overload protection
Long life capacitors
CUSTOMER BENEFITS:
Quiet operation
Low vibration
Superior life
High strength frame
Reliable in country, city or factory environments
| Model | YDK112-220-4A | YDK112-220-4A |
| Speed(RPM) | 480/3SPD | 600/3SPD |
| Power(W) | 100 | 180 |
| Voltage(V) | 220 | 220 |
| Frequency(Hz) | 50 | 50 |
| Current(A) | 1.6 | 2.2 |
| Rotation | C.W | C.W |
| Capacitor(uf) | 8 | 10 |
