Cast Iron Three Phase IE3 Motor

FOB Price

USD $38 - $6,800 / Piece

100 Pieces(Min.Order)

Supply Ability 30000 Piece / Pieces per Month
Port FUZHOU
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	OEM	Model Number	YE3
Type	Induction Motor	Frequency	50/60HZ
Output Power	0.18KW-560KW	Protect Feature	Totally Enclosed
Certification	CCC, CE, ROHS
AC Voltage	460 / 480 V	Place of Origin	Fujian, China
Efficiency	IE 3

Product Description

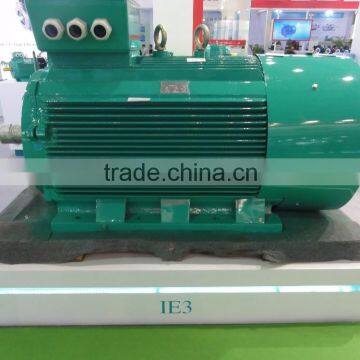

Cast Iron Three Phase IE3 Motor

YE3 series three phase motors are newly designed by our company for European and American market on the basis of YE2 series. The motors are conformity with IEC34-1 and JB/T8680.1-1998 standards, also up to the international advanced level of 90s, it possess sophisticated features such as new construction, good appearance, slight vibration, low noise etc. Its rated power, mounting size are same as YE2 series. The efficiency of the Motor meets IE3. the motors are Class F(Temperature rise B) insulation , IP55. Motors can be equipped with PTC, for frame size 160 and above also can be equipped with re-greasing system. Chinese good bearings and SKF, NSK bearings all available as request.

OPERATING CONDITIONS
Ambient temperature: -15≤θ≤40

Altitude: not exceed 1000m
Rated voltage: 380V or any voltage between 220V-760V.

Rated frequency: 50HZ, 60HZ
Protection Class: IP44, IP54 ,IP55

Insulation Class: B, F, H

Cooling method: ICO141 Duty: S1 (continuous)
Connection: Star connection for up to 3kw, delta connection for 4kw and above.

Remarks: Motors can be equipped with PTC, for frame size 160 and above also can be equipped with re-greasing system. Terminal box on top , right and left are available. Key way can be closed type or opened type. Right side or left are available.

Model	KW	Current	Speed	Eff.%	POWER	Rated T	TST/Tn	Ist/In	Tmax/Tn	dB(A)
Model	KW	In A	RPM		FACTOR	Tn	TST/Tn	Ist/In	Tmax/Tn	dB(A)
Performance Data 380V50Hz
3000 r/min
YE3-80M1-2	0.75	1.7	2870	80.7	0.83	2.5	2.3	7	2.3	62
YE3-80M2-2	1.1	2.4	2875	82.7	0.83	3.7	2.2	7.3	2.3	62
YE3-90S-2	1.5	3.2	2880	84.2	0.84	5	2.2	7.6	2.3	67
YE3-90L-2	2.2	4.6	2880	85.9	0.85	7.3	2.2	7.6	2.3	67
YE3-100L-2	3	6	2880	87.1	0.87	9.9	2.2	7.8	2.3	74
YE3-112M-2	4	7.8	2915	88.1	0.88	13.1	2.2	8.3	2.3	77
YE3-132S1-2	5.5	10.6	2930	89.2	0.88	17.9	2	8.3	2.3	79
YE3-132S2-2	7.5	14.4	2930	90.1	0.88	24.4	2	7.9	2.3	79
YE3-160M1-2	11	20.6	2945	91.2	0.89	35.7	2	8.1	2.3	81
YE3-160M2-2	15	27.9	2945	91.9	0.89	48.6	2	8.1	2.3	81
YE3-160L-2	18.5	34.2	2945	92.4	0.89	60	2	8.2	2.3	81
YE3-180M-2	22	40.5	2950	92.7	0.89	71.2	2	8.2	2.3	83
YE3-200L1-2	30	54.9	2965	93.3	0.89	96.6	2	7.6	2.3	84
YE3-200L2-2	37	67.4	2965	93.7	0.89	119	2	7.6	2.3	84
YE3-225M-2	45	80.8	2965	94	0.9	145	2	7.7	2.3	86
YE3-250M-2	55	98.5	2975	94.3	0.9	177	2	7.7	2.3	89
YE3-280S-2	75	134	2975	94.7	0.9	241	1.8	7.1	2.3	91
YE3-280M-2	90	160	2975	95	0.9	289	1.8	7.1	2.3	91
YE3-315S-2	110	195	2985	95.2	0.9	352	1.8	7.1	2.3	92
YE3-315M-2	132	234	2985	95.4	0.9	422	1.8	7.1	2.3	92
YE3-315L1-2	160	279	2985	95.6	0.91	512	1.8	7.2	2.3	92
YE3-315L2-2	200	349	2985	95.8	0.91	640	1.8	7.2	2.2	92
YE3-355M-2	250	436	2985	95.8	0.91	800	1.6	7.2	2.2	100
YE3-355L-2	315	549	2985	95.8	0.91	1008	1.6	7.2	2.2	104
1500 r/min
YE3-80M1-4	0.55	1.4	1430	80.8	0.75	3.7	-	-	-	-
YE3-80M2-4	0.75	1.8	1430	82.5	0.75	5	2.3	6.6	2.3	56
YE3-90S-4	1.1	2.6	1430	84.1	0.76	7.3	2.3	6.8	2.3	59
YE3-90L-4	1.5	3.5	1430	85.3	0.77	10	2.3	7	2.3	59
YE3-100L1-4	2.2	4.8	1440	86.7	0.81	14.6	2.3	7.6	2.3	64
YE3-100L2-4	3	6.3	1440	87.7	0.82	19.9	2.3	7.6	2.3	64
YE3-112M-4	4	8.4	1455	88.6	0.82	26.3	2.2	7.8	2.3	65
YE3-132S-4	5.5	11.2	1465	89.6	0.83	35.9	2	7.9	2.3	71
YE3-132M-4	7.5	15	1465	90.4	0.84	48.9	2	7.5	2.3	71
YE3-160M-4	11	21.5	1470	91.4	0.85	71.5	2.2	7.7	2.3	73
YE3-160L-4	15	28.8	1470	92.1	0.86	97.4	2.2	7.8	2.3	73
YE3-180M-4	18.5	35.3	1470	92.6	0.86	120	2	7.8	2.3	76
YE3-180L-4	22	41.8	1470	93	0.86	143	2	7.8	2.3	76
YE3-200L-4	30	56.6	1475	93.6	0.86	194	2	7.3	2.3	76
YE3-225S-4	37	69.6	1480	93.9	0.86	239	2	7.4	2.3	78
YE3-225M-4	45	84.4	1480	94.2	0.86	290	2	7.4	2.3	78
YE3-250M-4	55	103	1485	94.6	0.86	354	2.2	7.4	2.3	79
YE3-280S-4	75	136	1490	95	0.88	481	2	6.9	2.3	80
YE3-280M-4	90	163	1490	95.2	0.88	577	2	6.9	2.3	80
YE3-315S-4	110	197	1490	95.4	0.89	705	2	7	2.2	88
YE3-315M-4	132	236	1490	95.6	0.89	846	2	7	2.2	88
YE3-315L1-4	160	285	1490	95.8	0.89	1026	2	7.1	2.2	88
YE3-315L2-4	200	352	1490	96	0.9	1282	2	7.1	2.2	88
YE3-355M-4	250	440	1495	96	0.9	1597	2	7.1	2.2	95
YE3-355L-4	315	554	1495	96	0.9	2012	2	7.1	2.2	102
1000 r/min
YE3-80M1-6	0.37	1.2	910	67	0.68	3.9	-	-	-	-
YE3-80M2-6	0.55	1.6	925	74	0.7	5.7	-	-	-	-
YE3-90S-6	0.75	2	945	78.9	0.71	7.6	2	6	2.1	57
YE3-90L-6	1.1	2.8	950	81	0.73	11.1	2	6	2.1	57
YE3-100L-6	1.5	3.8	950	82.5	0.73	15.1	2	6.5	2.1	61
YE3-112M-6	2.2	5.4	965	84.3	0.74	21.8	2	6.6	2.1	65
YE3-132S-6	3	7.2	975	85.6	0.74	29.4	2	6.8	2.1	69
YE3-132M1-6	4	9.5	975	86.8	0.74	39.2	2	6.8	2.1	69
YE3-132M2-6	5.5	12.7	975	88	0.75	53.9	2	7	2.1	69
YE3-160M-6	7.5	16.2	980	89.1	0.79	73.1	2	7	2.1	73
YE3-160L-6	11	23.1	980	90.3	0.8	107	2	7.2	2.1	73
YE3-180L-6	15	30.9	980	91.2	0.81	146	2	7.3	2.1	73
YE3-200L1-6	18.5	37.8	985	91.7	0.81	179	2	7.3	2.1	73
YE3-200L2-6	22	44.8	985	92.2	0.81	213	2	7.4	2.1	73
YE3-225M-6	30	59.1	985	92.9	0.83	291	2	6.9	2.1	74
YE3-250M-6	37	71.7	985	93.3	0.84	359	2	7.1	2	76
YE3-280S-6	45	85.8	990	93.7	0.85	434	2	7.3	2	78
YE3-280M-6	55	103	990	94.1	0.86	531	2	7.3	2	78
YE3-315S-6	75	143	990	94.6	0.84	723	2	6.6	2	83
YE3-315M-6	90	170	990	94.9	0.85	868	2	6.7	2	83
YE3-315L1-6	110	207	990	95.1	0.85	1061	2	6.7	2	83
YE3-315L2-6	132	244	990	95.4	0.86	1273	2	6.8	2	83
YE3-355M1-6	160	296	995	95.6	0.86	1536	2	6.8	2	85
YE3-355M2-6	200	365	995	95.8	0.87	1920	2	6.8	2	85
YE3-355L-6	250	456	995	95.8	0.87	2399	2	6.8	2	91
