3KW-50KW STC Three Phase 100% Full Power Copper Wire AC Alternator Generator
- 1500 Piece / Pieces per Month
- FOB FUZHOU CHINA
- T/T
You May Like
-
OEM 2KW~700KW STF/ST/STC Brush/Brushless Alternator / Generator /Dynamo Generator
-
2KW-30KW Single Phase 100% Full Power Copper Wire ST Generator
-
2.5-670KVA 100% Full Power Copper Wire Single Phase/Three Phase STF/ST/STC Alternator
-
500W~750W AUTOJTP with 24L Tank Booster stainless Water Pump
-
3HP-5HP DS Aluminum body agriculture Centrifugal pump
-
Electric clean water pump 1.5KW-3KW with high head
Product Details
| Place of Origin | Fujian, China | Brand Name | LT | |
| Model Number | ST STC STF |
Product Description

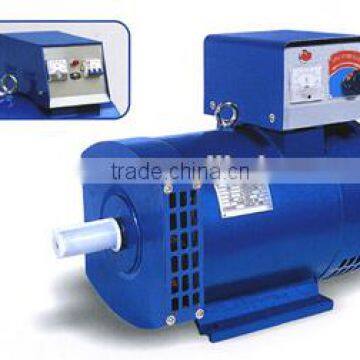

3KW-50KW STC Three Phase 100% Full Power Copper Wire AC Alternator Generator
Alternator Feature:
1. Brushless, 4 poles, rotation magnet AC alternator low rpm
2. IP21-23 enclosure is standard for all industrial alternators.
3. The insulation system is Class H. AC alternator low rpm
4. Simple installation and maintenance, with easy access to terminals, rotating diodes and coupling bolts.
5. Wide range of flange adaptors and single bearing disc coupling.
6. Standard 2/3 pitch windings avoid excessive neutral currents ac alternator low rpm
7. Optional accessories available for easy paralleling with mains or other generators.
8. Optional permanent magnet generator (PMG) system provides constant excitation under all condition.
9. AVR auto voltage regulator, auto exciter, auto adjustment ac alternator low rpm.
10. Voltage is adjusted via potentiometer of AVR, model: SX460, SX440
11. Standard: BS5000, VDE0530, NEMA MG1-32, IEC34, IEC60034, AS1359.
STF BRUSHLESS GENERATOR | ST/STC BRUSH GENERATOR | ||||||||
Model | Output 50Hz | Output 60Hz | MODEL | Power | Packing size | 20"PCS | |||
KVA | KW | KVA | KW | KW | KVA | CM | ( PCS ) | ||
STF164A | 8.1 | 6.5 | 9 | 7.2 | ST SINGLE PHASE 230V/50HZ,1400RPM,COS=1 | ||||
STF164B | 11 | 8.8 | 12.5 | 10 | ST-2KW | 2 | 2.5 | 28×51×44 | 440 |
STF164C | 13.5 | 10.8 | 15 | 12 | ST-3KW | 3 | 3.75 | 28×51×44 | 440 |
STF164D | 16 | 12.8 | 17.8 | 14.2 | ST-5KW | 5 | 6.25 | 35×61×51 | 236 |
STF184E | 22.5 | 18 | 25 | 20 | ST-7.5KW | 7.5 | 9.37 | 35×61×51 | 236 |
STF184F | 27.5 | 22 | 30 | 24 | ST-10KW | 10 | 12.5 | 39×66×56 | 196 |
STF184G | 31.3 | 25 | 34.4 | 27.5 | ST-12KW | 12 | 15 | 39×66×56 | 196 |
STF184H | 37.5 | 30 | 41.3 | 33 | ST-15KW | 15 | 18.7 | 42×71×60 | 126 |
STF184J | 42.5 | 34 | 46.9 | 37.5 | ST-20KW | 20 | 25 | 42×71×60 | 126 |
STF224C | 42.5 | 34 | 46.9 | 37.5 | ST-24KW | 24 | 30 | 42×71×60 | 126 |
STF224D | 50 | 40 | 55 | 44 | ST-30KW | 30 | 37.5 | 81×50×70 | 96 |
STF224E | 60 | 48 | 66.3 | 53 | STC THREE PHASE 400V/50HZ,1400RPM,COS=0.8 | ||||
STF224F | 72.5 | 58 | 81.3 | 65 | STC-3KW | 3 | 3.75 | 28×51×44 | 440 |
STF224G | 85 | 68 | 93.8 | 75 | STC-5KW | 5 | 6.25 | 35×61×51 | 236 |
STF274C | 100 | 80 | 110 | 88 | STC7.5KW | 7.5 | 9.37 | 35×61×51 | 236 |
STF274D | 120 | 96 | 132.5 | 106 | STC-10KW | 10 | 12.5 | 39×66×56 | 196 |
STF274E | 140 | 112 | 156.3 | 125 | STC-12KW | 12 | 15 | 39×66×56 | 196 |
STF274F | 160 | 128 | 175 | 140 | STC-15KW | 15 | 18.7 | 42×71×60 | 126 |
STF274G | 182 | 145.6 | 200 | 160 | STC-20KW | 20 | 25 | 42×71×60 | 126 |
STF274H | 200 | 160 | 220 | 176 | STC-24KW | 24 | 30 | 42×71×60 | 126 |
STF274J | 230 | 184 | 252.5 | 202 | STC-30KW | 30 | 37.5 | 81×50×70 | 96 |
STF274K | 250 | 200 | 275 | 220 | STC-40KW | 40 | 50 | 81×50×70 | 96 |
STF314C | 250 | 200 | 275 | 220 | STC-50KW | 50 | 62.5 | 87×50×70 | 87 |
STF314D | 295 | 236 | 324.5 | 260 | |||||
STF314E | 325 | 260 | 357.5 | 286 | |||||
STF314F | 380 | 304 | 418 | 334 | |||||
STF354C | 450 | 360 | 495 | 396 | |||||
STF354D | 500 | 400 | 550 | 440 | |||||
STF354E | 600 | 480 | 660 | 528 | |||||
STF354F | 670 | 536 | 737 | 590 | |||||
