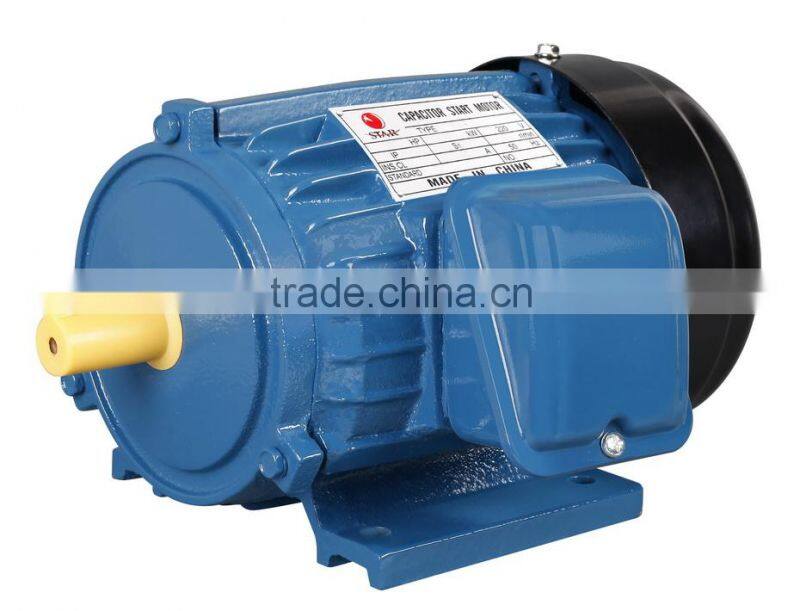

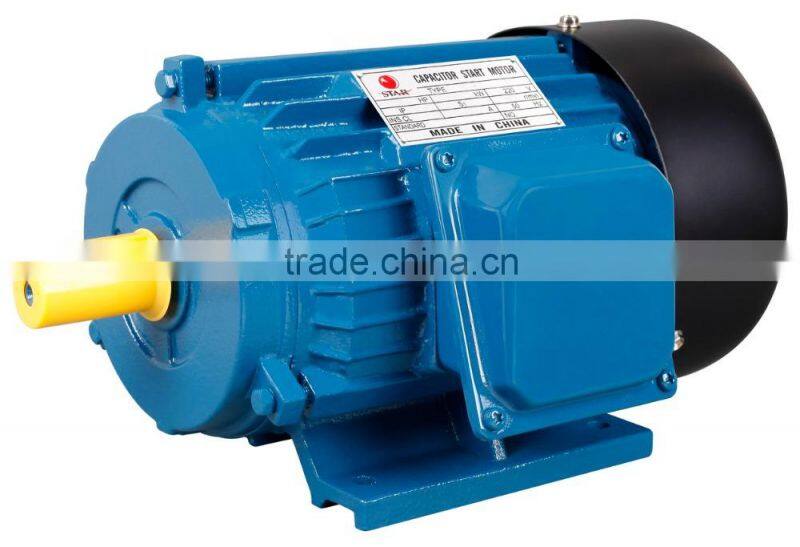

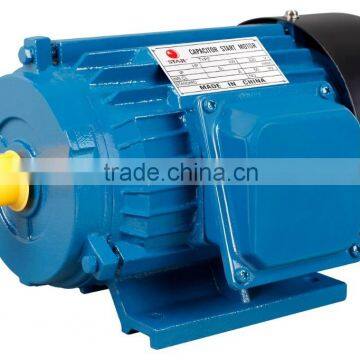

Y SERIES THREE PHASE INDUCTION MOTOR
- FUZHOU
 - T/T

You May Like
-


0.55KW~700KW CE Certificate IE1 Three Phase AC Induction Electric Motor
 -


0.5HP~7.5HP Cast Iron Capacitor Start/Capacitor Run/Dual Capacitor YC/YCL/YL Single Phase Motor
 -


Pump Casting
 -


8L~200L Water Pump Pressure Vessel
 -


19L Horizontal Carbon Steel/Stainless Steel With EPDM Pressure Tank
 -


100L Vertical Stainless Steel With EPDM Pressure Tank

Product Details
| Brand Name | OEM | Model Number | Frame 80-355 | |
| Type | Induction Motor | Frequency | 50HZ | |
| Output Power | 0.18KW-560KW | Protect Feature | Totally Enclosed | |
| Phase | Three-phase | Certification | CCC, CE, ROHS | |
| AC Voltage | 460 / 480 V | Place of Origin | Fujian, China | |
| Efficiency | IE 1 |
Product Description
MOTOR FEATURES
Utilize IP44 enclosure,IP54 and IP55 is available on request
Class B insulation with class F on request
IC0141 cooling
Continuous S1 duty
High start torque
High efficiency
Y connection to 3KW
connection from 4KW to 315 KW
Voltages on request (220/380V,380/660V,220/340V,220/440,440/415V)
Frequency 50 or 60 Hz
Speed can be single double or multiple speed on request
Tropic proof motors supplied on request
Flame proof motors supplied on request
CUSTOMER BENEFITS
Water, dust and vermin resistant
Quiet operation
Corrosion resistant
Very low vibration
Very low power consumption
Superior life
Used in country, city or factory environments
TECHNICAL DATA:(50HZ)
Model | Power  | Full Load  | 75% Load  | 50% Load  | Starting current  | Locked rotor torque  | Max. torque  | Net weight (B3) Kg | ||||||||||
Speed (r.p.m)  | Current  | Eff (%)  | Power Factor cosφ  | Eff (%)  | Power Factor cosφ  | Eff (%)  | Power Factor cosφ  | |||||||||||
Rated current  | Rated torque  | Rated torque  | ||||||||||||||||
HP  | KW  | |||||||||||||||||
380V 50Hz Synchronous Speed 3000r/min(2poles)  | ||||||||||||||||||
Y801-2  | 1  | 0.75  | 2830  | 1.81  | 75  | 0.84  | 73.8  | 0.79  | 71.6  | 0.68  | 6.5  | 2.2  | 2.3  | 17  | ||||
Y802-2  | 1.5  | 1.1  | 2830  | 2.52  | 77  | 0.86  | 76.5  | 0.81  | 74.0  | 0.71  | 7.0  | 2.2  | 2.3  | 18  | ||||
Y90S-2  | 2  | 1.5  | 2840  | 3.44  | 78  | 0.85  | 77.5  | 0.80  | 76.0  | 0.71  | 7.0  | 2.2  | 2.3  | 22  | ||||
Y90L-2  | 3  | 2.2  | 2840  | 4.83  | 80.5  | 0.86  | 79.7  | 0.82  | 77.6  | 0.73  | 7.0  | 2.2  | 2.3  | 26  | ||||
Y100L-2  | 4  | 3.0  | 2870  | 6.39  | 82  | 0.87  | 81.3  | 0.83  | 79.3  | 0.74  | 7.0  | 2.2  | 2.3  | 35  | ||||
Y112M-2  | 5.5  | 4.0  | 2890  | 8.17  | 85.5  | 0.88  | 84.8  | 0.83  | 82.8  | 0.73  | 7.0  | 2.2  | 2.3  | 45  | ||||
Y132S1-2  | 7.5  | 5.5  | 2900  | 11.1  | 85.5  | 0.88  | 84.9  | 0.86  | 83.0  | 0.79  | 7.0  | 2.0  | 2.3  | 67  | ||||
Y132S2-2  | 10  | 7.5  | 2900  | 15.0  | 86.2  | 0.88  | 85.5  | 0.86  | 83.0  | 0.79  | 7.0  | 2.0  | 2.3  | 71  | ||||
Y160M1-2  | 15  | 11  | 2930  | 21.8  | 87.2  | 0.88  | 86.5  | 0.86  | 84.5  | 0.79  | 7.0  | 2.0  | 2.3  | 118  | ||||
Y160M2-2  | 20  | 15  | 2930  | 29.4  | 88.2  | 0.89  | 87.6  | 0.85  | 86.0  | 0.80  | 7.0  | 2.0  | 2.3  | 130  | ||||
Y160L-2  | 25  | 18.5  | 2930  | 35.5  | 89  | 0.89  | 88.5  | 0.86  | 87.2  | 0.81  | 7.0  | 2.0  | 2.2  | 150  | ||||
Y180M-2  | 30  | 22  | 2940  | 42.2  | 89  | 0.89  | 88.1  | 0.87  | 86.7  | 0.81  | 7.0  | 2.0  | 2.2  | 175  | ||||
