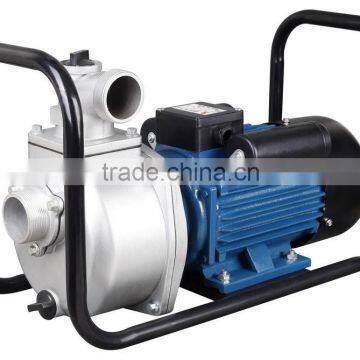

3HP-5HP DS Aluminum Body Agriculture Centrifugal Pump
- FUZHOU
- T/T
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | OEM | |
| Model Number | PX | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, Clean water | Pressure | Low Pressure | |
| Application | Other, Clean water |
Product Description

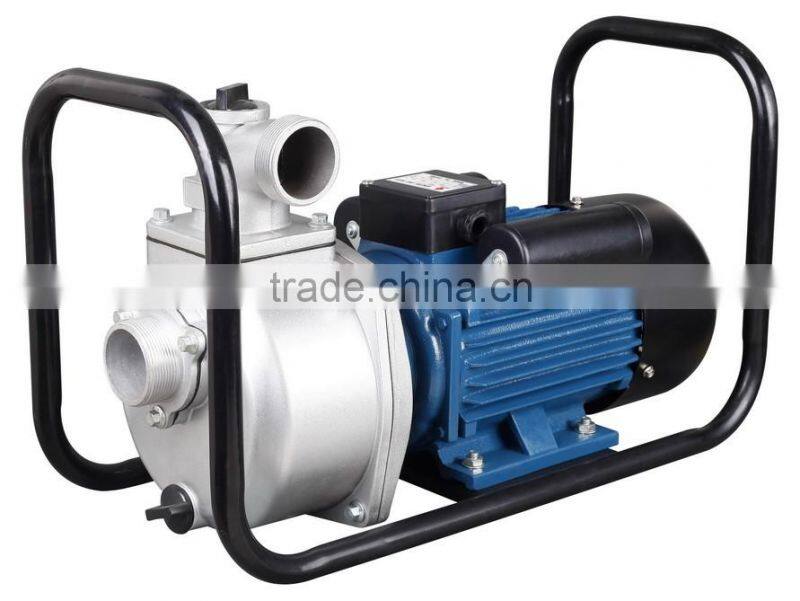

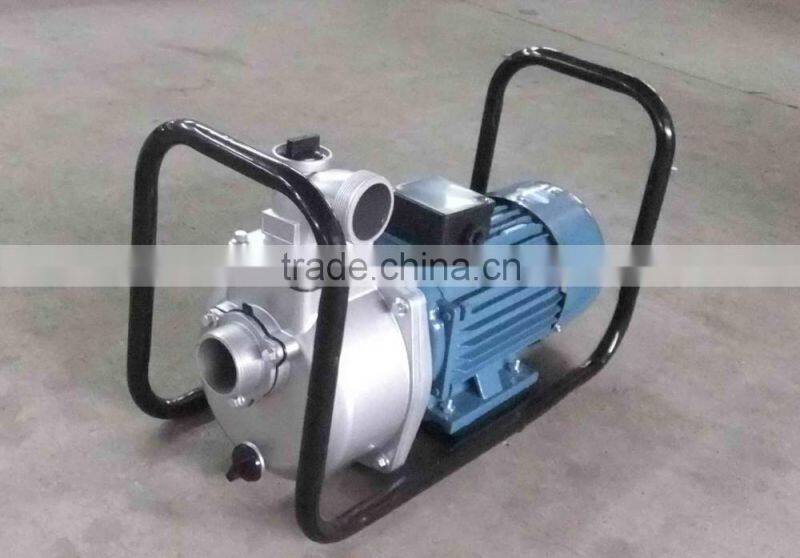

3HP-5HP DS Aluminum body agriculture Centrifugal pump
1. Working conditions:
Max temperature of fluid up to: 80℃
Max ambient temperature up to: 40℃
Max Pressure: 10bar
2. Structural characteristics:
Pump casing: Aluminum body
Impeller: Cast Iron
Motor housing: Cast iron
Mechanical seal: Stainless steel(graphite to ceramic)
Shaft: 45# steel or stainless iron
Bearing: SKF/NTN/NSK/China
Insulation class: B and F
Protection class: IP44 and IP54
3.INSTALLATION AND APPLICATIONS
These pumps are suitable for pumping clean water and fluids which are not chemically aggressive to the pump components.
These pumps should be installed in a covered area. protected against the weather.
| PX Series Centrifugal Pump | |||||||||
| Model | Power | Q.MAX | H.MAX | S.Head | Speed | Pipe Dia | N.W | Packing size | |
| KW | HP | (L/min) | (m) | (m) | (r.p.m) | (Inch) | (kg) | (mm) | |
| DS50 | 2.2 | 3 | 400 | 15 | 9 | 2850 | 2"*2" | 27 | 560*270*350 |
| DS50T | 2.2 | 3 | 420 | 17 | 2"*2" | 27 | 560*270*350 | ||
| DS80 | 4 | 5 | 750 | 18 | 3"*3" | 40 | 560*285*420 | ||
| DS80T | 4 | 5 | 780 | 20 | 3"*3" | 40 | 560*285*420 | ||
