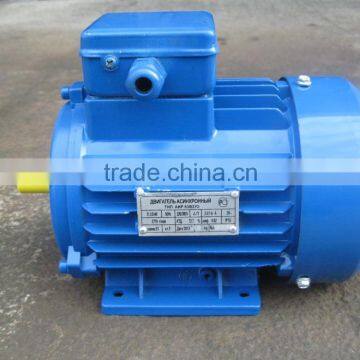

MS Aluminum Three Phase Motor
- FUZHOU CHINA
 - T/T

You May Like
-


YE3 Three Phase High Efficiency Motor
 -


YE3 Cast Iron Three Phase AC Synchronous Induction IE3 Motor
 -


0.75KW~315KW CE Cerficated IE3 Three Phase Induction Motor
 -


CE Certificated Three Phase Induction IE2 Motor
 -


Y2 Cast Iron Frame Housing IE1 IE2 IE3 Three Phase Motor
 -


0.5HP~4HP CE Certificate Capacitor Starting/Capacitor Running Single Phase Motor

Product Details
| Brand Name | OEM | Model Number | Frame 80-355 | |
| Type | Asynchronous Motor | Frequency | 50HZ | |
| Output Power | 0.55KW-200KW | Protect Feature | Totally Enclosed | |
| Phase | Three-phase | Certification | CCC, CE, ROHS | |
| AC Voltage | 460 / 480 V | Place of Origin | Fujian, China | |
| Efficiency | IE 1 |
Product Description

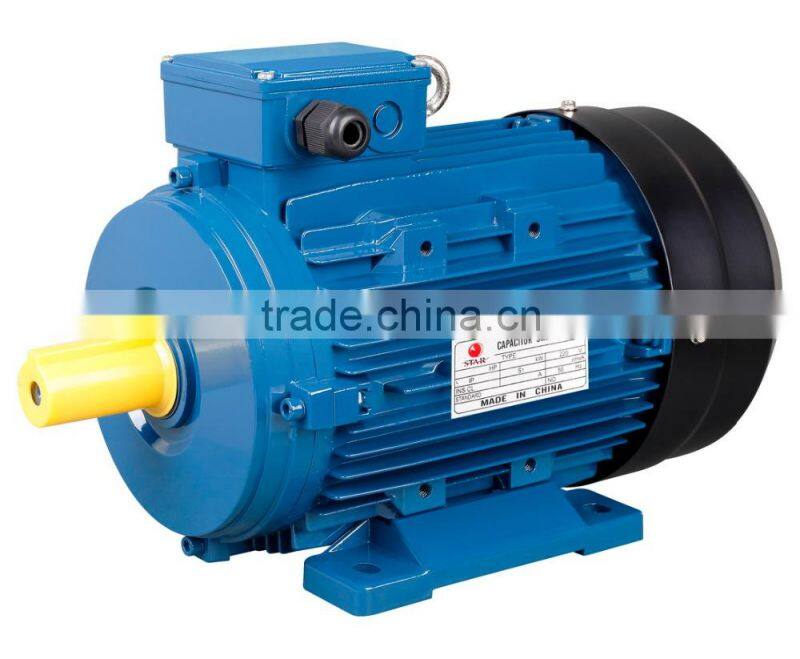

MS Aluminum Three Phase Motor
MOTOR FEATURES  :
Utilize IP55 enclosures,IP54 on request
Multiple feet locations
Aluminium frame,end shields and base
High strength cable gland
Shaft key and protector supplied
Superior paint finish
Motors are made to heavy duty service factors
Can be made with stainless steel shaft
Motors made for continuous S1 duty
Utilize Vacuum impregnated Class B insulation
Class F insulation on request
High performance and efficiency
CUSTOMER BENEFITS:
Water, dust and vermin resistant
Quiet operation
Electricity saving
Easy installation(bolt on feet or brackets as required)
Corrosion resistant
Dependable
Superior life
Reliable in country,city or factory environments
TECHNICAL DATA(50HZ)
| Model | Power | Voltage | Current | Speed | EFF(%) | Power Factor | Locked T | Max.T | Satring A | N.W | |
| HP | KW | V | A | RPM | Rated T | Rated T | Rated A | KGS | |||
| MS561-2 | 0.12 | 0.09 | 230/400 | 0.55/0.32 | 2800 | 62 | 0.68 | 2.3 | 2.4 | 6 | 4.6 |
| MS562-2 | 0.16 | 0.12 | 230/400 | 0.64/0.36 | 2800 | 67 | 0.71 | 2.3 | 2.4 | 6 | 4.8 |
| MS631-2 | 0.25 | 0.18 | 230/400 | 0.87/0.51 | 2800 | 69 | 0.75 | 2.2 | 2.4 | 6 | 5 |
| MS632-2 | 0.34 | 0.25 | 230/400 | 1.12/1.61 | 2800 | 72 | 0.78 | 2.2 | 2.4 | 6 | 5.3 |
| MS711-2 | 0.5 | 0.37 | 230/400 | 1.58/0.91 | 2800 | 73.5 | 0.8 | 2.2 | 2.4 | 6 | 6.5 |
| MS712-2 | 0.75 | 0.55 | 230/400 | 2.23/1.29 | 2800 | 75.5 | 0.82 | 2.2 | 2.4 | 6 | 7 |
| MS801-2 | 1 | 0.75 | 230/400 | 2.90/1.67 | 2800 | 76.5 | 0.85 | 2.2 | 2.4 | 6 | 9.5 |
| MS802-2 | 1.5 | 1.1 | 230/400 | 4.23/2.44 | 2800 | 77 | 0.85 | 2.2 | 2.4 | 6 | 11 |
| MS90S-2 | 2 | 1.5 | 230/400 | 5.75/3.67 | 2800 | 77 | 0.85 | 2.2 | 2.4 | 6 | 14.5 |
| MS90L-2 | 3 | 2.2 | 230/400 | 8.24/4.76 | 2800 | 78 | 0.86 | 2.2 | 2.4 | 6 | 17 |
| MS100L-2 | 4 | 3 | 230/400 | 10.62/6.12 | 2870 | 82 | 0.87 | 2.2 | 2.3 | 7 | 24.5 |
| MS112M-2 | 5.5 | 4 | 400/690 | 7.79/4.47 | 2890 | 85.5 | 0.87 | 2.2 | 2.3 | 7 | 30 |
| MS132S1-2 | 7.5 | 5.5 | 400/690 | 10.45/5.99 | 2900 | 85.5 | 0.88 | 2 | 2.2 | 7 | 42 |
| MS132S2-2 | 10 | 7.5 | 400/690 | 14.25/8.17 | 2900 | 86.2 | 0.88 | 2 | 2.2 | 7 | 50 |
| MS160M1-2 | 15 | 11 | 400/690 | 35.06/20.24 | 2800 | 87 | 0.89 | 2 | 2.3 | 7 | 82 |
| MS160M2-2 | 20 | 15 | 400/690 | 47.50/27.36 | 2800 | 88 | 0.89 | 2 | 2.3 | 7 | 91 |
| MS160L-2 | 25 | 18.5 | 400/690 | 57.00/32.97 | 2800 | 89 | 0.89 | 2 | 2.2 | 7 | 106 |
| MS561-4 | 0.08 | 0.06 | 230/400 | 0.47/0.27 | 1400 | 56 | 0.58 | 2.3 | 2.4 | 6 | 4.6 |
| MS562-4 | 0.12 | 0.09 | 230/400 | 0.64/0.37 | 1400 | 58 | 0.61 | 2.3 | 2.4 | 6 | 4.8 |
| MS631-4 | 0.16 | 0.12 | 230/400 | 0.80/0.46 | 1400 | 60 | 0.63 | 2.2 | 2.4 | 6 | 4.8 |
| MS632-4 | 0.25 | 0.18 | 230/400 | 1.07/0.62 | 1400 | 64 | 0.66 | 2.2 | 2.4 | 6 | 5 |
| MS711-4 | 0.34 | 0.25 | 230/400 | 1.38/0.79 | 1400 | 67 | 0.68 | 2.2 | 2.4 | 6 | 6.3 |
| MS712-4 | 0.5 | 0.37 | 230/400 | 1.86/1.07 | 1400 | 69.5 | 0.72 | 2.2 | 2.4 | 6 | 7 |
| MS801-4 | 0.75 | 0.55 | 230/400 | 2.57/1.49 | 1400 | 73.5 | 0.73 | 2.2 | 2.4 | 6 | 9.5 |
| MS802-4 | 1 | 0.75 | 230/400 | 3.33/1.92 | 1400 | 75.5 | 0.75 | 2.2 | 2.4 | 6 | 11 |
| MS90S-4 | 1.5 | 1.1 | 230/400 | 4.53/2.63 | 1400 | 78 | 0.78 | 2.2 | 2.4 | 6 | 14.5 |
| MS90L-4 | 2 | 1.5 | 230/400 | 6.04/3.49 | 1400 | 79 | 0.79 | 2.2 | 2.4 | 6 | 16 |
| MS100L1-4 | 3 | 2.2 | 230/400 | 8.23/4.78 | 1430 | 81 | 0.82 | 2.2 | 2.3 | 7 | 23 |
| MS100L2-4 | 4 | 3 | 230/400 | 11.19/6.50 | 1430 | 82.5 | 0.81 | 2.2 | 2.3 | 7 | 27 |
| MS112M-4 | 5.5 | 4 | 400/690 | 8.36/4.85 | 1440 | 84.5 | 0.82 | 2.2 | 2.3 | 7 | 33.5 |
| MS132S-4 | 7.5 | 5.5 | 400/690 | 11.40/6.56 | 1440 | 85.5 | 0.84 | 2.2 | 2.2 | 7 | 49.5 |
| MS132M-4 | 10 | 7.5 | 400/690 | 14.25/8.17 | 1440 | 87 | 0.85 | 2.2 | 2.2 | 7 | 57.5 |
| MS160M-4 | 15 | 11 | 400/690 | 36.67/21.19 | 1400 | 88 | 0.84 | 2.2 | 2.3 | 7 | 95 |
| MS160L-4 | 20 | 15 | 400/690 | 49.50/28.60 | 1400 | 88.5 | 0.85 | 2.2 | 2.3 | 7 | 110 |
| MS711-6 | 0.25 | 0.18 | 230/400 | 1.21/0.70 | 900 | 59 | 0.63 | 2 | 2 | 5.5 | 6.1 |
| MS712-6 | 0.34 | 0.25 | 230/400 | 1.56/0.90 | 900 | 63 | 0.64 | 2 | 2 | 5.5 | 6.7 |
| MS801-6 | 0.5 | 0.37 | 230/400 | 2.13/1.20 | 900 | 68 | 0.64 | 1.8 | 2 | 5.5 | 9.2 |
| MS802-6 | 0.75 | 0.55 | 230/400 | 3.00/1.72 | 900 | 71 | 0.65 | 1.8 | 2 | 5.5 | 10.5 |
| MS90S-6 | 1 | 0.75 | 230/400 | 3.83/2.23 | 910 | 72.5 | 0.7 | 2.2 | 2.2 | 5.5 | 14.5 |
| MS90L-6 | 1.5 | 1.1 | 230/400 | 5.26/3.06 | 910 | 73.5 | 0.72 | 2.2 | 2.2 | 5.5 | 17 |
| MS100L-6 | 2 | 1.5 | 230/400 | 6.60/3.83 | 940 | 77.5 | 0.74 | 2.2 | 2.2 | 6 | 22.5 |
| MS112M-6 | 3 | 2.2 | 230/400 | 9.28/5.36 | 940 | 80.5 | 0.74 | 2.2 | 2.2 | 6 | 29 |
| MS132S-6 | 4 | 3 | 230/400 | 11.86/6.89 | 960 | 83 | 0.76 | 2 | 2 | 6.5 | 48 |
| MS132M1-6 | 5.5 | 4 | 400/690 | 8.93/5.13 | 960 | 84 | 0.77 | 2 | 2 | 6.5 | 49 |
| MS132M2-6 | 7.5 | 5.5 | 400/690 | 12.35/7.13 | 960 | 85.3 | 0.78 | 2 | 2 | 6.5 | 57.5 |
| MS160M-6 | 10 | 7.5 | 400/690 | 27.93/16.15 | 940 | 86 | 0.78 | 2 | 2 | 6.5 | 93 |
| MS160L-6 | 15 | 11 | 400/690 | 39.81/22.99 | 940 | 87 | 0.78 | 2 | 2 | 6.5 | 107 |
| MS711-8 | 0.12 | 0.09 | 230/400 | 0.84/0.49 | 700 | 49 | 0.55 | 1.8 | 1.9 | 4.5 | 6 |
| MS712-8 | 0.16 | 0.12 | 230/400 | 1.05/0.61 | 700 | 52 | 0.55 | 1.8 | 1.9 | 4.5 | 6.5 |
| MS801-8 | 0.25 | 0.18 | 230/400 | 1.41/0.82 | 700 | 58 | 0.55 | 1.8 | 1.9 | 4.5 | 9 |
| MS802-8 | 0.34 | 0.25 | 230/400 | 1.81/1.05 | 700 | 62 | 0.56 | 1.8 | 1.9 | 4.5 | 10.3 |
| MS90S-8 | 0.5 | 0.37 | 230/400 | 2.37/1.30 | 700 | 62 | 0.6 | 1.8 | 1.9 | 4.5 | 14.2 |
| MS90L-8 | 0.75 | 0.55 | 230/400 | 3.22/1.90 | 700 | 63 | 0.62 | 1.8 | 1.9 | 4.5 | 16.5 |
| MS100L1-8 | 1 | 0.75 | 230/400 | 4.10/2.30 | 700 | 71 | 0.67 | 1.8 | 2 | 4 | 22.3 |
| MS100L2-8 | 1.5 | 1.1 | 230/400 | 5.60/3.30 | 700 | 73 | 0.69 | 1.8 | 2 | 5 | 24.5 |
| MS112M-8 | 2 | 1.5 | 230/400 | 7.50/4.30 | 710 | 75 | 0.69 | 1.8 | 2 | 5 | 28 |
| MS132S-8 | 3 | 2.2 | 230/400 | 9.57/5.55 | 710 | 85.5 | 0.71 | 2 | 2 | 5.5 | 39 |
| MS132M-8 | 4 | 3 | 230/400 | 12.72/7.37 | 710 | 82 | 0.72 | 2 | 2 | 5.5 | 45 |
| MS160M1-8 | 5.5 | 4 | 400/690 | 16.91/9.79 | 710 | 84 | 0.73 | 2 | 2 | 6 | 88 |
| MS160M2-8 | 7.5 | 5.5 | 400/690 | 22.33/12.92 | 710 | 85 | 0.74 | 2 | 2 | 6 | 96 |
| MS160L-8 | 10 | 7.5 | 400/690 | 29.26/16.91 | 710 | 86 | 0.75 | 2 | 2 | 5.5 | 112 |
