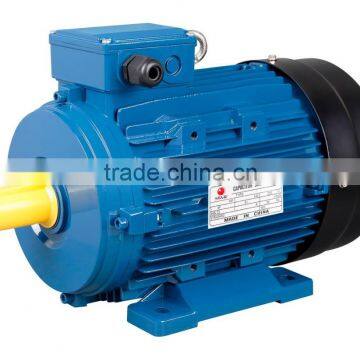

OEM 0.75KW~315KW CE Cerficated Electric Motor

FOB Price

US$ 31 - 2,500 / Piece

100 Pieces(Min. Order)

Port FUZHOU CHINA
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	OEM	Model Number	Frame 80-355
Type	Asynchronous Motor	Frequency	50HZ
Output Power	0.55KW-200KW	Protect Feature	Totally Enclosed
Phase	Three-phase	Certification	CCC, CE, ROHS
AC Voltage	460 / 480 V	Place of Origin	Fujian, China
Efficiency	IE 3

Product Description

OEM 0.75KW~315KW CE Cerficated Electric Motor

MOTOR FEATURES  :
Utilize IP55 enclosures,IP54 on request
Multiple feet locations
Aluminium frame,end shields and base
High strength cable gland
Shaft key and protector supplied
Superior paint finish
Motors are made to heavy duty service factors
Can be made with stainless steel shaft
Motors made for continuous S1 duty
Utilize Vacuum impregnated Class B insulation
Class F insulation on request
High performance and efficiency

CUSTOMER BENEFITS:
Water, dust and vermin resistant
Quiet operation
Electricity saving
Easy installation(bolt on feet or brackets as required)
Corrosion resistant
Dependable
Superior life
Reliable in country,city or factory environments

TECHNICAL DATA(50HZ)

Model	Power		Voltage (V)	Current (A)	Speed (r.p.m)	EFF. (%)	Power factor	Locked rotor torque	Max. torque	Starting current	Net weight (kg)
	Power							Rated torque	Rated torque	Rated current
	HP	KW						Rated torque	Rated torque	Rated current
MS561-2	0.12	0.09	230/400	0.55/0.32	2800	62	0.68	2.3	2.4	6	4.6
MS562-2	0.16	0.12	230/400	0.64/0.36	2800	67	0.71	2.3	2.4	6	4.8
MS631-2	0.25	0.18	230/400	0.87/0.51	2800	69	0.75	2.2	2.4	6	5
MS632-2	0.34	0.25	230/400	1.12/1.61	2800	72	0.78	2.2	2.4	6	5.3
MS711-2	0.5	0.37	230/400	1.58/0.91	2800	73.5	0.80	2.2	2.4	6	6.5
MS712-2	0.75	0.55	230/400	2.23/1.29	2800	75.5	0.82	2.2	2.4	6	7
MS801-2	1	0.75	230/400	2.90/1.67	2800	76.5	0.85	2.2	2.4	6	9.5
MS802-2	1.5	1.1	230/400	4.23/2.44	2800	77	0.85	2.2	2.4	6	11
MS90S-2	2	1.5	230/400	5.75/3.67	2800	77	0.85	2.2	2.4	6	14.5
MS90L-2	3	2.2	230/400	8.24/4.76	2800	78	0.86	2.2	2.4	6	17
MS100L-2	4	3	230/400	10.62/6.12	2870	82	0.87	2.2	2.3	7	24.5
MS112M-2	5.5	4	400/690	7.79/4.47	2890	85.5	0.87	2.2	2.3	7	30
MS132S1-2	7.5	5.5	400/690	10.45/5.99	2900	85.5	0.88	2.0	2.2	7	42
MS132S2-2	10	7.5	400/690	14.25/8.17	2900	86.2	0.88	2.0	2.2	7	50
MS160M1-2	15	11	400/690	35.06/20.24	2800	87	0.89	2.0	2.3	7	82
MS160M2-2	20	15	400/690	47.50/27.36	2800	88	0.89	2.0	2.3	7	91
MS160L-2	25	18.5	400/690	57.00/32.97	2800	89	0.89	2.0	2.2	7	106
