Home > Products > New Products > DTM series Centrifugal pump

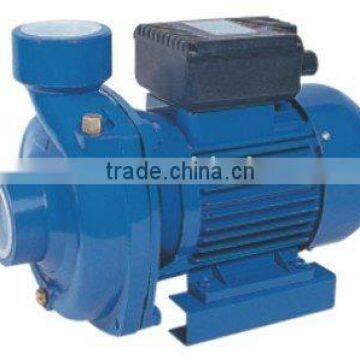

DTM series Centrifugal pump
Negotiable
/ Piece
100 Pieces(Min.Order)
- 5000 Piece / Pieces per Month
- FUZHOU
- T/T
You May Like
-
Deep well automatic pump
-
OEM Cast Iron/Aluminum Housing Three Phase/Single Phase Electric Motor
-
OEM 0.75KW~315KW CE Cerficated Electric Motor
-
0.5HP~4HP CE Certificate Single Phase Water Pump Motor
-
0.5HP~4HP CE Certificate Aluminum Housing Single Phase Induction Motor
-
0.55KW~20KW CE Certificate IE1 Aluminum Housing Three Phase Induction Motor
Product Details
| Place of Origin | Fujian, China | Brand Name | TEECO/STAR | |
| Model Number | DTM-16 | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, Clean water | Pressure | Low Pressure | |
| Application | Other, Clean water |
Product Description
Centrifugal pump
INSTALLATION AND APPLICATIONS
These pumps are suitable for pumping clean water and fluids which are not chemically aggressive to the pump components.
They are extremely reliable, simple to use, quiet and virtually maintenance-free, finding many uses in domestic and civil applications, and in particular the automatic distribution of water from small and medium-size surge tanks, transferring water,Watering gardens, etc.
These pumps should be installed in a covered area. protected against the weather.
They are extremely reliable, simple to use, quiet and virtually maintenance-free, finding many uses in domestic and civil applications, and in particular the automatic distribution of water from small and medium-size surge tanks, transferring water,Watering gardens, etc.
These pumps should be installed in a covered area. protected against the weather.
PERFORMANCE
The range of pumps making up the CP series is particularly varied: however when developing the single units, care was taken to aim at standardizing the following features within the series:
-Ample and stable characteristic curves
-Outputs having good absolute values and tendencially flat curves:
-Flat absorption curves at high delivery rates, preventing motor overloading even during prolonged use:
-Good suction capacities both at low and high delivery rates.
-Ample and stable characteristic curves
-Outputs having good absolute values and tendencially flat curves:
-Flat absorption curves at high delivery rates, preventing motor overloading even during prolonged use:
-Good suction capacities both at low and high delivery rates.
PERFORMANCE RANGE
-Flow rate up to 550 l/min (33 M3/H)
-Dynamic head up to 20m
OPERATING LIMITS
-Suction lift up to 7 m
-Fluid temperature up to + 80°C
-Maximum ambient temperature +40°C
Pump body: Iron cast
Impeller: Brass/P.P.O/ABS
Motor: Cloased,extremely ventilated
Insulation class: B/F
Protection class: IP44/IP54
Mechanical seal: Stainless steel/Carbon-ceramic
Shaft: 45# Steel/Stainless steel
Thermal protector(if required)
