FDP-28/FDP-28Z Horizontal Directional Drilling Rig (Trenchless)

Specifications

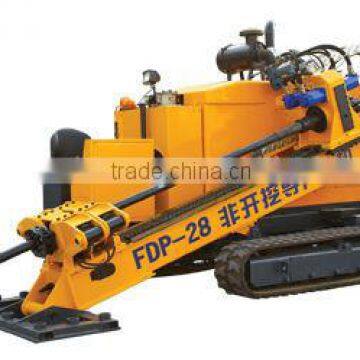

FDP-28/FDP-28Z Horizontal Directional Drilling Rig (Trenchless)

FDP-28/FDP-28Z models are full hydraulic horizontal directional drilling rigs (trenchless), which are self-propelled and integrated with rubber crawler so that the rigs can move in urban area without damaging road surface. The rig is reasonable in structure, reliable in operation and high in efficiency. With people-oriented design concept and being low in center of gravity, they are stable in operation and attractive in appearance. FDP-28Z is the rig installed with automatic drill rod handling device.

Features and Benefits

1. Main components are all from the products with well-known brands at home and abroad.
2. Cummins diesel engine is featured by powerful output, fuel saving and low noise emission. The rig is suitable for operation in urban areas.
3. The application of the advanced control technology in the world makes it consume the lowest power under the condition without workload.
4. With the power head driven by four motors, the rig has high torque with fast and slow gears.
5. The feed and pull of the power head is made by double-motor speed-reducing mechanism. The feed capacity and pull capacity are identical with fast and slow gears.
6. With the mode of remote control, it is safe to move up and down the trailer.
7. Driven hydraulic system and with mechanical gear change, the mud pump can be used under different geological conditions and with construction technique.
8. By using 3-meter drill rod of Φ73mm, the rig is equipped with complete accessories, which can also be made in accordance with the users’ requirements.

FDP-28/FDP/28Z Technical Information
