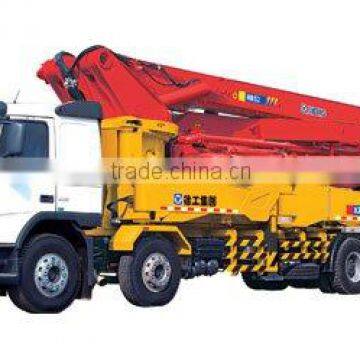

HB52 Concrete Pump

                        Model

 HB52

Technical Parameters

Chassis Model

FM440 104R B

Chassis Drive Model

10×4

Wheel Base

1995+5205+1370+1450 mm

Track

Front Wheel

2028 mm

Back Wheel

1872 mm

Tyre Type

12.00R20

Min. Turning Radius

27.4 m

Brake Distance

≤10m  /  90km/h

Arm Support

Type

5 folded and fully-hydraulically controlled nodal arms

Delivering Pipe Diameter

125   DN

Length of End Hose

4m

The First Nodal Arm

Length

11160mm

Turning Angle

96°

The Second Nodal Arm

Length

9050mm

Turning Angle

180°

The Third Nodal Arm

Length

9010mm

Turning Angle

180°

The Fourth Nodal Arm

Length

9110mm

Turning Angle

180°

The Fifth Nodal Arm

Length

9170mm

Turning Angle

270°

Rotation Angle of Turning Table

364°

Horizontal Length of Arm Support

47.5 m

Max. Vertical Height of Arm Support

51.5 m

Pressure of Hydraulic System

37 MPa

Lubricating Mode

Manual grease lubrication, automatic lubrication by hydraulic oil

Capacity of Hydraulic Oil Tank

750L

Control

Manual/Remote Control

Max. Water Pressure of Water Pump

2 MPa

Capacity of Water Tank

900L

Cooling Mode of Hydraulic Oil

Air Cooling

Cleaning Mode of Concrete Pipe

Water Flushing/Drying Washing

Dead Weight

47×10³kg

Max. Speed

≥  90 km/h

Overall Dimension

Total Length

14665mm

Total Width

2500mm

Total Height

3990mm

Engine

Engine Type

V6 turbo surcharge, intercooling, automatic diesel engine

Engine Model

D13

Output Power

324kW/1400~1800r/min

Max. Torque

2200N.m/1050~1400r/min

Tail Gas Discharge Standard

Euro III

(Environmental Protection Type)

Capacity of Fuel Tank

410L (with oil-water separator)

Discharge Capacity

12.8L

Pumping System

Drive Mode

Hydraulic

Oil Cylinder Inner Diameter X Stroke

@140×2100mm

Delivery Cylinder Inner Diameter X Stroke

@230×2100mm

Valve Form

S-valve

Theoretical Discharge Capacity of Concrete

Low pressure:  138 m3/h

High pressure:   90 m3/h

Theoretical Pumping Pressure

High pressure:   13 Mpa

Low pressure:  8.7 Mpa

Theoretical Pumping Times

High pressure:   27times/min

Low pressure:  18times/min

High Pressure Pumping

Horizontal  1000 m/125A pipe

Vertical   250 m/125A pipe

Hopper Volume

0.6m3

Material Feeding Height

1450m

System Oil Pressure

36MPa

Slump

12cm~ 23 cm

Max. Aggregate Size

40mm

High-low Pressure Switch

Automatic
