Home > Products > Special Vihicles > Rotary Drilling Rig FR622C

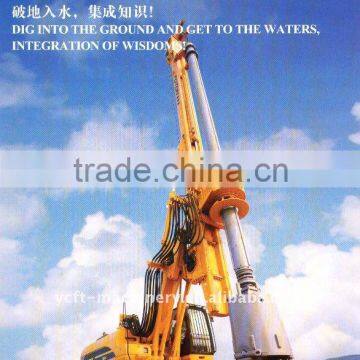

Rotary Drilling Rig FR622C
- QINGDAO
- T/T
You May Like
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Place of Origin | Shandong, China | Brand Name | FL | |
| Model Number | FR622C | Usage | Other |
Product Description
Specifications
High Quality construction machine from China, the good has won a very good reputation from USA, EU and so on.
Parameter Items | Parameter Value |
Maximum output torque | 220KN.m |
Main winch pulling force (Layer-I) | 248KN |
Aux. winch pulling force (Layer-I) | 99KN |
Maximum drilling depth | 60m |
Maximum drilling diameter | 2000 mm |
Weight with standard bar Tons | 68 t |
Drilling speed | 722 rpm |
Mud removal speed | 132 rpm |
Maximum push | 180 KN |
Maximum pull | 200 KN |
Stroke of pressure system | 5000 mm |
Mast sideward | 5° |
Mast forward | 5° |
Engine model | C-9 Electrical fuel turbo supercharge |
Power | 250 KW |
Main rope diameter | 28 mm |
Pulling speed of main winch | 66m/min |
Pulling speed of auxiliary winch | 60 m/min |
Undercarriage overall length | 5740 mm |
Track shoe width | 800 mm |
Overall width in drilling position | 4300 mm |
verall width in transport position | 3000 mm |
Overall height in transport position | 3393 mm |
Model | CAT330C |
