Home > Products > Special Vihicles > FGSL-600 engineering and water-well drilling rig

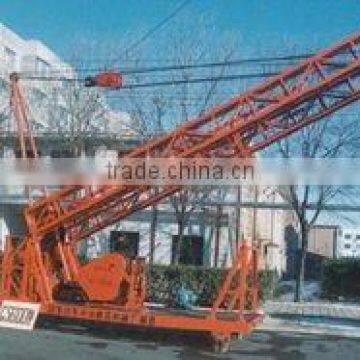

FGSL-600 engineering and water-well drilling rig
Negotiable
/ Set
1 Set(Min.Order)
- 500 Set / Sets per Month
- T/T
You May Like
Product Details
| Condition | New | Type | Other | |
| Place of Origin | Shandong, China | Brand Name | BZ | |
| Model Number | FGSL-600 | Usage | Other |
Product Description
Specifications
FGSL-600 engineering and water-well drilling rig adopts large gantry frame whose up and down is controlled by mechanical system,Technical parameters | ||
Drilling depth (m) | 600 | 80 |
Drilling diameter (mm) | 500 | 2000 |
Inner diameter of turntable (mm) | 500 | |
Turntable rotation speed (r/min) | 37, 57, 85 | |
Rated output torque of turntable (KN.m) | 20 | |
Main hoist lifting capacity (single rope) (KN) | 40 | |
Auxiliary hoist lifting capacity (single rope ) (KN) | 25 | |
Bearing capacity of hydrant (KN) | 300 | |
Matching power of main machine (KW) | 45 | |
Working condition (mm) | 5800×2300×9870 | |
Transport condition (mm) | 9560×2300×2170 | |
The weight of whole machine (kg) | 8830 | |
