Home > Products > Special Vihicles > FDP-68 Horizontal Directional Drilling Rig (Trenchless)

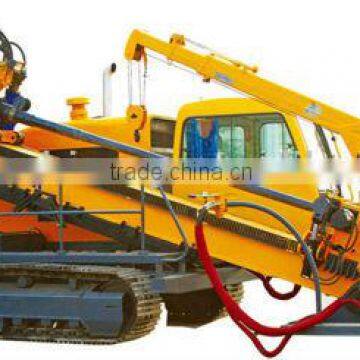

FDP-68 Horizontal Directional Drilling Rig (Trenchless)
- 50 Set / Sets per Month
- shanghai
- T/T
You May Like
-
FDP-40/FDP-40Z Horizontal Directional Drilling Rig (Trenchless)
-
FDP-28/FDP-28Z Horizontal Directional Drilling Rig (Trenchless)
-
FDP-20/FDP-20Z Horizontal Directional Drilling Rig (Trenchless)
-
FDP-15DL Horizontal Directional Drilling Rig (Trenchless)
-
CDZ22 Aerial Platform Fire Truck
-
XZ160A Horizontal Directional Drill
Product Details
| Place of Origin | Jiangsu, China | Brand Name | HUANGHAI | |
| Model Number | FDP-68 |
Product Description
Specifications
Integrated with steel track, motor pinion-rack, feed and operator cabin crane, mud pump and a 2T straight-arm crane
FDP-68 Technical Information
Engine Power | 243KW (Weichai.) 239KW (Cummins) | Mud Pump | ||
Feed/Pull Capacity | 680/680KN | Model | BWF-600 | |
Rated Torque | 27000N.m (45r/min.) 13500N.m (90r/min.) | Max. Flow Rate | 600L/min | |
Main Shaft Rotary Speed | 0-45 r/min 0-90r/min | Max. Pressure | 8Mpa | |
Feed Stroke | 6 m | Weight | 650 Kg | |
Guide Hole Diameter | Φ240mm | Mud-making System (Optional & Specific Parameter Consultable) | ||
Penetration Angle | 8-16° | Engine Model | To be determined | |
Pressure of Hydraulic System | 20Mpa | Mud- Pump | To be determined | |
Propelling Speed | 1.5-3.0 km/h | Mud Tank Capacity | To be determined | |
Structure | Integrated with steel track, motor pinion-rack, feed and operator cabin crane, mud pump and a 2T straight-arm crane | Mud-making Capacity | To be determined | |
Weight | To be determined | |||
Auxiliary Drill Tool System | ||||
Rod Size | Φ102 x 5000mm | |||
Guide Bit | Φ170(Φ230) mm | |||
Reamer | Φ400 Φ500 Φ600 Φ700 Φ800 Φ900 Φ1000 | |||
Overall Dimensions | 9 m x 2.75 m x 2.8 m | Distributor | 80T | |
Weight | 24T | Tracker | Optional | |
