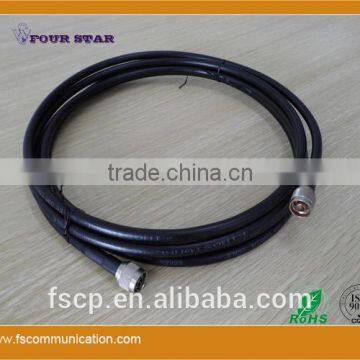

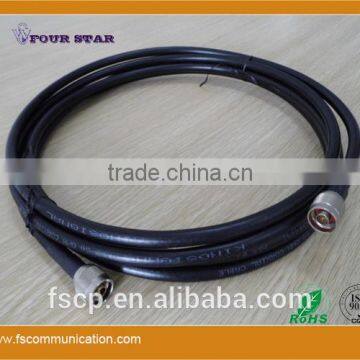

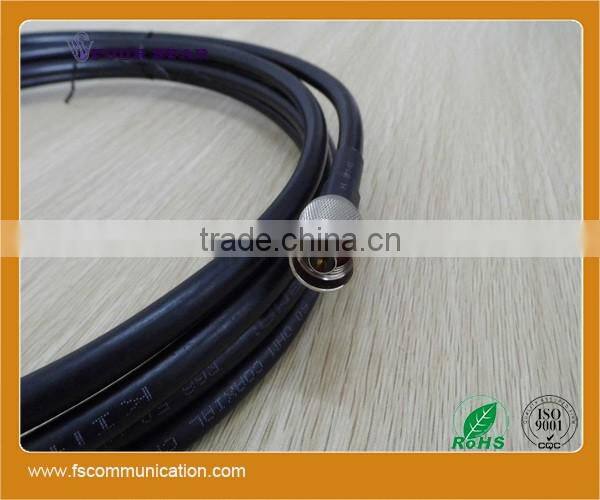

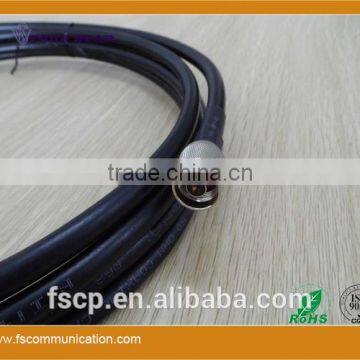

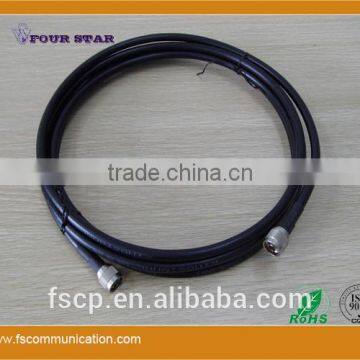

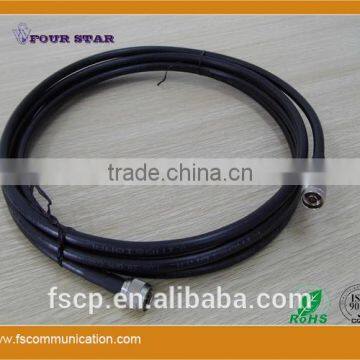

RG8 Cable Assembly with N Male Crimp Connectors
US$ 5.5 - 5.97
/ Piece
100 Pieces(Min. Order)
- Shanghai
- T/T Credit Card PayPal
You May Like
-
RG58 cable assembly with SMA Male Crimp to N Female Crimp 25.4mmSQ Flange Connetcors
-
RG58 cable assembly with SMA RP-male Crimp to N Male Crimp Connetcors
-
RG58 Cable Assembly With TNC Male Crimp Connectors
-
RG58 Cable Assembly with SMA RP-Male to N Female Crimp Connetcors
-
RG58 Cable Assembly With N Male Crimp to SMA Male Crimp Connectors
-
Semi-flexible RG405 Cable Assembly with SMA Male Connector
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Four Star | |
| Model Number | N-C-J8/N-C-J8-5000 | Type | Coaxial | |
| Number of Conductors | 1 |
Product Description
Product Description
| 5000mm RG8 Cable Assembly with N Male Crimp Connectors On Both Endss | ||
| Model No. | N-C-J8/N-C-J8-5000 | |
| Connector Type | A Side: N Connector Male Crimp for RG8 Cable | |
| A Side: N Connector Male Crimp for RG8 Cable | ||
| Cable Type(Name) | RG8 Cable | |
| Cable Length | 5000mm (Customized Length Available) | |
| Connector Interface | IEC 60169-16 | |
| Typical Frequency Range | DC-3GHz | |
| VSWR | ≤1.25@DC-3GHz | |
| Durability | ≥500 cycles | |
| Parts Name | Material | Plating |
| Body | Brass | Ni |
| Insulator | PTFE | — |
| Inner Conductor | Phosphor Bronze | Au |
| Coupling Nut | Brass | Ni |
| Gasket | Silicone Rubber | — |
| Ferrule | Brass | Ni |
| Operating Temperature | _45 ℃-85 ℃ | |
| Weatherproof Rate | IP67 | |
| RoHs (2002/95/EC) | Compliant by exemption | |
