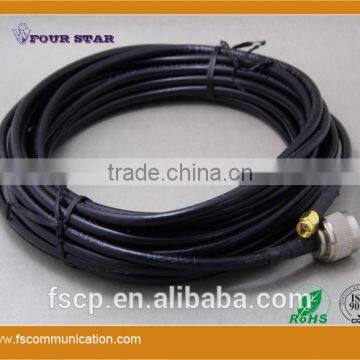

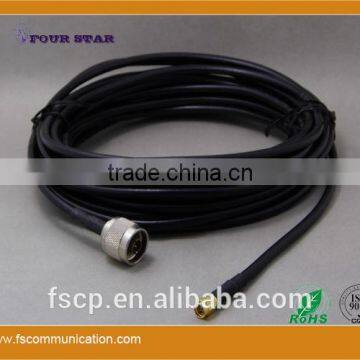

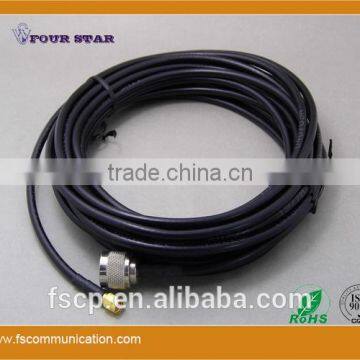

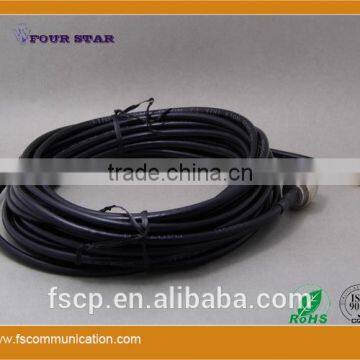

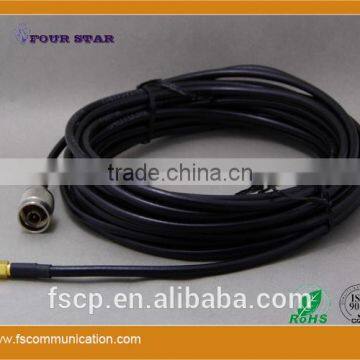

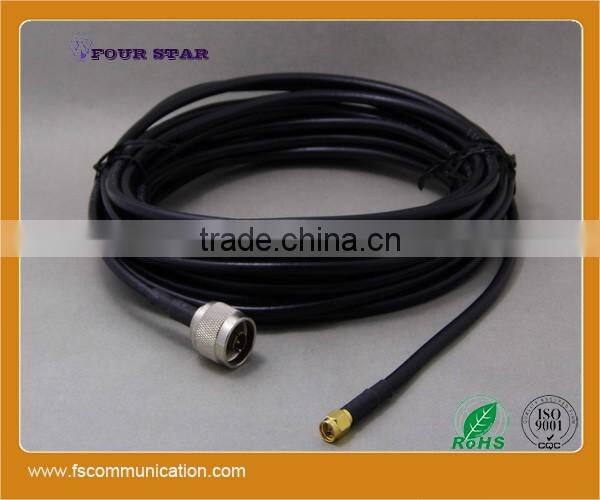

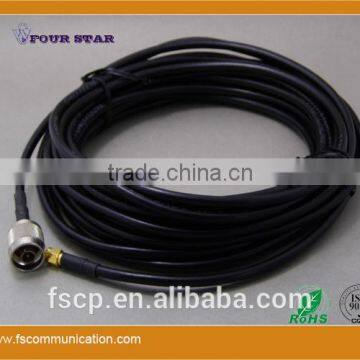

RG223 Cable Assembly With SMA Male Crimp to N Male Crimp Connectors
US$ 2.95 - 3.41
/ Piece
100 Pieces(Min. Order)
- Shanghai
- T/T Credit Card PayPal
You May Like
-
RG223 Cable Assembly With N Male Right Angle Crimp to N Female Bulkhead Crimp Connectors
-
RG214 Cable Assembly With 7/16 Male Crimp Connectors
-
RG214 Cable Assembly With N Male Crimp Connectors
-
RG214 Cable Assembly With N Male Crimp to N Female Crimp Connectors
-
RG214 Coaxial Cable Assemlby With N Connector
-
RG214 Cable Assembly With N Male Clamp to N Male Right Angle Clamp Connectors
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Four Star | |
| Model Number | SMA-C-J223/SMA-C-J223-10000 | Type | Coaxial | |
| Number of Conductors | 1 |
Product Description
Product Description
| 10000mm RG223 Cable Assembly with SMA Male Crimp to N Male Crimp Connectors | ||
| Model No. | SMA-C-J223/SMA-C-J223-10000 | |
| Connector Type | A Side: SMA Connector Male Crimp for RG223 Cable | |
| B Side: N Connector Male Crimp for RG223 Cable | ||
| Cable Type(Name) | RG223 Cable | |
| Cable Length | 10000mm (Customized Length Available) | |
| Connector Interface | IEC 60169-15; IEC 60169-16 | |
| Typical Frequency Range | DC-6GHz | |
| VSWR | ≤1.30@DC-6GHz | |
| Durability | ≥500 cycles | |
| Parts Name | Material | Plating |
| Body | Brass | Au/Ni |
| Insulator | PTFE | — |
| Inner Conductor | Phosphor Bronze | Au |
| Coupling Nut | Brass | Au/Ni |
| Gasket | Silicone Rubber | — |
| Ferrule | Brass | Ni |
| Operating Temperature | _45 ℃-85 ℃ | |
| Weatherproof Rate | IP67 | |
| RoHs (2002/95/EC) | Compliant by exemption | |
