Home > Products > RF Cable Assembly(Jumper Cable) > RG142 Cable Assembly with N Female Crimp to BNC Male Crimp Connectors

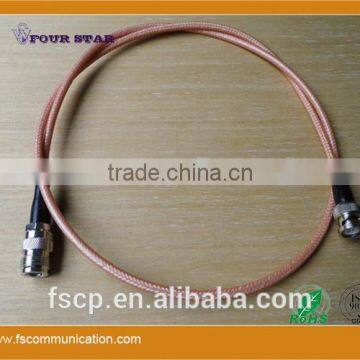

RG142 Cable Assembly with N Female Crimp to BNC Male Crimp Connectors
US$ 2.71 - 3.18
/ Piece
100 Pieces(Min. Order)
- Shanghai
- T/T Credit Card PayPal
You May Like
-
RG142 Cable Assembly with N Male Crimp Connectors
-
RG142 Cable Assembly with SMA Male Right Angle Crimp to N Female Bulkhead Crimp Connectors
-
RG142 Cable Assembly with BNC Male Crimp Connectors
-
SMA male right angle crimp connector for LMR200 cable
-
7/16 Connector Male for 1/2'' Superflexible cable
-
4.3/10 female to n female connector adaptor
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Four Star | |
| Model Number | N-C-K142/BNC-C-J142-500 | Type | Coaxial | |
| Number of Conductors | 1 |
Product Description
Product Description
| 500mm RG142 Cable Assembly with N Female Crimp to BNC Male Crimp Connectors | ||
| Model No. | N-C-K142/BNC-C-J142-500 | |
| Connector Type | A Side: N Connector Female Crimp for RG142 Cable | |
| B Side: BNC Connector Male Crimp for RG142 Cable | ||
| Cable Type(Name) | RG142 Cable | |
| Cable Length | 500mm (Customized Length Available) | |
| Connector Interface | IEC 60169-16;IEC 60169-8 | |
| Typical Frequency Range | DC-8GHz | |
| VSWR | ≤1.30@DC-6GHz | |
| Intermodulation 3rd (PIM3) | — | |
| Durability | ≥500 cycles | |
| Parts Name | Material | Plating |
| Body | Brass | Ni |
| Insulator | PTFE | — |
| Inner Conductor | Phosphor Bronze | Au |
| Coupling Nut | Brass | Ni |
| Gasket | Silicone Rubber | — |
| Ferrule | Brass | Ni |
| Operating Temperature | _45 ℃-85 ℃ | |
| Weatherproof Rate | IP67 | |
| RoHs (2002/95/EC) | Compliant by exemption | |
