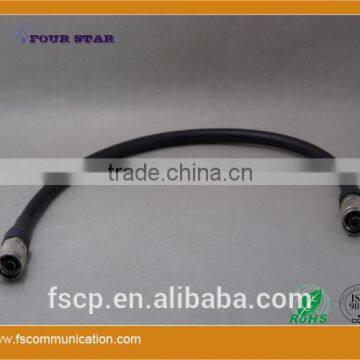

RG214 coaxial cable assemlby with N connector
US$ 3.72 - 4.19
/ Piece
100 Pieces(Min. Order)
- Shanghai
- T/T Credit Card PayPal
You May Like
-
RG214 Cable Assembly with N Male Clamp to N Male Right Angle Clamp Connectors
-
RG214 Cable Assembly N connector plug clamp type
-
RG142 Cable Assembly with N Male Crimp to BNC Male Crimp Connectors
-
RG142 Cable Assembly with N Female Crimp to BNC Male Crimp Connectors
-
RG142 Cable Assembly with N Male Crimp Connectors
-
RG142 Cable Assembly with SMA Male Right Angle Crimp to N Female Bulkhead Crimp Connectors
Product Description
Product Description
| 400mm RG214 Cable Assembly with N Male Clamp Connectors On Both Ends | ||
| Model No. | N-J214/N-J214-400 | |
| Connector Type | A Side: N Connector Male Clamp for RG214 Cable | |
| B Side: N Connector Male Clamp for RG214 Cable | ||
| Cable Type(Name) | RG214 Cable | |
| Cable Length | 400mm (Customized Length Available) | |
| Connector Interface | IEC 60169-16 | |
| Typical Frequency Range | DC-3GHz | |
| VSWR | ≤1.30@DC-3GHz | |
| Intermodulation 3rd (PIM3) | — | |
| Durability | ≥500 cycles | |
| Parts Name | Material | Plating |
| Body | Brass | Ni |
| Insulator | PTFE | — |
| Inner Conductor | Phosphor Bronze | Au |
| Coupling Nut | Brass | Ni |
| Gasket | Silicone Rubber | — |
| Cable Clamp | Brass | Ag |
| Ferrule | — | — |
| Operating Temperature | _45 ℃-85 ℃ | |
| Weatherproof Rate | IP67 | |
| RoHs (2002/95/EC) | Compliant by exemption | |
