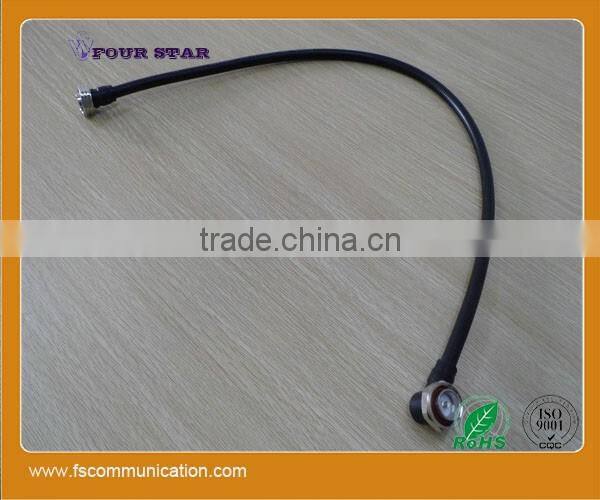

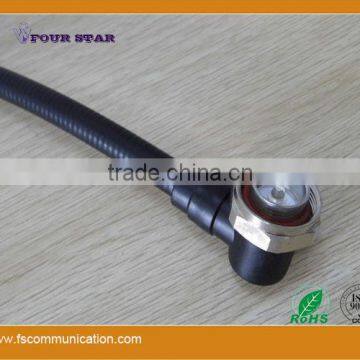

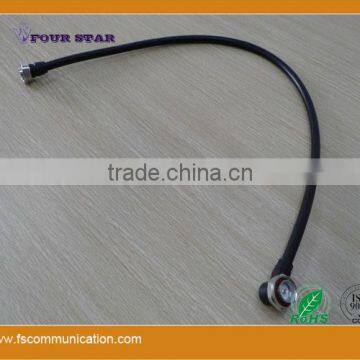

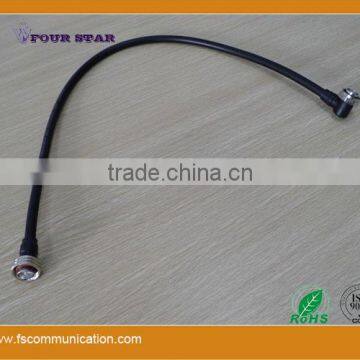

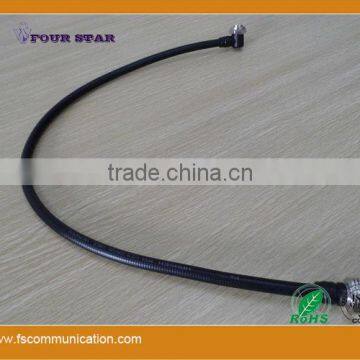

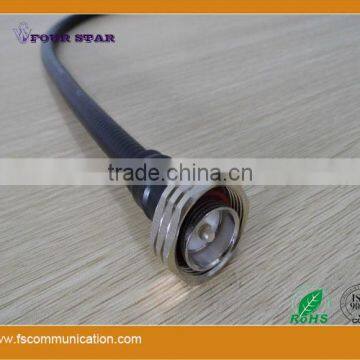

1/2'' Superflexible Cable Assembly With 7/16 Plug to 7/16 Plug Right Angle Connector
US$ 4.81 - 5.58
/ Piece
100 Pieces(Min. Order)
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
1/2'' Superflexible Cable Assembly 7/16 Male to 7/16 Male Right Angle Connector
-
1/2'' Superflexible Cable Assembly 7/16 Male to 7/16 Male Connector
-
RG178 Cable Assembly With FME Male Bulkhead Right Angle Crimp to U.FL Male Crimp Connectors
-
RG178 Cable Assembly With U.FL Plug Connector
-
RG178 Cable Assembly With U.FL Plug Crimp Connrctors
-
RG178 Cable Assembly With U.FL Male to N Female Bulkhead Crimp Connrctors
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Four Star | |
| Model Number | 7/16-J1/2S/7/16-JW1/2S-1000 | Type | Coaxial | |
| Number of Conductors | 1 |
Product Description
Product Description
| 1000mm 1/2'' superflexible cable assembly with 7/16 plug to 7/16 plug right angle connector | ||
| Model No. | 7/16-J1/2S/7/16-JW1/2S-1000 | |
| connector Type(Name) | 7/16 connector male clamp for 1/2'' superflexible cable | |
| 7/16 connector male clamp right angle for 1/2'' superflexible cable | ||
| Cable Length | 1000mm (Customized Length Available) | |
| Connector Interface | IEC 60169-4; IEC 60169-4 | |
| Operating Frequency | DC-3GHz | |
| VSWR | ≤1.10@DC-3GHz | |
| Insertion Loss | ≤0.25dB @3GHz | |
| Intermodulation 3rd (PIM3) | ≤ -157dBc@2×20W | |
| Durability | ≥500 cycles | |
| Parts Name | Material | Plating |
| Body | Brass | Tri-Metal |
| Insulator | PTFE | — |
| Inner Conductor | Phosphor Bronze | Ag |
| Coupling Nut | Brass | Tri-Metal |
| Gasket | Silicone Rubber | — |
| Shrinkable Tube | PET | — |
| Operating Temperature | -45 ℃-+85 ℃ | |
| Weatherproof Rate | IP67 | |
| RoHs (2002/95/EC) | Compliant by exemption | |
