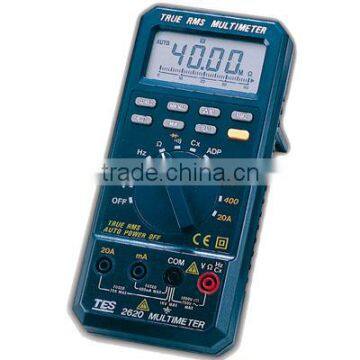

( True RMS Multimeter ) TES Model: TES-2620

FOB Price

US$ 1 - 199 / Piece

1 Piece(Min. Order)

Port SHANGHAI
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Taiwan, China	Brand Name	TES
Model Number	TES-2620	Measuring Current Range	0-20A
Measuring Voltage Range	0-9999	Measuring Resistance Range	2 -200M
Measuring Capacitance Range	9999uF	Measuring Inductance Range	0----1999H
Operating Temperature	-40 to 1372℃	Dimensions	193mm(L)X91mm(W)X53mm(H)

Product Description

Product Features•True RMS on ACV and ACA measurment.
•3 - 3/4 Digital LCD with bar-graph.
•Water - Proof ABS housing.
•Auto - Ranging on Volt , Ohm , Frequency,
and Capacitancd measurements.
•Auto - power off.
•Also provides MAX / MIN recording ; MEM and READ ;
REL and data HOLD mode.
•Ohms , Diode Audible continuity , Capacitance input
Overload protection to 600Vrms.
•20A 600V high energy fuse protection on 20A AC/DC.
•Flip - up stand.

Specifications:

Voltage (AC/DC)

Range	400m/4/40/400/750V(AC)/1000V(DC)
Accuracy	DC - 0.5% rdg + 1dgt AC - 1.2% rdg + 5dgts
Resolution	0.1mV
Overload Protection	DC 1100V & AC 800V

Ohms (Resistance)

Range	400 W /4K W /40K W /400K W /4M W /40M W
Accuracy	0.75% rdg + 3 dgts
Resolution	100m W
Overload Protection	600Vrms (Also for continuity & Diode, ADP)
Max Open Circuit Voltage	0.5VDC

Continuity Beeper

Operation Resistance	below 40 W
Max Open Circuit Voltage	0.5V
Diode: Resolution	1mV
Max Open Circuit Voltage	3V

Current (AC/DC)

Range	4m/40m/400m/20A
Accuracy	DC - 1% rdg + 1dgt AC - 1.5% rdg + 5dgts
Resolution	1 μA
Overload Protection	1.3V

Frequency (Hz)

Range	100Hz/1KHz/10KHz/100KHz/500KHz
Accuracy	0.1% rdg + 2 dgts
Resolution	0.01Hz
Sensitivity	100mV/1V/10V
Sampling Rate	20 times/sec of Bar-graph indication 2 times/sec of digital display
Power Source	2 pcs of "AA" 1.5V Battery Dimensions, Weight: 184(L) x 82(W) x 42(H)mm, Approx. 375g
Accessories	Test leads, Spare fuse 0.5A/250V Battery, Instruction manual

Remark:
Payment: Paypal, western union, credit card, bank transfer.
Warranty:1- 5 years
Defective rate: Less than 0.7%
MOQ: 1PCS
Packaging: Blister&package, gift box, carton
Delivery time: 2-7 days

OEM available
