Home > Products > Measurement & Meter > ( DC/AC CLAMP METER ) TES Model: TES-3092

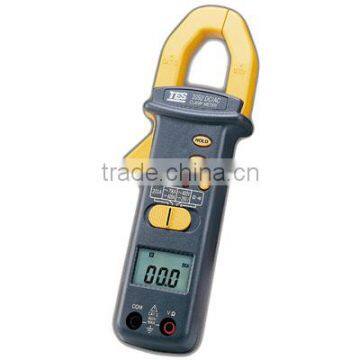

( DC/AC CLAMP METER ) TES Model: TES-3092
- SHANGHAI
- Credit Card PayPal
You May Like
Product Details
| Place of Origin | Taiwan, China | Brand Name | TES | |
| Model Number | TES-3092 | Measuring Current Range | 0-20A | |
| Measuring Voltage Range | 0-9999 | Measuring Resistance Range | 2 -200M | |
| Measuring Capacitance Range | 9999uF | Measuring Inductance Range | 0----1999H | |
| Operating Temperature | -40 to 1372℃ | Dimensions | 193mm(L)X91mm(W)X53mm(H) |
Product Description
DC/AC CLAMP METER TES-3092|TES Electrical Electronic Corp.
DC/AC CLAMP METER
- Compact Size.
- AC/DC Current Measurement (AC 700A / DC 800A).
- 600 V AC & 200V DC, Ohm / Continuity Beeper.
- One Touch DCA Zero.
ELECTRICAL SPECIFICATIONS
q DC Current
Range | Resolution | Accuracy | Overload protection |
200A | 0.1A | ±( 1.5%rdg + 2dgts) | 850Arms |
800A | 1A |
q AC Current
Range | Resolution | Accuracy | Frequency Range | Overload protection |
200A | 0.1A | ±( 2%rdg + 4dgts) | 50 ~ 400Hz | 850Arms |
700A | 1A |
q DC Voltage
Range | Resolution | Accuracy | Input Impedance | Overload protection |
200V | 0.1V | ±(1%rdg + 1dgts) | 1MΩ | 600Vrms |
q AC Voltage
Range | Resolution | Accuracy | Frequency Range | Input Impedance | Overload protection |
600V | 1V | ±(1.5%rdg +4dgts) | 50 ~ 400Hz | 1MΩ | 600Vrms |
q Ohms (Resistance)
Range | Resolution | Accuracy | Overload protection |
2KΩ | 1Ω | ±( 1%rdg+ 2dgts) | 600Vrms |
q Continuity beeper
Range | Sound Level | Max Open Circuit Voltage | Overload protection |
<!--[endif]--> | <30Ω | 3V | 600Vrms |
General Specifications
Numerical Display | 3-1/2 digit liquid crystal display (LCD) maximum reading 1999. |
Over Range Indication | LCD will show an "<!--[endif]--> ". |
Low Battery Indication | LCD will show an “ <!--[endif]--> ”. |
Power Source | One 9V battery (006P or IEC6F22) |
Battery Life | 100hr approx. |
Operating Temperature and Humidity | 0℃ to 50℃ (32℉ to 122℉) below 80%RH. |
Dimensions & Weight | 192(L) x 64(W) x 31(H)mm & Approx. 240 g |
Jaw Opening Diameter | Cables 27 mm |
Accessories | Carrying case, Battery, Instruction manual & Test lead. |
Remark:
Payment: Paypal, western union, credit card, bank transfer.
Warranty:1- 5 years
Defective rate: Less than 0.7%
MOQ: 1PCS
Packaging: Blister&package, gift box, carton
Delivery time: 2-7 days
OEM available
We are professionally manufacturing Power supply, LED Drivers,instrument
and meters and so on. Original quality, high-technic design, competitive price.
Welcome your inquiry!
