Vicimeter VC746A T-RMS NCV LIVE REL ACA DCA ACV DCV OHM Fara Hz Temp Detecting 6000 Digits Multimeter

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Measuring Frequency Range

10MHz

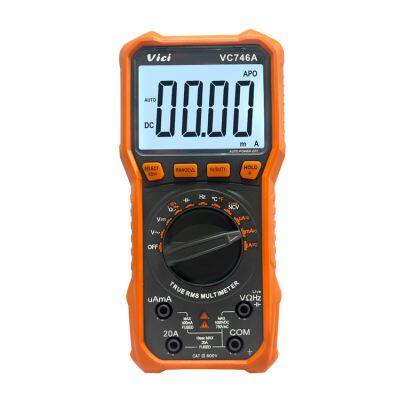

VC746A 5999 Counts Digital Multimeter

Features:

1. New shell panel, streamlined design, comfortable handle;

2. Large HD LCD display makes reading clear;

3. Strong antimagnetic and anti-interferential performance; Full function protection;

4. Auto power off when there is no measurement in 15 minutes;

5. Unit symbol display, easy to read; Lighting function, backlight display;

6. True RMS , NCV, Live wire, Relative value measurements, frequency/duty cycle and data hold function.

Technical Data:

Specific Function:

Model	VC746A
Max. display	6000
True RMS	√
NCV	√
Live test	√
High voltage indication	√
Data hold	√
Function protection	√
Torch function	√
Backlight display	√
Duty cycle	1%~99%
Diode test	0V~3.3V, it displays “OL” if over 3.3V
Continuity alarm	Less than 50Ω, it displays “OL” if over 610Ω
Low battery indicator	Approx. less than 2.4 V
Auto power off	About 15 minutes
Input impedance	10MΩ
Sampling rate	3 times/s
AC frequency response	40Hz-2kHz
Operation method	Manual or Auto range
