( Insulation Tester ) TES Model: TES-1600

FOB Price

US$ 1 - 199 / Piece

1 Piece(Min. Order)

Port SHANGHAI
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Taiwan, China	Brand Name	TES
Model Number	TES-1600	Measuring Current Range	0-20A
Measuring Voltage Range	0-9999	Measuring Resistance Range	2 -200M
Measuring Capacitance Range	9999uF	Measuring Inductance Range	0----1999H
Operating Temperature	-40 to 1372℃	Dimensions	193mm(L)X91mm(W)X53mm(H)

Product Description

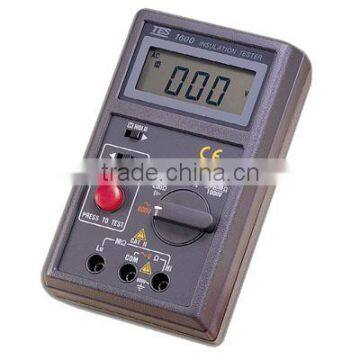

Insulation Tester

Product Features

Digital readout easy to obtain by 0.65” LCD display.
Automatic unit & sign annunciator.
Rotary switch easy for range selection.
Power-lock switch (3 minutes) simplifies the measurement.
Continuity beeper.
Battery operated/Overload Protection.
Safety test leads.
1mA test current.

Insulation Tester TES-1600 |TES Electrical Electronic Corp.

Display	0.65” height LCD. Maximum indication 1999.
Sampling rate	2.5 time/sec
Zero adjustment	Automatic adjustment
Operating temp. & Storage Environment	0℃ to 40℃ < 80% R.H. -10℃ to 60℃< 70% R.H.
Power source	6 “AA” 1.5V batteries
Dimension	165(L)´100(W)´57(H)mm
Weight	500g
Accessories	Test leads, 6pcs battery, carrying case and manual.

MEG OHMS

Range	Resolution	Accuracy	Terminal Voltage	Test Current
200MΩ/250V	0.1MΩ	±(3% of rdg + 5dgts)	250V±10%	1mA at 250KΩ load
200MΩ/500V	0.1MΩ		500V±10%	1mA at 500KΩ load
2000MΩ/1000V	1MΩ		1000V±10%	1mA at 1MΩ load

OHMS

Range	Resolution	Accuracy	Max. open Circuit Voltage	Overload Protection
200Ω	0.1Ω	±(1% of rdg + 2dgts)	3.3V	500Vrms

Continuity Beeper ()

Range	Resolution	Operation Resistance	Max. open Circuit Voltage	Overload Protection
200Ω	0.1Ω	Resistance < 100Ω	3.3V	500Vrms

AC Voltage (40Hz ~ 500Hz)

Range	Resolution	Accuracy	Input Impedance	Overload Protection
600V	1V	±(0.8% of rdg + 3dgts)	10MΩ	750Vrms

Remark:
Payment: Paypal, western union, credit card, bank transfer.
Warranty:1- 5 years
Defective rate: Less than 0.7%
MOQ: 1PCS
Packaging: Blister&package, gift box, carton
Delivery time: 2-7 days

OEM available

We are professionally manufacturing Power supply, LED Drivers,instrument

and meters and so on. Original quality, high-technic design, competitive price.

Welcome your inquiry!
