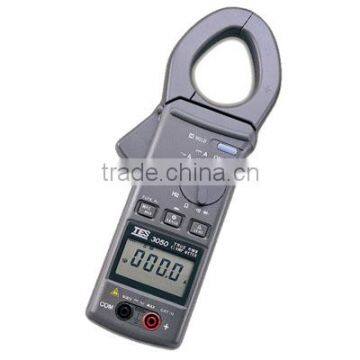

( TRMS AC/DC Clamp Meter ) TES Model: TES-3050

DC Voltage(Autorange & Manual)

DC Current(Autorange & Manual)

AC Voltage(Autorange & Manual)

AC Current(Autoange & Manual)

Frequency ( Hz )(Autorange only for current)

Frequency ( Hz )(Autorange only for voltage)

Resistance ( Ω )(Autorange & Manual)

Audible Continuity

Diode test

B:Peak Hold Measurement

AC Voltage(Autorange & Manual)

AC Current(Autorange & Manual)

 *Peak Detect Acquisitions Time<100ms

SPECIFICATIONS

Numerical Display                :3-3/4 digit liquid crystal  display (LCD) maximum reading 3999.

Range Selection                   :All ranges are selected                    by a single range switch.

  Over Range Indication          :LCD will show a "4" flashing in the  highest position   accompanied    with a continuous beeping.  (except for ranges of 1000A AC/DC,   and 600VDC 600VAC ).

  Low Battery Indication          :The <!--[endif]--> is displayedwhen the battery voltage drops below the operating voltage.

  Sampling Rate                      :20 times/sec ( Barograph )   2 times/sec(Digital Display)

  Power Source                       :one 006p 9V or IEC 6F22   or NEDA 1604 Battery.

  Battery Life                           :100hr approx. (Alkaline)

  Polarity                                  :Automatic polarity " – "   display for negative input.

  Auto power off time              :Approx. 30 minutes

  Operating Temperature         :0℃ to 40℃(32℉ to 104℉)

  and Humidity                            below 80%RH

  Storage Temperature            :-10℃ to 60℃(14℉ to 140℉)

  and Humidity                            below 70%RH

  Dimensions                           :239(L)×66(W)×34(H)mm

  Weight                                   :Approx. 430g
