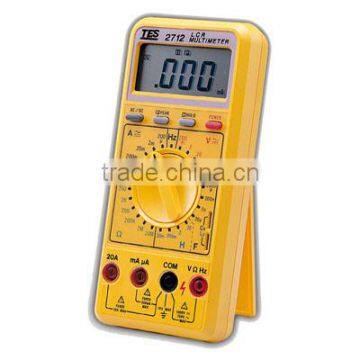

( DIGITAL MULTIMETER ) TES Model: TES-2712

FOB Price

USD $1 - $199 / Piece

1 Piece(Min. Order)

Port SHANGHAI
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Taiwan, China	Brand Name	TES
Model Number	TES-2712	Measuring Current Range	0-20A
Measuring Voltage Range	0-9999	Measuring Resistance Range	2 -200M
Measuring Capacitance Range	9999uF	Measuring Inductance Range	0----1999H
Operating Temperature	-40 to 1372℃	Dimensions	193mm(L)X91mm(W)X53mm(H)

Product Description

DIGITAL MULTIMETER TES-2712|TES Electrical Electronic Corp.

Electrical Specifications :

Accuracies aqre ± (…% of reading + …digits) at 23℃± 5℃ and below 80% RH.

DC Voltage :

Range	Resolution	Accuracy	Input Impedance	Overload Protection
200mV	0.1mV	0.5%+1	10MΩ	600Vrms
2V	1mV			750Vpp
20V	10mV
200V	100mV
600V	1V	0.5%+2

AC Voltage : 50Hz~500Hz

Range	Resolution	Accuracy	Input Impedance	Overload Protection
200mV	0.1mV	1%+5	10MΩ	600Vrms
2V	1mV			750Vpp
20V	10mV
200V	100mV
600V	1V	1.2%+5

DC Current :

Range	Resolution	Accuracy	Burden Voltage	Overload Protection
200uA	0.1uA	1%+1	0.35V	0.5A/250V fast blow fuse & Diode
2mA	1uA
20mA	10uA
200mA	100uA
20A	10mA	1.2%+3	0.8V	20A/380V fast blow fuse 10A Continuity 20A for 30 sec. max.

AC Current : 50Hz~500Hz

Range	Resolution	Accuracy	Burden Voltage	Overload Protection
200uA	0.1uA	1.2%+3	0.35V	0.5A/250V fast blow fuse & Diode
2mA	1uA
20mA	10uA
200mA	100uA
20A	10mA	1.5%+3	0.8V	20A/380V fast blow fuse 10A Continuity 20A for 30 sec. max.

Resistance:

Range	Resolution	Accuracy	Open Circuit Voltage	Overhead protection
200Ω	0.1Ω	0.8%+ 2	3.2V	600Vrms
2KΩ	1Ω		0.5V
20KΩ	10Ω
200KΩ	100Ω
2MΩ	1KΩ
20MΩ	10KΩ	1.5%+ 3

Diode Test: ()

Range	Resolution	Accuracy	Open Circuit Voltage	Text Current	Overload Protection
	1mV	2%+ 2	3.2V	1.0mA	660Vrms

Audible Continuity:

Range	Resolution	Max Open Circuit Voltage	Overload Protection
	<20Ω	3.2V	660Vrms

Frequency ( Hz )( Test Range 10Hz - 10MHz Auto Range )

Range	Resolution	Accuracy	Max. Open Circuit Voltage	Overload Protection
2KHz	1Hz	0.5%+2	1.5Vrms	600Vrms
20KHz	10Hz
200KHz	100Hz
2MHz	1KHz
10MHz	10KHz		3Vrms

Inductance(The accuracy is based on when “Q” value is greater than 1)

Range	Resolution	Accuracy	Test Frequency
20mH	10uH	5% + 10	200Hz
200mH	100uH
2H	1mH
20H	10mH

Capacitance (F)

Range	Resolution	Accuracy	Test Frequency
2000pF	1PF	3% + 10	200Hz
200nF	100PF
2uF	1nF
20uF	10nF

B: Peak Hold Measurement (Capture and retain elusive voltage or variant surge long enough for reading)

DC Voltage :

Range	Resolution	Accuracy	Input Impedance	Overload Protection
200mV	0.1mV	1%+2	10MΩ	600Vrms
2V	1mV			750Vpp
20V	10mV
200V	100mV
600V	1V

AC Voltage : 50Hz~500Hz

Range	Resolution	Accuracy	Input Impedance	Overload Protection
200mV	0.1mV	1.8%+7	10MΩ	600Vrms
2V	1mV			750Vpp
20V	10mV
200V	100mV
600V	1V

DC Current :

Range	Resolution	Accuracy	Burden Voltage	Overload Protection
200uA	0.1uA	1.5%+2	0.35V	0.5A/250V fast blow fuse & Diode
2mA	1uA
20mA	10uA
200mA	100uA
20A	10mA	1.8%+2	0.8V	20A/380V fast blow fuse 10A Continuity 20A for 30 sec. max.

AC Current : 50Hz~500Hz

Range	Resolution	Accuracy	Burden Voltage	Overload Protection
200uA	0.1uA	2%+5	0.35V	0.5A/250V fast blow fuse & Diode
2mA	1uA
20mA	10uA
200mA	100uA
20A	10mA	2.5%+8	0.8V	20A/380V fast blow fuse 10A Continuity 20A for 30 sec. max.

Remark:
Payment: Paypal, western union, credit card, bank transfer.
Warranty:1- 5 years
Defective rate: Less than 0.7%
MOQ: 1PCS
Packaging: Blister&package, gift box, carton
Delivery time: 2-7 days

OEM available

We are professionally manufacturing Power supply, LED Drivers,instrument

and meters and so on. Original quality, high-technic design, competitive price.

Welcome your inquiry!
