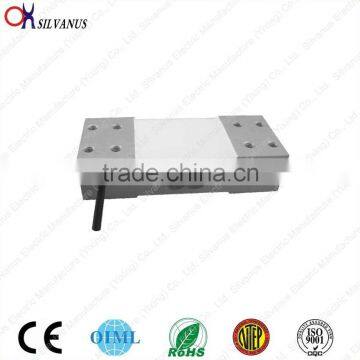

Hot selling Aluminum Single Point 400kg Load Cell (PX12)

FOB Price

USD $15 - $30 / Piece

10 Pieces(Min.Order)

Port SHANGHAI
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	SILVANUS
Model Number	PX12	Usage	Pressure Sensor
Theory	Resistance Sensor	Output	Analog Sensor

Product Description

Single Point Load Cell (PX12)(50~400kg)

PX12 Load Cell Features :

1.Box type single point loading structure.

2.Temperature compensated and four corners adjusted

3.Low profile , small size

4.Suitable for electronic price computing scale , table top scale ,platform scale and other small capacity electronic scales .

PX12 Load Cell Dimensions(mm):

PX12 Load Cell Specifications:

Emax(Max. capacity)	kg	50~400
Sensitivity	mV/V	2.0±0.2
Accuracy class		C2	C3
Maximum number of verification intervals	nmax	2000	3000
Minimum load cell verification interval	Vmin	Emax/5000	Emax/10000
Combined error	%F.S	≤±0.030	≤±0.020
Creep	%F.S/30min	≤±0.024	≤±0.016
Temperature effect on sensitivity	%F.S/10℃	≤±0.17	≤±0.011
Temperature effect on zero	%F.S/10℃	≤±0.023	≤±0.015
Zero balance	%F.S	±1.0
Input resistance	Ω	400±30Ω
Output resistance	Ω	350±3Ω
Service temperature range	℃	-30...+70
Safe overload	%F.S	120
Ultimate overload	%F.S	200
Recommended excitation voltage	V	5…15
Insulation resistance	MΩ/50V	>5000
Protection class		IP65
Load cell material		Aluminum
Cable length	m	3
Cable outer caliber	mm	Φ5
Platform Size	mm	500×500
