Product Details
| Place of Origin | Jiangsu, China | Brand Name | SILVANUS | |
| Model Number | TSB | Usage | Pressure Sensor | |
| Theory | Resistance Sensor | Output | Analog Sensor |
Product Description

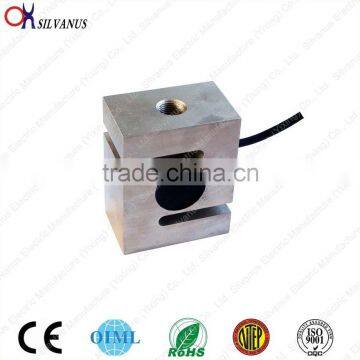

S Type Load Cell (TSB)(2t,3t,5t)
Load Cell (TSB) Features
1.S type load cell , tension and compression
2.Good output symmetry , compact structure , simple to install , full range of capacities
3.Suitable for electromechanical scale , crane scale ,hopper scale and various special scales
Load Cell (TSB) Application
Apply to electronic hook scales and various special weighing apparatus
Load Cell (TSB) Dimensions(mm):
Load Cell (TSB) Specifications
Emax(Max. capacity) | t | 2~5 | |
Sensitivity | mV/V | 2.0±0.002 | |
Accuracy class |
| C2 | C3 |
Maximum number of verification intervals | nmax | 2000 | 3000 |
Minimum load cell verification interval | Vmin | Emax/2000 | Emax/3000 |
Combined error | %F.S | ≤±0.020 | ≤±0.015 |
Creep | %F.S/30min | ≤±0.020 | ≤±0.015 |
Temperature effect on sensitivity | %F.S/10°C | ≤±0.02 | ≤±0.017 |
Temperature effect on zero | %F.S/10°C | ≤±0.02 | ≤±0.017 |
Zero balance | %F.S | ±1.0 | |
Input resistance | Ω | 380±10Ω | |
Output resistance | Ω | 350±3Ω | |
Service temperature range | °C | -30...+70 | |
Safe overload | %F.S | 120 | |
Ultimate overload | %F.S | 200 | |
Recommended excitation voltage | V | 5…15 | |
Insulation resistance | MΩ/50V | >5000 | |
Protection class |
| IP67/IP68 | |
Load cell material |
| Alloy steel | |
Cable length | m | 5 | |
Cable outer caliber | mm | Φ5 | |
Packaging & Delivery
Delivery Usually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.
