Weighing Sensor S Type (100kg~20t) Load Cell (TSE)

FOB Price

USD $20.5 - $50.98 / Piece

50 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

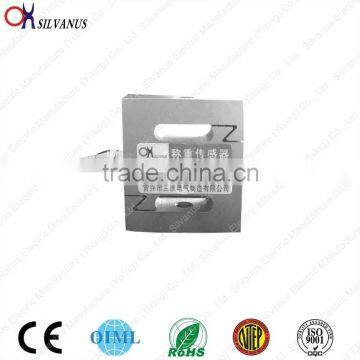

S-type load cell

Dimensions(mm)

Specifications

Emax(Max. capacity)	t	0.1~20
Sensitivity	mV/V	2.0±0.002
Accuracy class		C2	C3
Maximum number of verification intervals	nmax	2000	3000
Minimum load cell verification interval	Vmin	Emax/5000	Emax/10000
Combined error	%F.S	≤±0.030	≤±0.020
Creep	%F.S/30min	≤±0.024	≤±0.016
Temperature effect on sensitivity	%F.S/10°C	≤±0.17	≤±0.011
Temperature effect on zero	%F.S/10°C	≤±0.023	≤±0.015
Zero balance	%F.S	±1.0
Input resistance	Ω	380±20Ω
Output resistance	Ω	352±3Ω
Service temperature range	°C	-30...+70
Safe overload	%F.S	120
Ultimate overload	%F.S	200
Recommended excitation voltage	V	5…15
Insulation resistance	MΩ/50V	>5000
Protection class		IP67/IP68
Load cell material		alloy steel/stainless steel
Cable length	m	3(0.1~1.5t)6(2~20t)
Cable outer caliber	mm	Φ5

Application

Suitable for electromechanical scale,crane scale,hopper scale and various special scales
